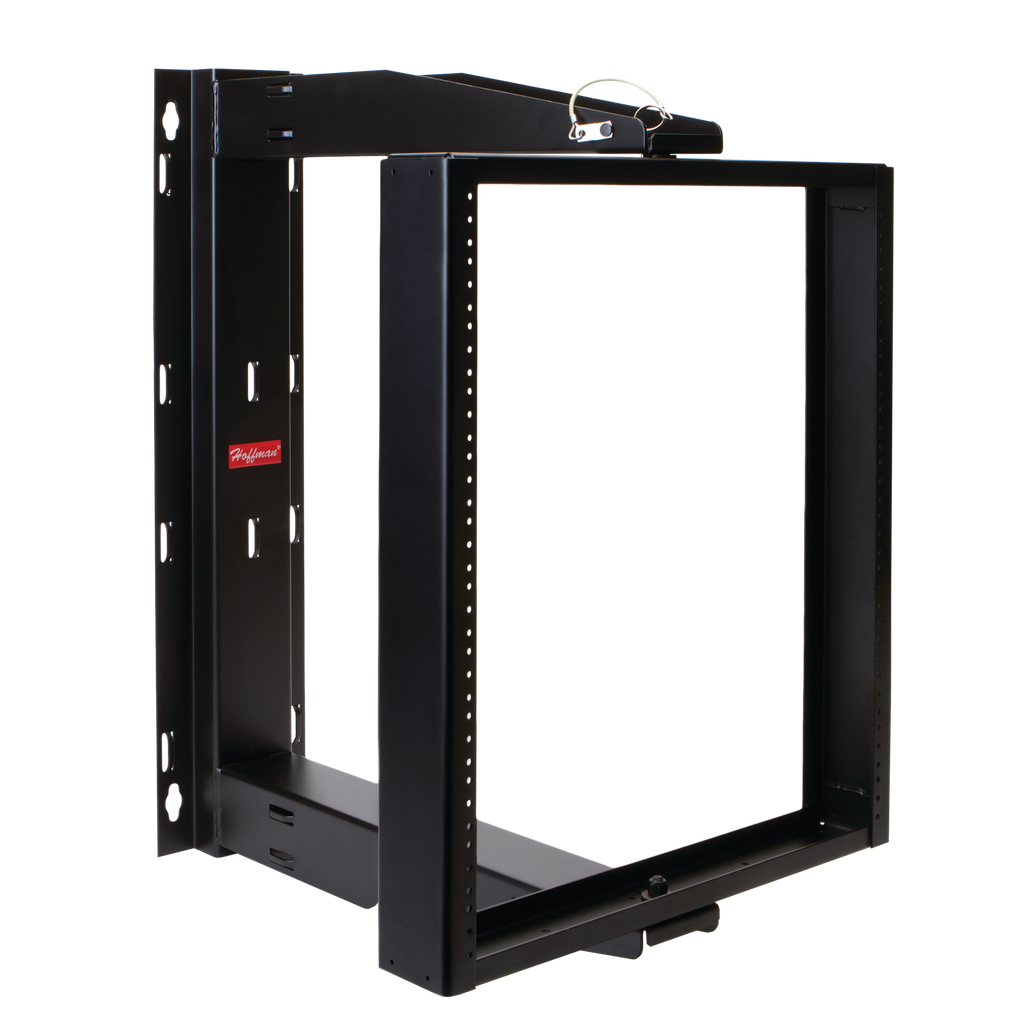

PivotRack is a rotating rack used for wall mounting and securing 19-inch rack equipment. This PivotRack, E19SWMC20U24 item measures 44.00x7.00x24.10 inches with a material of Steel colored Black.

• Features
• Designed to accommodate all standard 19-inch rack equipment
• Easy, single-tool assembly reduces installation time and cost
• Central pivot in two-position mounting provides maximum versatility
• UL double lug ground holes provide easy adherence to local bonding and grounding codes
• Lanyard pin locks rack in increments of 15°, providing a stable position for cable and equipment installs
• Preassembled for fast, time-saving installation
• Temporary mounting bracket allows for rapid, single-person wall installation
• Smart packaging with hand carrying holes allows for easy transportation
• Cable tie down points, sized for up to 1-inch Velcro® straps, provided in horizontal and vertical positions in multiple locations
• Standard 24-inch deep offering to accommodate various applications
• Open design provides for maximum access to cables and equipment
• 19-inch rack fasteners (Phillips head, pilot point, black) 12-24, quantity 20, included
• Wall section made of heavy gauge, formed, cold rolled steel construction
• Welded pivoting rack section made of formed, cold rolled steel
• Tapped 12-24 holes per EIA Universal pattern standards (1/4-5/8- 5/8-1/4)
• Accessory
• EPKIT

• Specifications
• Length : 46.00 inch
• Width : 11.50 inch
• Height : 37.00 inch
• Weight : 44.00 pound
• Product Family : PivotRack
• Material : Mild Steel
• Rack Units : 20
• Modification Services : Yes
• Color : Jet Black
• Color Code : RAL 9005
• Finish : Powder Coated
• Thickness (T) (gauge) : 12
• Thickness (T) (millimetre) : 2.66
• Weight (pound) : 44
• Sub Brand : PivotRack
• Depth : 24.097 in
