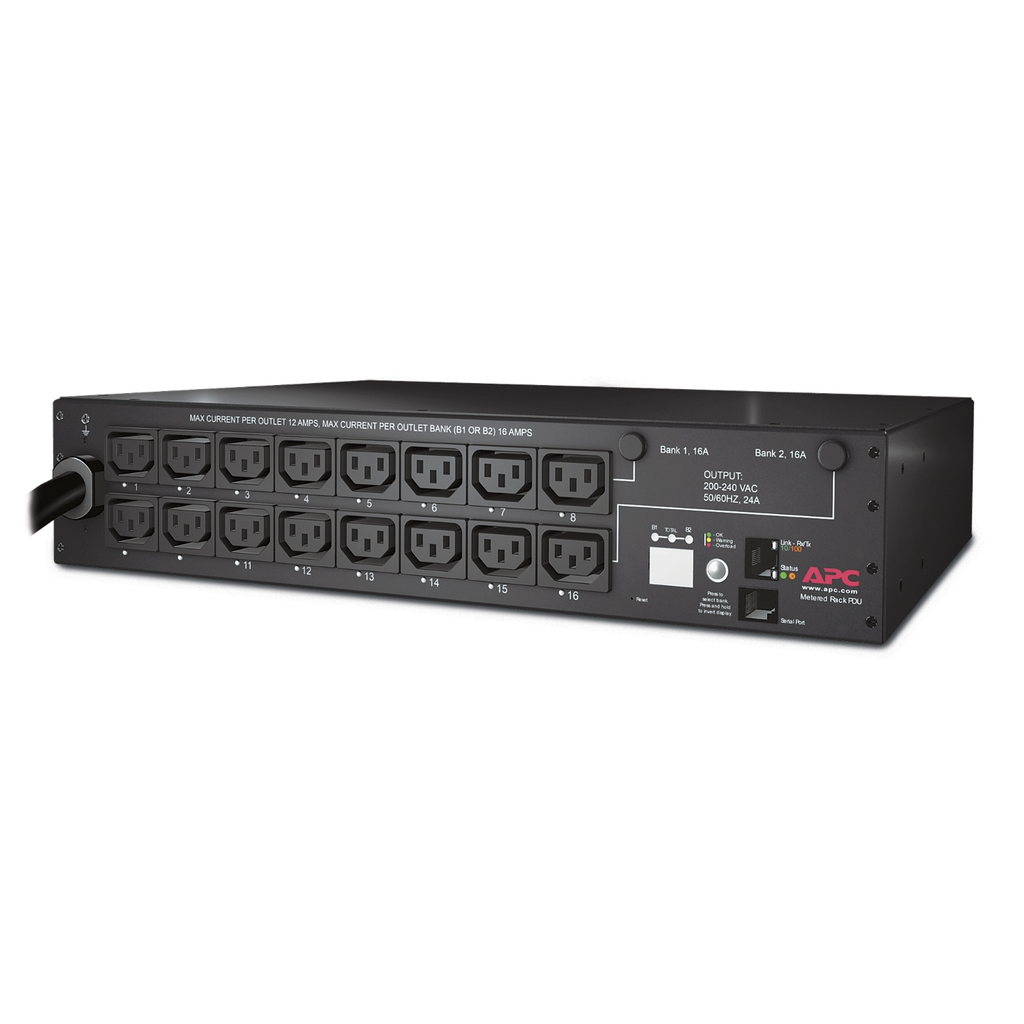

It is a switched rack PDU with a maximum current capacity of 30A and an input voltage of 208V. It includes 16 IEC C13 outlets and a NEMA L6-30P input connection. The PDU has a 2U form factor and a cord length of 12 feet. It supports remote monitoring and user-defined alarms, with outlet-level on/off switching capabilities. The unit is UL Listed and CSA certified, ensuring high safety and performance standards.

• Features
• 1-Year Secure Network Management Card subscription included
• It can handle a maximum current capacity of 30A, suitable for high-power applications
• It includes 16 IEC C13 outlets, offering extensive connectivity
• The 2U form factor helps save rack space and improves cable management
• Allows for remote monitoring and control, enhancing power management capabilities

• Physical Attributes
• Cable Length : 3.65 m
• Complementary Attributes
• Line Rated Current : 24 A
• Maximum Total Current Draw Per Phase : 30 A
• Important Information Attributes
• Persona Type Ids : EUA, OM, PB, SC, VR
• Persona Type Names : Consumer, Original Equipment Manufacturer, Panel Builder, Electrician, IT Channel Partner
• Market Segmentation Id : RESIDENTIAL, COMMERCIAL, INDUSTRIAL
• Market Segmentation : Residential, Commercial, Industrial
• Mounting Location : front, rear
• Provided Equipment : Documentation CD, Installation guide, Rack Mounting brackets
• Certificate Agency : cUL Listed, CSA, Industry Canada, PSE, UL Listed
• Carbon Footprint Of The Distribution Phase A4 : 0.208022988, 0.2 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 3 kg CO2 eq., 3.1991604819
• Carbon Footprint Of The Installation Phase A5 : 1.3066780723, 1 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 46 kg CO2 eq., 46.4141156627
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 1 954 kg CO2 eq., 1953.6637019546
• Local Data Status : Publishable
• Local Publishable Date : 2026-07-29
• Pre Comm Date : 2016-10-03
• Return Indicator : Y
• Device Type : IT Power Distribution - Rack Power Distribution
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : SPIBS
• Average Life Duration : 5 year(s)
• Service Catalog Item : Finished good
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1612033_EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2531
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 2
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Dangerous Goods Code : LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Acceptable Input Voltage : 200-240 V
• Average Percentage Of Recycled Plastic Content : 15 %
• Energy Efficiency Optimized : False
• Input Connection Type : NEMA L6-30P
• Load Capacity : 4992 VA
• Mounting Mode : rack-mounted
• Mounting Position : horizontal
• Number Of Cables : 1
• Number Of Power Socket Outlets : 16 IEC 60320 C13
• Number Of Rack Unit : 2U
• Pdu Type : switched
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : PDU
• Returnability : Yes
• Software Version : v6.2.5-6
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 2 005 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Database Version : 2025-30
• Data Source : extrapolated product
• Height Nominal : 89 mm
• Width Nominal : 445 mm
• Nbr. Of Units In Pkg. : 1
• Customs Code : 8537109160
• Warranty In Months : 24
• Functional Unit Description : The functional unit is the transmission of electricity between electrical/electronic equipment and a power source for a distance of 2.5m for up to 10A of current at 230V AC
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 10
• Recyclability Potential In % : 71
• Environment Attributes Main
• Ambient Air Temperature For Storage : -25-65 °C, -25-65 °C
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 2004.7916791594
• Ambient Air Temperature For Operation : 0-45 °C
• Circularity Profile : ENVEOLI1612033_EN
• Environmental Disclosure : ENVPEP1612033EN
• Eu Rohs Directive : Compliant By Exemption
• Operating Altitude : 0...10000 ft
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Relative Humidity : 0-95 %
• Storage Altitude : 0-50000 ft
• Storage Relative Humidity : 0-95 %
• Pep Code : ENVPEP1612033EN
• Pep Verification Date : 2025-10-25
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Provided Equipment : Documentation CD, Installation guide, Rack Mounting brackets
• Product Or Component Type : PDU
• ETIM
• ETIM 8 : EC002762
• ETIM 9 : EC002762
• ETIM 10 : EC002762
• Output Attributes
• Output Voltage : 208 V
• Contractual Warranty Attributes
• Warranty Period : 2 years repair or replace
• Warranty : 2 years repair or replace
• Input Attributes
• Main Input Voltage : 200 V, 208 V, 230 V
• Input Current Limits : 30 A
• Input Frequency : 50/60 Hz
• Specifications
• Country of Origin : India
• Weight : 8360 g
• Depth : 254 mm
• Batteries & Runtime Attributes
• Removable Battery : Yes
