AMERICAN POWER CONVERSION CORP

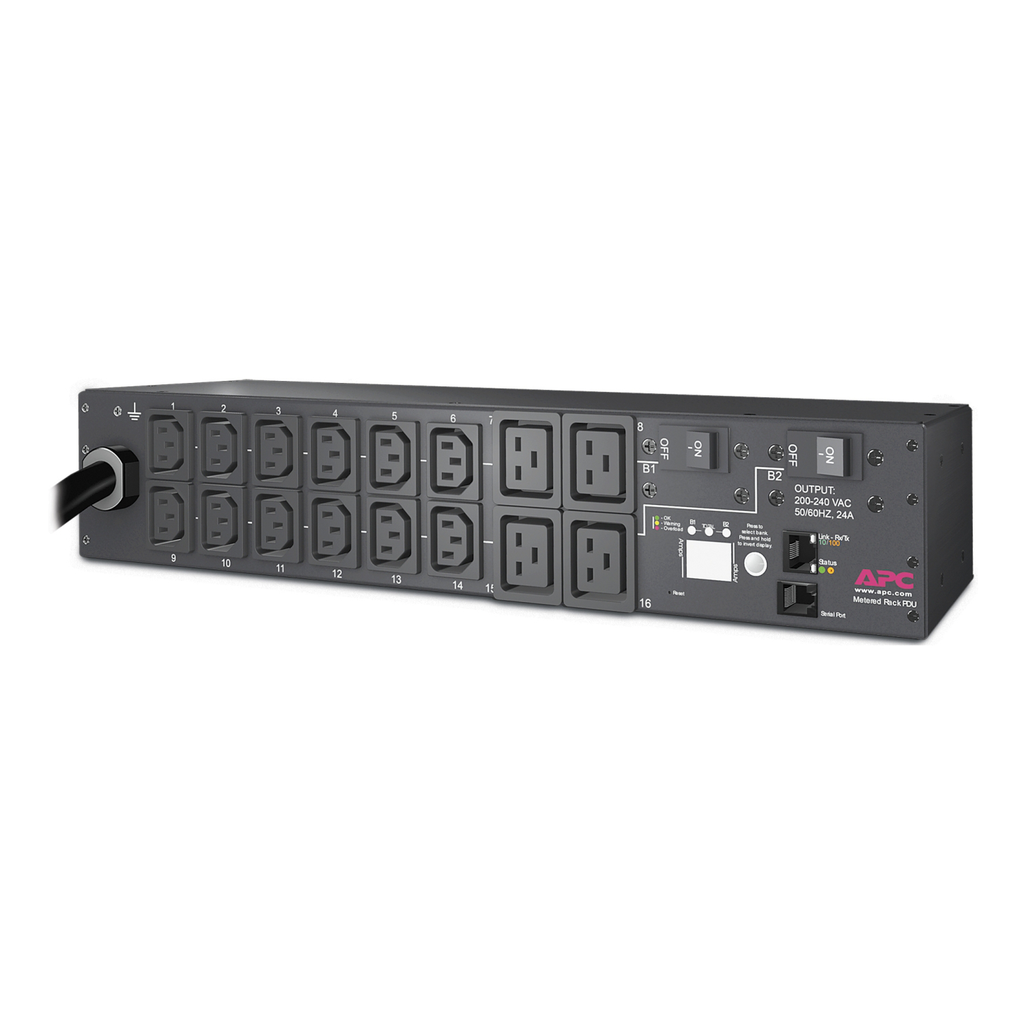

APC NetShelter Rack PDU, Metered, 2U, 5.0kW 208V 30A, (12) C13, (4) C19 outlets

RACK PDU, METERED, 2U 30A 208V

APCAP7811B AP7811B 731304331490
1365.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-APC NetShelter Rack PDU, Metered, 2U, 5.0kW 208V 30A, (12) C13, (4) C19 outlets-1
  • Depth: 11.2 cm, 4.41 in
  • Height: 3.46 in, 8.8 cm
  • Warranty Length: 2 yr
  • Width: 17.48 in, 44.4 cm
APC Metered Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles AP7811B offers real-time remote monitoring and user-defined alarms which helps prevent potential circuit overloads that can cause accidental power loss to critical equipment Easily access, configure, and monitor this metered PDU from remote locations A network management interface provides standards-based management via Web, SNMP, and Command Line Interface This Metered PDU from APC provides (12) IEC C13 and (4) IEC C19 outlets to supply power to rack equipment Active current measurements (amps), User-customizable alarms and warnings and Embedded log memory to record/review/report historic data to local user An environmental monitoring port for external temperature/humidity monitoring is available (sensor sold separately model AP9335T or AP9335TH) Easy to mount this Horizontal PDU in racks or enclosures and occupies 2U of rack Space Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable
QTY
  • Features
  • Specifications
  • Features
    • Resettable circuit breakers — Enables a quick recovery from overload events.
  • Conformance
    • Approvals : cUL Listed, CSA, PSE, UL Listed
  • Sustainability
    • Rohs : Compliant with Exemptions
    • Reach : Free of Substances of Very High Concern above the threshold
    • OptimizedEnergyEfficiency : Energy efficient product
    • TakeBack : Yes
    • MercuryFree : Yes
    • ReachFreeOfSVHC : Yes
  • Weight, Height, Width, Depth
    • Weight : 7.41 lb(US) (3.36 kg)
    • Height : 3.46 in (8.8 cm) in
    • Width : 17.48 in (44.4 cm) in
    • Depth : 4.41 in (11.2 cm) in
  • Physical
    • ProductOrientation : no preference
    • RackHeight : 2U
    • MountPosition : front, rear, horizontal
  • Input
    • CordLength : 12 ft (3.66 m)
    • InputConnectionType : NEMA L6-30P
    • InputVoltage : 200 V, 208 V, 230 V
  • Output
    • NominalOutputVoltage : 208 V
  • Warranty
    • Warranty : 2 years repair or replace
