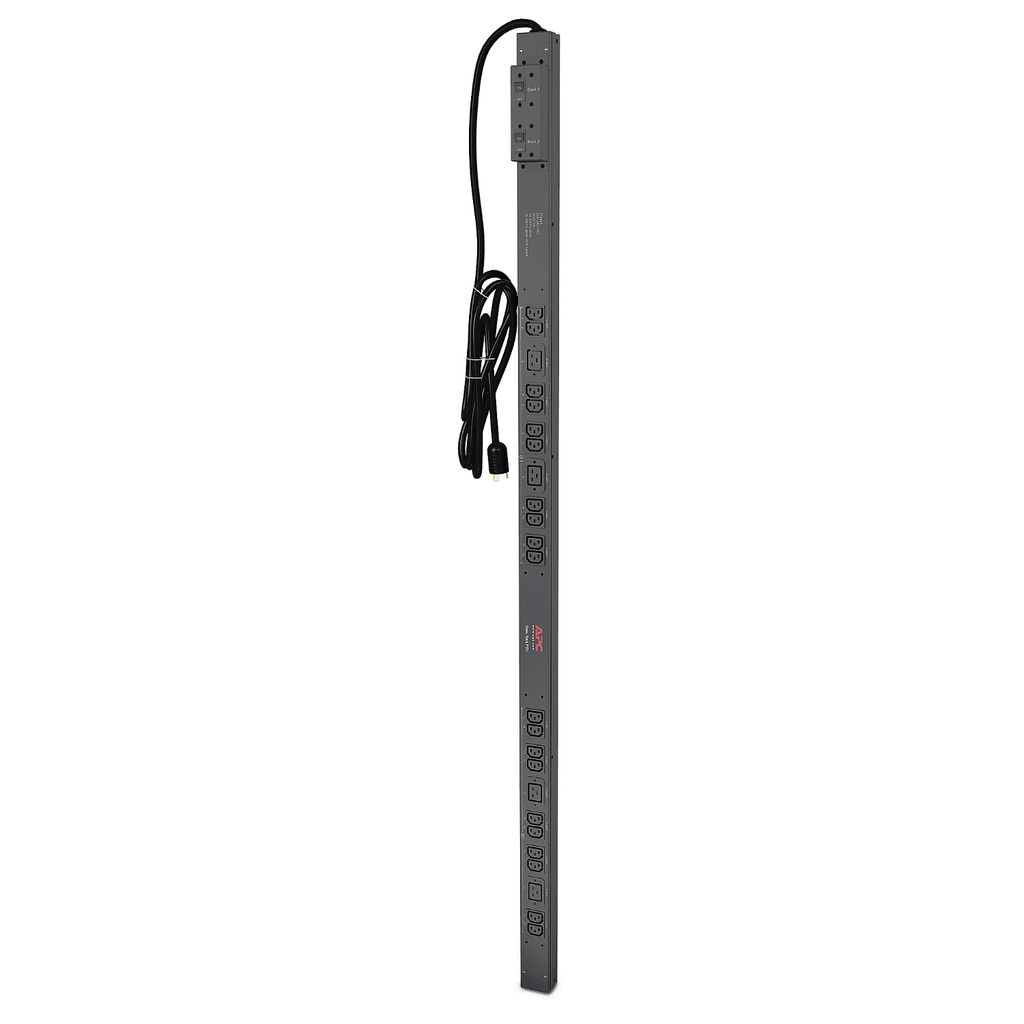

APC Basic Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events. Packaging Includes PDU, Installation guide, Rack Mounting brackets, Toolless Mounting Kit

• Physical Attributes
• Cable Length : 3 m
• Color : Black
• Complementary Attributes
• Line Rated Current : 24 A
• Maximum Total Current Draw Per Phase : 24 A
• Important Information Attributes
• Persona Type Ids : EUA, OM, PB, SC, VR
• Persona Type Names : Consumer, Original Equipment Manufacturer, Panel Builder, Electrician, IT Channel Partner
• Market Segmentation Id : RESIDENTIAL, COMMERCIAL, INDUSTRIAL
• Market Segmentation : Residential, Commercial, Industrial
• Number Of Power Socket Outlets : 20 IEC 60320 C13, 4 IEC 60320 C19
• Provided Equipment : Installation guide, Rack Mounting brackets, Toolless Mounting Kit
• Carbon Footprint Of The Distribution Phase A4 : 0.4669805853, 0.5 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.4 kg CO2 eq., 0.4114616914
• Carbon Footprint Of The Installation Phase A5 : 0, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.5 kg CO2 eq., 0.4669805853
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 3 913 kg CO2 eq., 3912.7796954315
• Certificate Agency : cUL Listed, METI Denan, PSE, UL Listed
• Local Data Status : Publishable
• Local Publishable Date : 2026-03-25
• Pre Comm Date : 2004-09-03
• Return Indicator : Y
• Stocking Flag : Y
• Stock Policy : 2
• Device Type : IT Power Distribution - Rack Power Distribution
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : SPIBS
• Average Life Duration : 5 year(s)
• Service Catalog Item : Finished good
• Weee Scope : In
• Weee Product Category : 4
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1512009_EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1920
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : Yes
• China Rohs Label : Product(s) is obsolete, no information is available
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Energy Efficiency Optimized : False
• Halogen Free Status : Product contains halogen above thresholds
• Input Connection Type : NEMA L6-30P
• Load Capacity : 4992 VA
• Maximum Total Current Draw Per Phase : 24 A
• Mounting Location : side
• Mounting Mode : rack-mounted
• Mounting Position : vertical
• Mounting Preference : no preference
• Number Of Cables : 1
• Number Of Rack Unit : 0U
• Pdu Type : Basic
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : PDU
• Protection Type : circuit breaker
• Returnability : Yes
• Software Version : v6.2.5-6
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 3 937 kg CO2 eq.
• Ups Size : S
• Usb Compatible : No
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Warranty In Months : 24
• Pep Code : ENVPEP1512009EN
• Database Version : 2025-30
• Pep Verification Date : 2025-10-25
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : The functional unit is the transmission of electricity between electrical/electronic equipment and a power source for a distance of 2.5m for up to 10A of current at 230V AC
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime, In Y : 10
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; High voltage; 2020; Asia Pacific, APAC
• Energy Model - Installation [A5] : No energy used
• Energy Model - Use [B6] : Electricity Mix; Low voltage; 2020; Europe, EU-27
• Energy Model - End Of Life [C1-c4] : Global, European and French datasets are used.
• Recyclability Potential, In % : 45
• Offer Owner Code : 190792
• Pn : 1
• Height Nominal : 1619 mm
• Width Nominal : 56 mm
• Environment Attributes Main
• Ambient Air Temperature For Storage : -25-65 °C, -25-65 °C
• Take Back : No
• Reach Free Shvc : Yes
• Halogene Performance : Product contains halogen above thresholds
• Recycled Metal Content At Cr Level : 0 %
• Lead Free : Yes
• Carbon Footprint : 3936.6696350091
• Ambient Air Temperature For Operation : 0-45 °C
• Circularity Profile : ENVEOLI1512009_EN
• Environmental Disclosure : ENVPEP1512009EN
• Eu Rohs Directive : Compliant
• Halogen Content Performance : Product contains halogen above thresholds
• Operating Altitude : 0...10000 ft
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Relative Humidity : 0-95 %
• Storage Altitude : 0-50000 ft
• Storage Relative Humidity : 0-95 %
• Pep Code : ENVPEP1512009EN
• Pep Verification Date : 2025-10-25
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Provided Equipment : Installation guide, Rack Mounting brackets, Toolless Mounting Kit
• Product Or Component Type : PDU
• ETIM
• ETIM 8 : EC002762
• ETIM 9 : EC002762
• Output Attributes
• Output Voltage : 200 V, 208 V
• Contractual Warranty Attributes
• Warranty Period : 2 years repair or replace
• Warranty : 2 years repair or replace
• Input Attributes
• Input Current Limits : 30 A
• Main Input Voltage : 200 V, 208 V, 230 V
• Input Frequency : 50/60 Hz
• Specifications
• Country of Origin : France, India, United States
• Depth : 44 mm
• Overview Attributes
• Presentation : APC Basic Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events. Packaging Includes PDU, Installation guide, Rack Mounting brackets, Toolless Mounting Kit.
