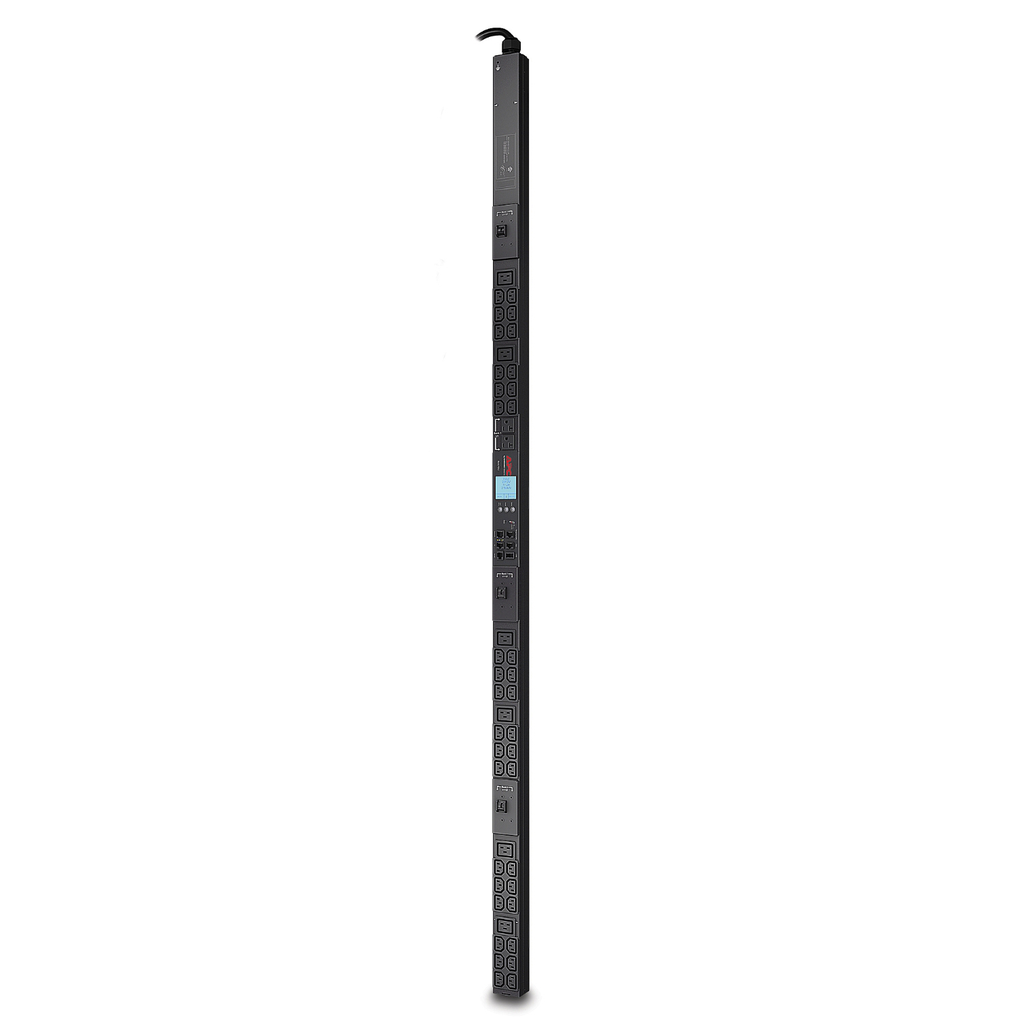

APC NetShelter Metered Rack PDU, 0U, 8.6kW, 208V, 3 phase, 30A, 36 C13, 6 C19 and 2 NEMA 5-20R outlets

RACK PDU 2G METERED 280V 8.6KW

APCAP8865 AP8865 731304277064
1800.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-APC NetShelter Metered Rack PDU, 0U, 8.6kW, 208V, 3 phase, 30A, 36 C13, 6 C19 and 2 NEMA 5-20R outlets-1
  • Depth: 1.81 in, 46 mm
  • Height: 1791 mm, 70.51 in
  • Warranty Length: 24 mth
  • Width: 2.20 in, 56 mm
The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8865 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The 0U PDU includes a NEMA L21-30P input plug with 1 83m (6ft) cord, (2) NEMA 5-20R, (36) IEC 60320 C13 and (6) IEC 60320 C19 output receptacles The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxureTM IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty
QTY
  • Product Description
  • Features
  • Specifications
The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8865 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The 0U PDU includes a NEMA L21-30P input plug with 1 83m (6ft) cord, (2) NEMA 5-20R, (36) IEC 60320 C13 and (6) IEC 60320 C19 output receptacles The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxureTM IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty
  • Features
    • Ideal for colocation, large data centers or distributed IT sites
    • Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
    • Real-time remote monitoring of connected load through EcoStruxureTM IT and other platforms
    • Stay on top by defining alarm thresholds in order to avoid overloaded circuits
    • 1-Year Secure Network Management Card subscription included
    • Interactive LCD display
    • Active power measurements (volts, amps, kW, kWh)
    • Embedded log memory
    • 5.9' power cord, 2-year APC warranty
    • Zero U toolless installation
  • What's in the box?
    • Installation guide
    • Rack Mounting brackets
    • Serial configuration cable
    • Safety guide
  • Conformance
    • Rohs : Compliant By Exemption
    • Reach : Free of Substances of Very High Concern above the threshold
    • Reach Compliance Date : 2025-12-10
    • Removable Battery : YES
  • Sustainability
    • TakeBack : No
    • Carbon Footprint : 6415.6465520952
    • Halogen Content Performance : Product contains halogen above thresholds
    • Recycled metal content in percentage : 0 %
    • Packaging with recycled cardboard : Yes
    • Packaging without single use plastic : No
    • Product contributes saved avoided emissions : No
  • Weight, Height, Width, Depth
    • Height : 70.51 in (1791 mm)
    • Width : 2.20 in (56 mm)
    • Depth : 1.81 in (46 mm)
    • Weight : 16.63 lb(US) (7.56 kg)
  • Logistical informations
    • Customs number : 8537109160
  • Physical
    • ProductOrientation : no preference
    • RackHeight : 0U
    • Color : Black
    • MountPosition : side, vertical
  • Input
    • CordLength : 5.97 ft (1.82 m)
    • InputConnectionType : NEMA L21-30P
    • InputVoltage : 208 V 3 phase
  • Specifications
    • Country of Origin : India
  • Warranty
    • Warranty : Core product: 24 month(s)
