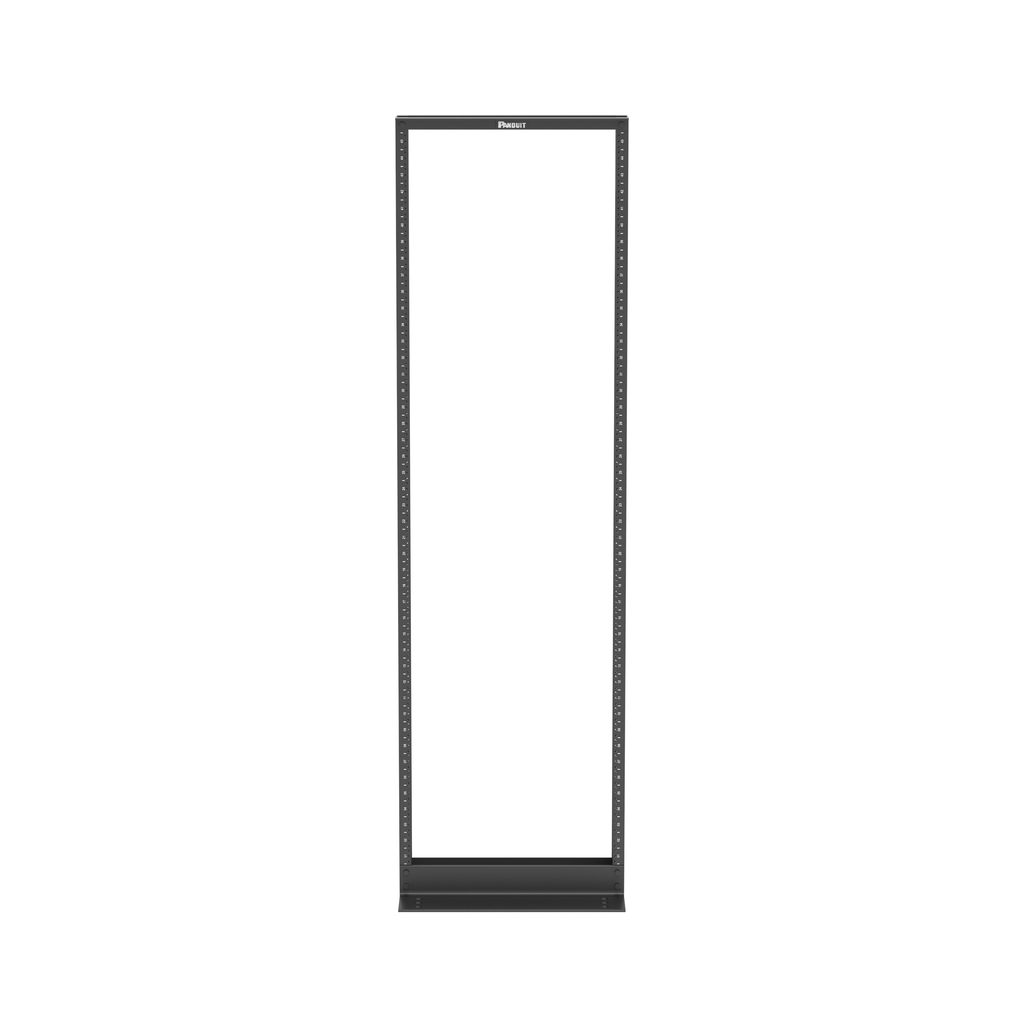

The 2-Post rack provides a reliable foundation for mounting telecommunications and data center equipment. The 84 inch tall rack accepts 19-inch wide equipment with mounting rails that have #12-24 EIA universal mounting hole spacing, and printed numbering from the bottom up. A range of cable managers and accessories work with the rack. The 3-inch deep channel rack is UL listed for 1,000 pounds and is made of extruded aluminum. The rack is 45 RU and black.

• Specifications
• Product Segment : EDI-ENT
• Note : Rack channel depth is 3" (76mm)
• Material : Aluminum
• Mounting Bolt Method : Threaded
• Overall Depth (In.) : 15
• Overall Depth (mm) : 381
• Overall Width (mm) : 516
• Overall Width (In.) : 20.3
• Overall Height (mm) : 2134
• Overall Height (In.) : 84
• Channel Depth (mm) : 76.2
• Channel Depth (In.) : 3
• Number of Rack Units : 45
• Mounting Hole Thread Size : #12-24
• Rail Number Direction : Bottom Up
• Static Load Capacity (kg) : 454
• Static Load Capacity (lb) : 1000
• Color : Black
• Standards Met : UL 2416, EIA/ECA-310-E, RoHS Compliant
• Includes : (12) 3/8-16 x 1" hex head cap screw, (12) 3/8-16 hex nuts, (24) 3/8" paint piercing grounding washer, (1) tube of anti-oxidizing paste, (24) 12-24 x .5" slotted pan head steel screws
• Product Type : 2-Post Rack
• Finish/Coating : Powder-Coated
• Packaging Details
• UPC : 07498332051
• GTIN Package : 00074983320516
• Standard Package Volume Ft3 : 1.4891
• Standard Package Weight Pounds : 28.0000
• Std Package Height In : 4.4
• Std Package Height MM : 111.76
• Std Package Length In : 86
• Std Package Length MM : 2184.4
• Std Package Width In : 6.8
• Std Package Width MM : 172.72
• Std. Pkg. UOM : Piece
• UOM EA PK : EA
• Std. Pkg. Qty. : 1
• Min. Order UOM : Piece
• Country of Origin 2Digit : US,CN
• RoHS Compliant : Compliant
• EAN : 00074983320516
• REACH Status : N
• ARRA Compliant : Y
• Mercury Content Indicator : N
• Hazardous Material Flag : N
• Min Order Qty : 1.0000
• Pallet Quantity : 42
• Pallet Weight : 1,176.0000
