AMERICAN POWER CONVERSION CORP

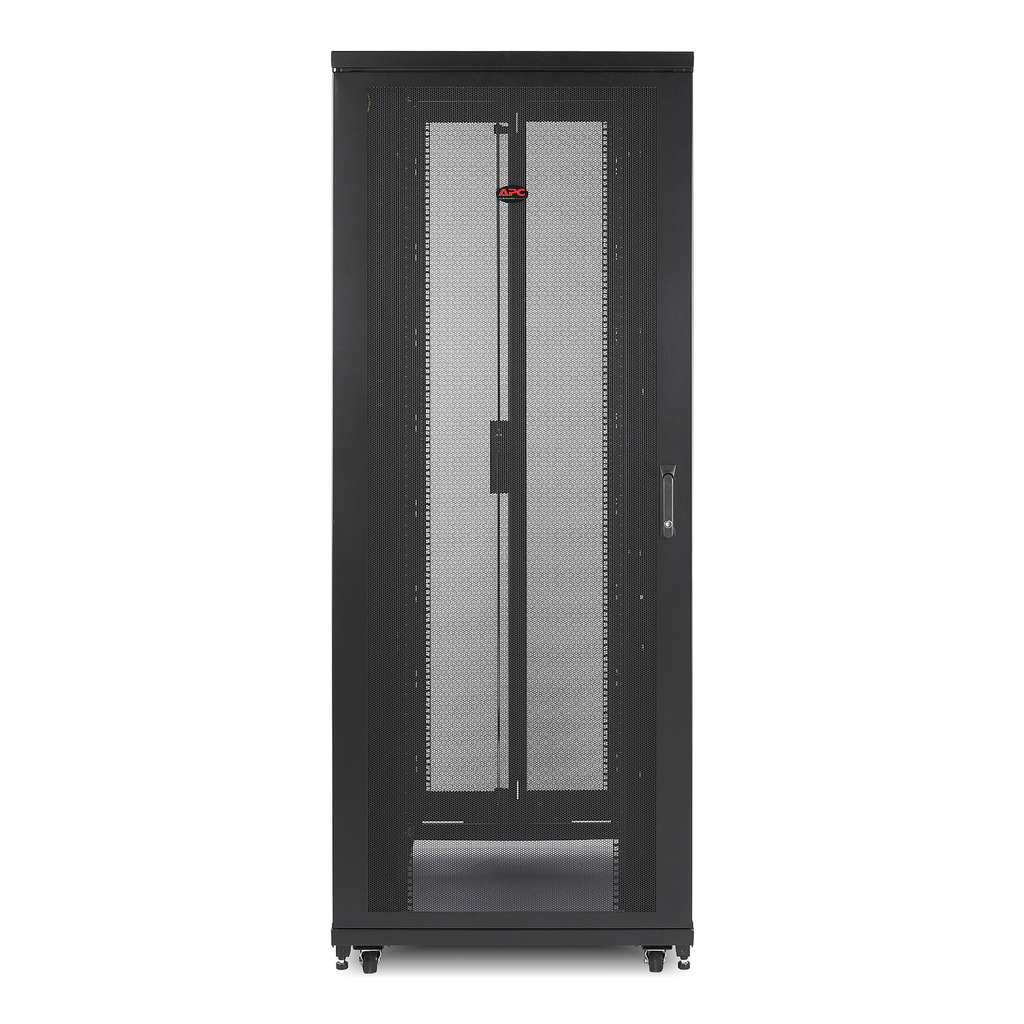

APC NetShelter SV, Server Rack Enclosure, 42U, Black, 2057H x 800W x 1060D mm, with Roof, Castors, Feet, 4 Brackets, Bottom and Side Panels

NETSHELTER SV 42U

APCAR2480 AR2480 731304302070
2415.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-APC NetShelter SV, Server Rack Enclosure, 42U, Black, 2057H x 800W x 1060D mm, with Roof, Castors, Feet, 4 Brackets, Bottom and Side Panels-1
  • Warranty Length: 5 yr
NetShelter SV Enclosures offer the same quality and reliability as NetShelter SX in a cost-effective platform with all the essential features you need.   This wide-depth rack offers large roof openings and 4 preinstalled brushes for cables to pass through.   The front roof opening includes a removable panel, while the rear is open with the option to cover with brush strips (sold separately).   All equipment mounting rails are fully adjustable in 0.4” (10mm)  increments, and 1U devices can be mounted vertically between the rail and side panel.  The reversable flat front door provides 69% ventilation, and the rear doors are split to allow for clearance. Accessory mounting brackets are included with the enclosure for mounting a variety of rack PDUs and cable management accessories.  This rack fits easily through standard doorways, ships fully assembled and includes a 5 year manufacturer’s warranty.
QTY
  • Product Description
  • Specifications
NetShelter SV Enclosures offer the same quality and reliability as NetShelter SX in a cost-effective platform with all the essential features you need.   This wide-depth rack offers large roof openings and 4 preinstalled brushes for cables to pass through.   The front roof opening includes a removable panel, while the rear is open with the option to cover with brush strips (sold separately).   All equipment mounting rails are fully adjustable in 0.4” (10mm)  increments, and 1U devices can be mounted vertically between the rail and side panel.  The reversable flat front door provides 69% ventilation, and the rear doors are split to allow for clearance. Accessory mounting brackets are included with the enclosure for mounting a variety of rack PDUs and cable management accessories.  This rack fits easily through standard doorways, ships fully assembled and includes a 5 year manufacturer’s warranty.
  • Physical Attributes
    • Rack Width : 19"
  • Complementary Attributes
    • Maximum Mounting Depth : 777.2 mm
    • Minimum Mounting Depth : 167.6 mm
  • Important Information Attributes
    • Persona Type Ids : EUA, OM, PB, VR
    • Persona Type Names : Consumer, Original Equipment Manufacturer, Panel Builder, IT Channel Partner
    • Market Segmentation Id : RESIDENTIAL, COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Residential, Commercial, Industrial
    • Marking : 14 gauge EIA mounting rail, 16 gauge front door, 18 gauge post, 16 gauge rear door, 19 gauge roof, 18 gauge side panels
    • Permanent Permissible Load : 1014 lb(US) dynamic, 2205 lb(US) static
    • Provided Equipment : Baying hardware, Doors, Key(s), Keyed-alike doors and Leveling feet, Mounting Hardware, Pre-installed casters, 4 x Bolt down brackets, Roof, Side Panels, Unpacking sheet
    • Carbon Footprint Of The Distribution Phase A4 : 12.701103205691902, 13 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 11 kg CO2 eq., 11.167385082740427
    • Carbon Footprint Of The Installation Phase A5 : 0, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 502 kg CO2 eq., 502.05304180989685
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-10-30
    • Pre Comm Date : 2013-04-30
    • Device Type : Racks and Accessories - Racks and Enclosures
    • Serviceability : No
    • Traceability : No
    • Field Service Division : SPIBS
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1512008_EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : L - LOB initialized
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Additional Specification : universal it enclosures
    • Allow Top Mount : No
    • Baying Included : no
    • Energy Efficiency Optimized : False
    • Maximum Mounting Depth : 777.2 mm
    • Minimum Mounting Depth : 167.6 mm
    • Mounting Preference : no preference
    • Number Of Rack Unit : 42U
    • Package Weight Lbs : 149.885 kg
    • Product Or Component Type : rack enclosure
    • Returnability : No
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 526 kg CO2 eq.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1512008_EN
    • Pep Verification Date : 2025-10-25
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : The functional unit is the transmission of electricity between electrical/electronic equipment and a power source for a distance of 2.5m for up to 10A of current at 230V AC
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
    • Product Manager : SUSAN ZENG
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Carbon Footprint : 526.0173874810137
    • Circularity Profile : ENVEOLI1512008_EN
    • Environmental Disclosure : ENVPEP1512008_EN
    • IP Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1512008_EN
    • Pep Verification Date : 2025-10-25
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Provided Equipment : Baying hardware, Doors, Key(s), Keyed-alike doors and Leveling feet, Mounting Hardware, Pre-installed casters, 4 x Bolt down brackets, Roof, Side Panels, Unpacking sheet
    • Additional Specification : universal it enclosures
    • Product Or Component Type : rack enclosure
  • Contractual Warranty Attributes
    • Warranty Period : 5 year repair or replace
    • Warranty : 5 year repair or replace
  • Overview Attributes
    • Presentation : Wide Universal IT enclosure with increased cable management options for denser server and networking applications. Includes integrated vertical 1U mounting spaces adjacent the enclosures standard EIA-310 equipment mounting u-spaces that can be removed and replaced with 1U accessories.42U height to easily roll through doorways.
