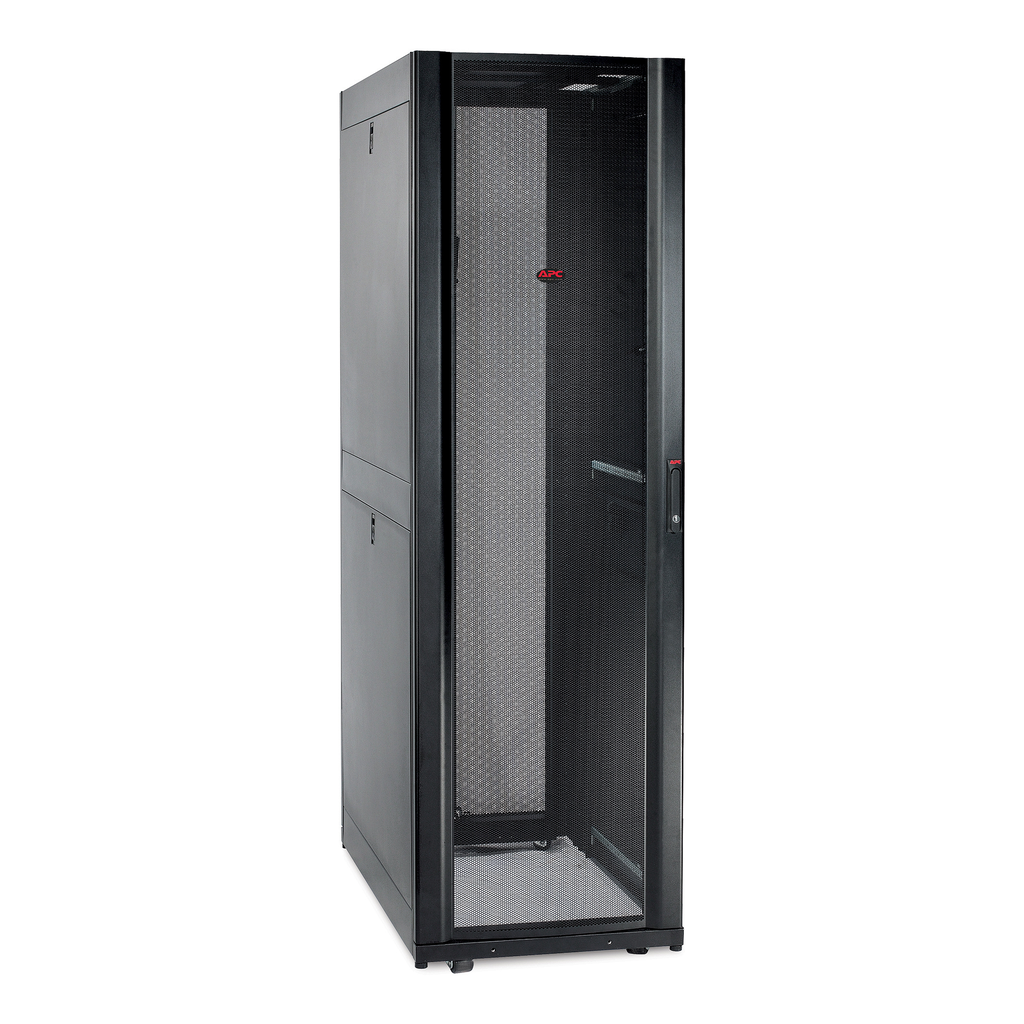

Reliable IT enclosures with essential functionality and features to meet the most requirements and applications of rack-mount IT equipment in variety of IT environments. Ready for medium to high density environments. An industry standard server rack with height designed to easily fit through standard doorways.

• Physical Attributes
• Color : Black
• Rack Width : 19"
• Complementary Attributes
• Maximum Mounting Depth : 914.9 mm
• Minimum Mounting Depth : 190.5 mm
• Important Information Attributes
• Persona Type Ids : EUA, OM, SC, VR
• Persona Type Names : Consumer, Original Equipment Manufacturer, Electrician, IT Channel Partner
• Market Segmentation Id : RESIDENTIAL, COMMERCIAL, INDUSTRIAL
• Market Segmentation : Residential, Commercial, Industrial
• Marking : 14 gauge EIA mounting rail, 16 gauge front door, 16 gauge post, 18 gauge rear door, 18 gauge roof, 18 gauge side panels
• Permanent Permissible Load : 2250 lb(US) dynamic, 3750 lb(US) static
• Provided Equipment : Baying hardware, Key(s), Keyed-alike doors and Leveling feet, Mounting Hardware, Pre-installed casters, Side Panels
• Carbon Footprint Of The Distribution Phase A4 : 10.6, 11 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 9 kg CO2 eq., 9.32
• Carbon Footprint Of The Installation Phase A5 : 0, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 419 kg CO2 eq., 419
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Certificate Agency : UL 2416, UL 60950-1, EIA-310E
• Local Data Status : Publishable
• Local Publishable Date : 2025-04-01
• Pre Comm Date : 2005-08-18
• Return Indicator : Y
• Stocking Flag : Y
• Stock Policy : 2
• Device Type : Racks and Accessories - Racks and Enclosures
• Serviceability : No
• Traceability : No
• Field Service Division : SPIBS
• Manufacturing Carbon Footprint : 419
• Distribution Carbon Footprint : 10.6
• End Of Life Carbon Footprint : 9.32
• Weee Scope : In
• Weee Product Category : 4
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 2405
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• China Rohs Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Additional Specification : premium datacenter enclosures - black
• Allow Top Mount : No
• Baying Included : no
• Door Type : Fully Ventilated
• Energy Efficiency Optimized : False
• Maximum Mounting Depth : 914.9 mm
• Minimum Mounting Depth : 190.5 mm
• Mounting Mode : not rack-mountable
• Mounting Preference : no preference
• Number Of Rack Unit : 42U
• Product Or Component Type : rack enclosure
• Returnability : Yes
• Software Version : v6.2.5-6
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 439 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 439
• Warranty In Months : 60
• Pep Code : ENVPEP1512008EN
• Database Version : 2025-30
• Pep Verification Date : 2025-10-25
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Data Source : referent product
• Functional-unit Description : The functional unit is the transmission of electricity between electrical/electronic equipment and a power source for a distance of 2.5m for up to 10A of current at 230V AC
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime, In Y : 20
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; High voltage; 2020; Asia Pacific, APAC
• Energy Model - Installation [A5] : No energy used
• Energy Model - Use [B6] : Electricity Mix; Low voltage; 2020; Europe, EU-27
• Energy Model - End Of Life [C1-c4] : Global, European and French datasets are used.
• Recyclability Potential, In % : 95
• Offer Owner Code : 190792
• Pn : 1
• Height Nominal : 1991 mm
• Width Nominal : 600 mm
• Climate Change - Total ( Kg Co2 Eq.) Total Life Cycle : 439
• Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3] : 419
• Climate Change - Total ( Kg Co2 Eq.) Distribution [A4] : 10.6
• Climate Change - Total ( Kg Co2 Eq.) End Of Life [C1-c4] : 9.32
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• Ip Degree Of Protection : IP20
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• Carbon Footprint : 439
• Environmental Disclosure : ENVPEP1512008EN
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1512008EN
• Pep Verification Date : 2025-10-25
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Provided Equipment : Baying hardware, Key(s), Keyed-alike doors and Leveling feet, Mounting Hardware, Pre-installed casters, Side Panels
• Additional Specification : premium datacenter enclosures - black
• Product Or Component Type : rack enclosure
• ETIM
• ETIM 8 : EC002499
• ETIM 9 : EC002499
• Contractual Warranty Attributes
• Warranty Period : 5 year repair or replace
• Warranty : 5 year repair or replace
• Specifications
• Country of Origin : Brazil, United States, ZZ
• Compliance : TAA Compliant | BAA Compliant via COTS
• Depth : 1070 mm
