S100X150VA1Y Self-Lam, Vinyl, White, 2500 Lbls, TT, 1.5"x1", 0.5" PO H

SELF-LAM LABEL 1X1-1/2 WHT

PANS100X150VA1Y S100X150VA1Y 074983439478
0.10 / EA
http://schema.org/OutOfStock
Mayer-DDS-S100X150VA1Y Self-Lam, Vinyl, White, 2500 Lbls, TT, 1.5"x1", 0.5" PO H-1
  • Country of Origin: USA
  • Material: Vinyl
  • Max. Operating Temperature: 150 °F, 66 °C
  • Min. Operating Temperature: -40 °C, -40 °F
  • Overall Length: 1.5 in, 38.1 mm
  • Type: Self-Laminating Label
  • Width: 1 in, 25.4 mm

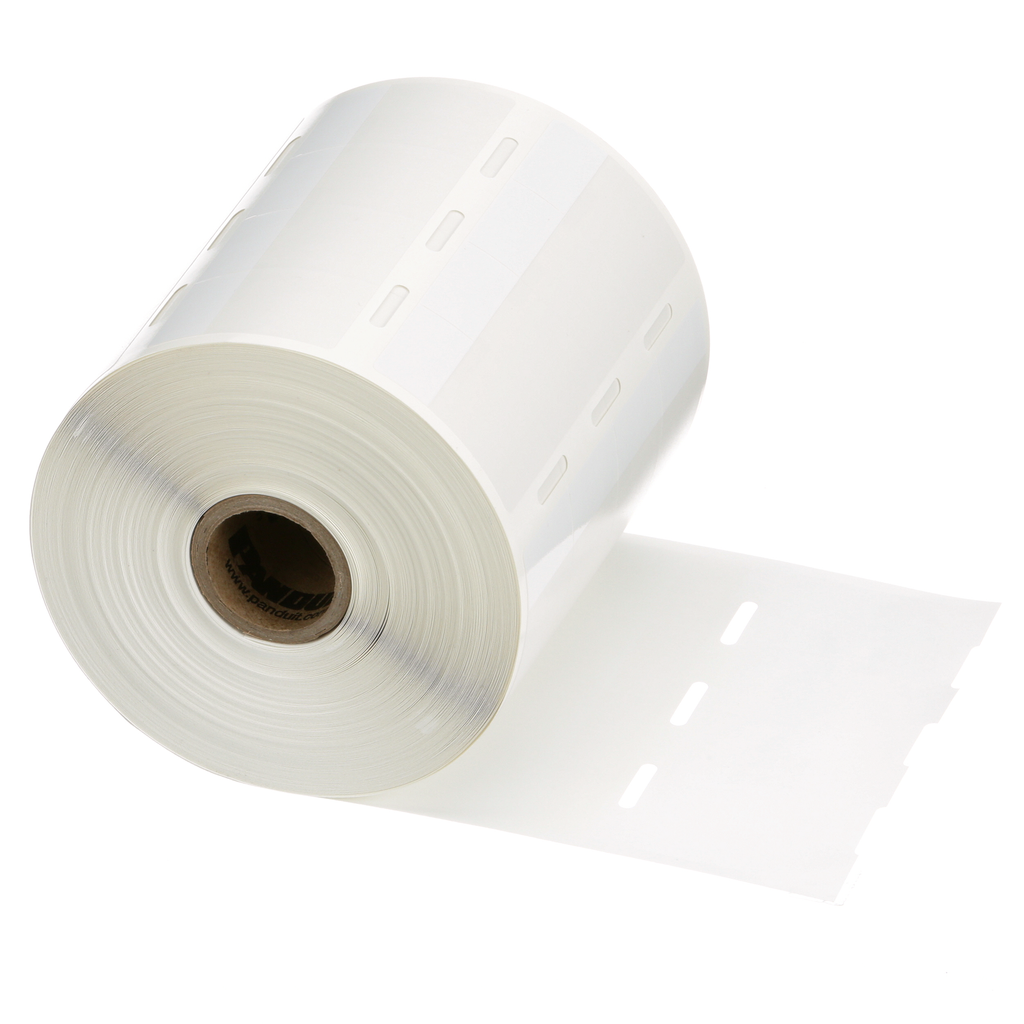

The S100X150VA1Y Thermal Transfer Vinyl Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. Upgrade your cable coding system with improved organization and identification. The label is made of thin and conformable material. Rated for use up to 150°F (65°C). 1.0" x 1.5" (25.4 mm x 38.1 mm) with a 1.0" (25.4 mm) core. Color White. 2500 per package.
QTY
  • Product Description
  • Features
  • Specifications
The S100X150VA1Y Thermal Transfer Vinyl Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. Upgrade your cable coding system with improved organization and identification. The label is made of thin and conformable material. Rated for use up to 150°F (65°C). 1.0" x 1.5" (25.4 mm x 38.1 mm) with a 1.0" (25.4 mm) core. Color White. 2500 per package.
  • Standards and Certifications
    • Standards Met: RoHS Compliant, UL969 recognized, File # MH14979; cUL recognized, C22.2 No. 0.15-01, File # MH14979
  • Specifications
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Overall Width (In.) : 1
    • Overall Length (In.) : 1.5
    • Maximum Cable Diameter (In.) : 0.32
    • Label Application : Cable & Wire Marking
    • Minimum Cable Diameter (mm) : 4.1
    • Maximum Cable Diameter (mm) : 8.1
    • Overall Width (mm) : 25.4
    • Label Property : Flammability
    • Color : White
    • Cable Type : Category 5e UTP;Category 6 UTP;Category 6A UTP; Category 5e FTP
    • Maximum Operating Temperature (°C) : 66
    • Material : Vinyl
    • Print-On Area Height (mm) : 12.7
    • Overall Length (mm) : 38.1
    • Product Type : Self-Laminating Label
    • Print-On Area Height (In.) : 0.5
    • Compatible Wire Gauge (AWG) : 10-6
    • Note : For use with TDP printers.
    • Printer Type : Thermal Transfer
    • Minimum Operating Temperature (°F) : -40
    • Maximum Operating Temperature (°F) : 150
    • Number of Labels : 2500
    • Minimum Operating Temperature (°C) : -40
    • Minimum Cable Diameter (In.) : 0.16
    • Label Dimensions (In.) : 1.5L x 1W
  • Packaging Details
    • UPC : 07498343947
    • GTIN Package : 00074983439478
    • Standard Package Volume Ft3 : 1.7282
    • Standard Package Weight Pounds : 1.7500
    • Std Package Height In : 5.25
    • Std Package Height MM : 133.35
    • Std Package Length In : 5.3
    • Std Package Length MM : 134.62
    • Std Package Width In : 4.25
    • Std Package Width MM : 107.95
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 2500
    • Standard Carton Volume Ft3 : 0.0000
    • Standard Carton Weight Pounds : 0.0000
    • Std Ctn Qty : 0
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : US
    • EAN : 00074983439478
    • REACH Status : N
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 5,000.0000
    • Pallet Quantity : 1,320,000
    • Pallet Volume : 0.000000
    • Pallet Weight : 924.0000
    • RoHS Compliant : Compliant
