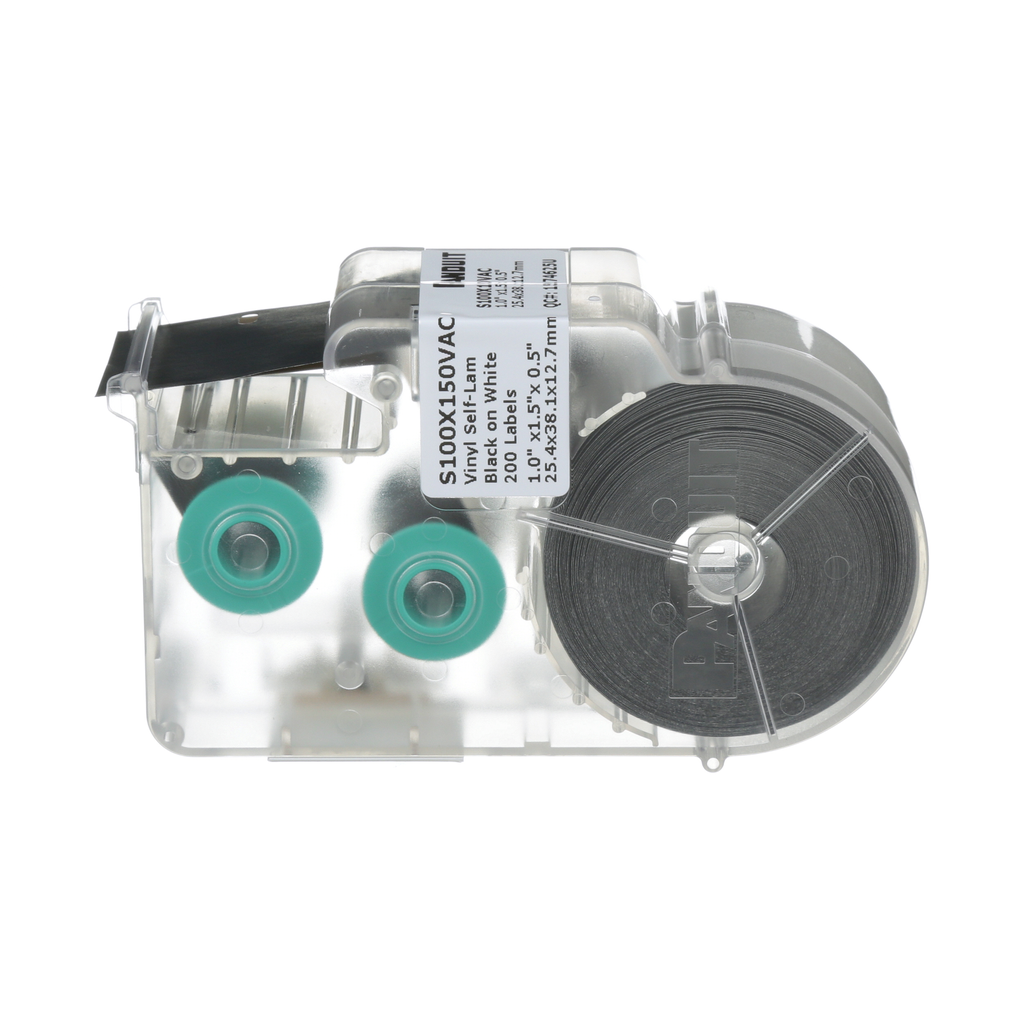

P1™ S100X150VAC Self-Lam Cassette, Vinyl, Wh, 200 Lbls, 1.5"x1", 0.5" PO H, PK1

SELF-LAM LABEL 1X1-1/2 WHT

PANS100X150VAC S100X150VAC 74983353033
66.53 / EA
http://schema.org/OutOfStock
Mayer-DDS-P1™ S100X150VAC Self-Lam Cassette, Vinyl, Wh, 200 Lbls, 1.5"x1", 0.5" PO H, PK1-1
  • Country of Origin: Costa Rica
  • Material: Vinyl
  • Max. Operating Temperature: 107 °C, 225 °F
  • Min. Operating Temperature: -46 °C, -50 °F
  • Type: Self-Laminating Label Cassette
The S100X150VAC Thermal Transfer Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. The cassette contains an integrated memory device for automatic formatting, recall of last legend used, and the number of labels remaining. For use with LS8E and LS8EQ printers. Vinyl. 1.0" x 1.50" (25.4 mm x 38.1 mm). Color Clear/White. 200 labels/cassette. 1 cassette/package.
QTY
  • Product Description
  • Specifications
The S100X150VAC Thermal Transfer Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. The cassette contains an integrated memory device for automatic formatting, recall of last legend used, and the number of labels remaining. For use with LS8E and LS8EQ printers. Vinyl. 1.0" x 1.50" (25.4 mm x 38.1 mm). Color Clear/White. 200 labels/cassette. 1 cassette/package.
  • Specifications
    • Product Segment : IEI
    • Label Dimensions (In.) : 1W x 1.5H
    • Note : For use with LS8E and LS8EQ printers
    • Product Type : Self-Laminating Label Cassette
    • Sub Brand : P1™
    • Color : White
    • Compatible Wire Gauge (AWG) : CAT. 5E/CAT. 6, 10 – 6 AWG
    • Material : Vinyl
    • Number of Labels per Cassette : 200
    • Standards Met : RoHS Compliant
    • Maximum Cable Diameter (In.) : 0.32
    • Maximum Cable Diameter (mm) : 8.1
    • Minimum Cable Diameter (mm) : 4
    • Minimum Cable Diameter (In.) : 0.16
    • Label Width (In.) : 1
    • Label Width (mm) : 25.4
    • Label Height (mm) : 38.1
    • Label Height (In.) : 1.5
    • Print-On Area Height (In.) : 0.5
    • Print-On Area Height (mm) : 12.7
    • Minimum Operating Temperature (°F) : -50
    • Minimum Operating Temperature (°C) : -46
    • Maximum Operating Temperature (°C) : 107
    • Maximum Operating Temperature (°F) : 225
  • Packaging Details
    • UPC : 07498335303
    • GTIN Package : 00074983353033
    • Standard Package Volume Ft3 : 0.0878
    • Standard Package Weight Pounds : 0.2950
    • Std Package Height In : 1.95
    • Std Package Height MM : 49.53
    • Std Package Length In : 4.5
    • Std Package Length MM : 114.3
    • Std Package Width In : 2.85
    • Std Package Width MM : 72.39
    • Std. Pkg. UOM : Piece
    • UOM EA PK : EA
    • Std. Pkg. Qty. : 1
    • GTIN Carton : 50074983353038
    • Standard Carton Volume Ft3 : 0.8778
    • Standard Carton Weight Pounds : 2.9500
    • Std Carton Height In : 5.95
    • Std Carton Height MM : 151.13
    • Std Carton Length In : 10.3
    • Std Carton Length MM : 261.62
    • Std Carton Width In : 6.25
    • Std Carton Width MM : 158.75
    • Std Ctn Qty : 10
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : CR
    • RoHS Compliant : Compliant
    • EAN : 00074983353033
    • REACH Status : N
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 10.0000
    • Pallet Quantity : 1,400
    • Pallet Volume : 122.890914
    • Pallet Weight : 413.0000
