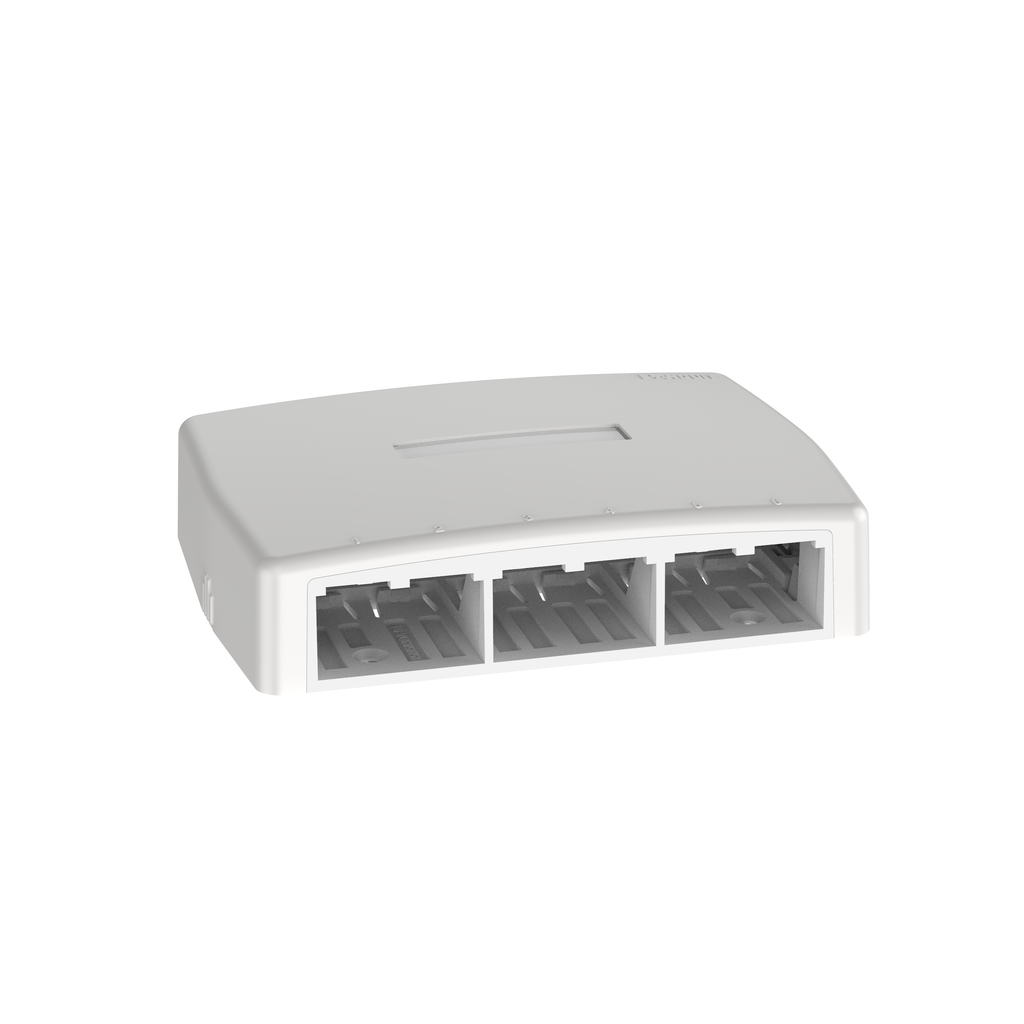

The Mini-Com® Surface Mount Box is plenum rated and accepts six Mini-Com Modules. Cover has a quick release mechanism that allows easy access to the modules; cover can be secured with a screw. The box offers a variety of mounting options using adhesive tape, screws, or optional magnet. The box includes a label pocket for easy identification and is off white.

• Specifications
• Product Segment : EDI-ENT
• Note : Compatible with LD5/LDPH5 or LD10/LDPH10 Raceway
• Product Type : Quick Release Surface Mount Box
• Number of Ports : 6
• Module Type : Mini-Com®
• Color : Off White
• Identification Type : Label Pocket
• Includes : (1) Box Cover, (2) Box Base, (3) 2-PLT1M PAN-TY, (4) Label and Label Cover, (5) Screw (Used to Secure Cover to Base, (6) 2-Strip of 3.00" X .75" Foam Tape for Mounting
• Overall Length (In.) : 3.7
• Overall Length (mm) : 93.98
• Overall Width (mm) : 129.01
• Overall Width (In.) : 5.07
• Overall Height (mm) : 30.5
• Overall Height (In.) : 1.2
• Sub Brand : Pan-Net®
• Raceway Opening : LD5/LDPH5
• Material : ABS
• Standards Met : UL 1863; UL 2043; RoHS Compliant
• Packaging Details
• UPC : 61305616951
• GTIN Package : 00613056169517
• Standard Package Volume Ft3 : 0.0208
• Standard Package Weight Pounds : 0.2028
• Std Package Height In : 1
• Std Package Height MM : 25.4
• Std Package Length In : 4
• Std Package Length MM : 101.6
• Std Package Width In : 7
• Std Package Width MM : 177.8
• Std. Pkg. UOM : Piece
• UOM EA PK : EA
• Std. Pkg. Qty. : 1
• GTIN Carton : 50613056169512
• Standard Carton Volume Ft3 : 0.2075
• Standard Carton Weight Pounds : 2.0283
• Std Carton Height In : 4
• Std Carton Height MM : 101.6
• Std Carton Length In : 10.4
• Std Carton Length MM : 264.16
• Std Carton Width In : 10.3
• Std Carton Width MM : 261.62
• Std Ctn Qty : 10
• Min. Order UOM : Piece
• Country of Origin 2Digit : CN
• RoHS Compliant : Compliant
• EAN : 00613056169517
• REACH Status : N
• ARRA Compliant : N
• Mercury Content Indicator : N
• Hazardous Material Flag : N
• Min Order Qty : 10.0000
