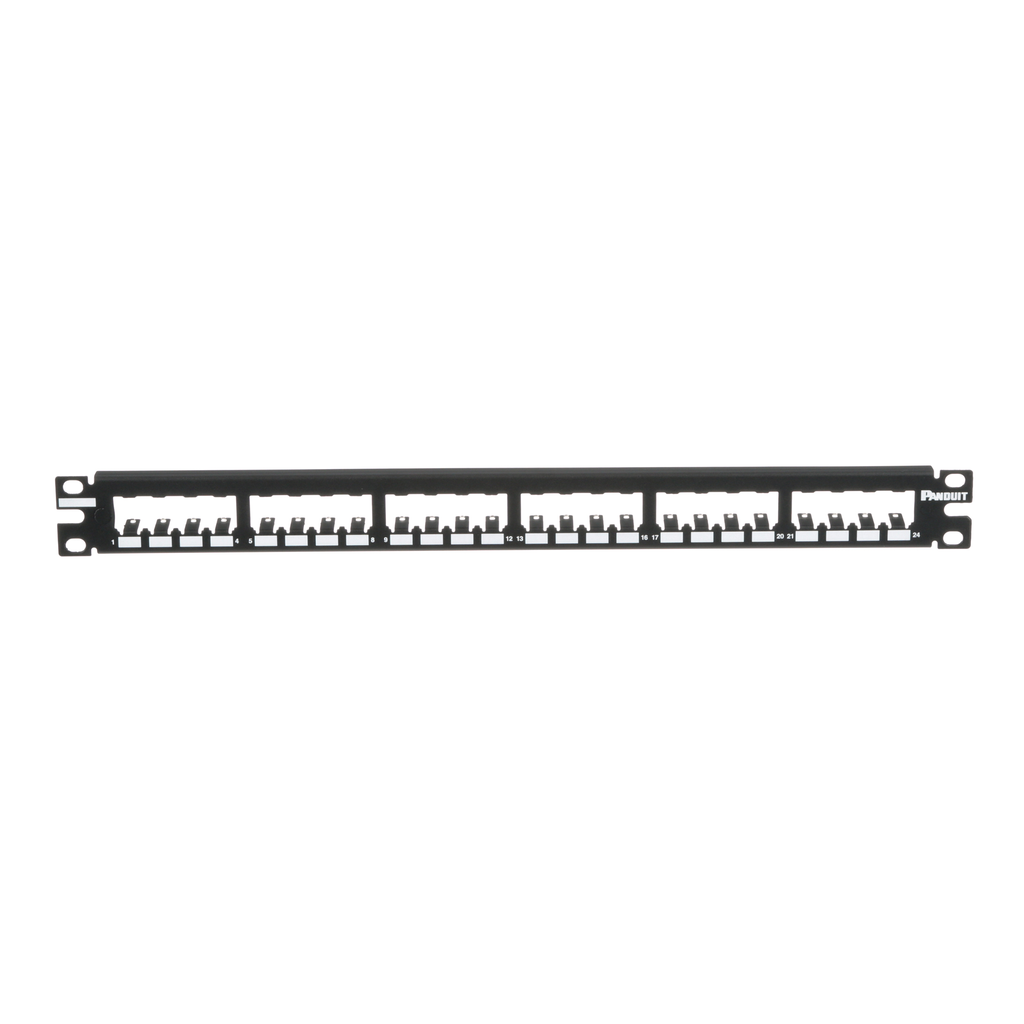

The Mini-Com® All Metal Shielded Patch Panel accepts up to 24 Mini-Com Shielded Jack Modules in 1 RU. The panel has a flat design made of stainless steel construction and mounts to 19 inch and 23 inch racks and cabinets. It includes grounding lugs. The panel has white write-on areas, can be identified with adhesive labels, and is black.
- Specifications
- Product Segment : EDI-ENT
- Product Type : Flush Mounted Patch Panel
- Patch Panel Style : Flat
- Material : Stainless Steel
- Shield Type : Shielded
- Number of Ports : 24
- Module Type : Mini-Com®
- Number of Rack Units : 1
- Identification Type : Adhesive Label
- Overall Width (In.) : 19
- Standards Met : RoHS compliant
- Overall Width (mm) : 482.6
- Overall Depth (mm) : 17.78
- Overall Depth (In.) : 0.7
- Sub Brand : Pan-Net®
- Overall Height (In.) : 1.72
- Overall Height (mm) : 43.68
- Color : Black
- Packaging Details
- UPC : 07498303637
- GTIN Package : 00074983036370
- Standard Package Volume Ft3 : 0.0361
- Standard Package Weight Pounds : 0.6850
- Std Package Height In : 1.25
- Std Package Height MM : 31.75
- Std Package Length In : 20.3
- Std Package Length MM : 515.62
- Std Package Width In : 2
- Std Package Width MM : 50.8
- Std. Pkg. UOM : Piece
- UOM EA PK : EA
- Std. Pkg. Qty. : 1
- GTIN Carton : 50074983036375
- Standard Carton Volume Ft3 : 0.3613
- Standard Carton Weight Pounds : 6.8500
- Std Carton Height In : 6.55
- Std Carton Height MM : 166.37
- Std Carton Length In : 21.25
- Std Carton Length MM : 539.75
- Std Carton Width In : 4.9
- Std Carton Width MM : 124.46
- Std Ctn Qty : 10
- Min. Order UOM : Piece
- Country of Origin 2Digit : CN
- RoHS Compliant : Compliant
- EAN : 00074983036370
- REACH Status : False
- California Pro65 Cancer : No
- ARRA Compliant : N
- Mercury Content Indicator : No
- Restricted Use of Hazardous Substances : N
- Hazardous Material Flag : N
- Min Order Qty : 10
- Pallet Quantity : 1,120
- Pallet Volume : 40.465092
- Pallet Weight : 767.2000
