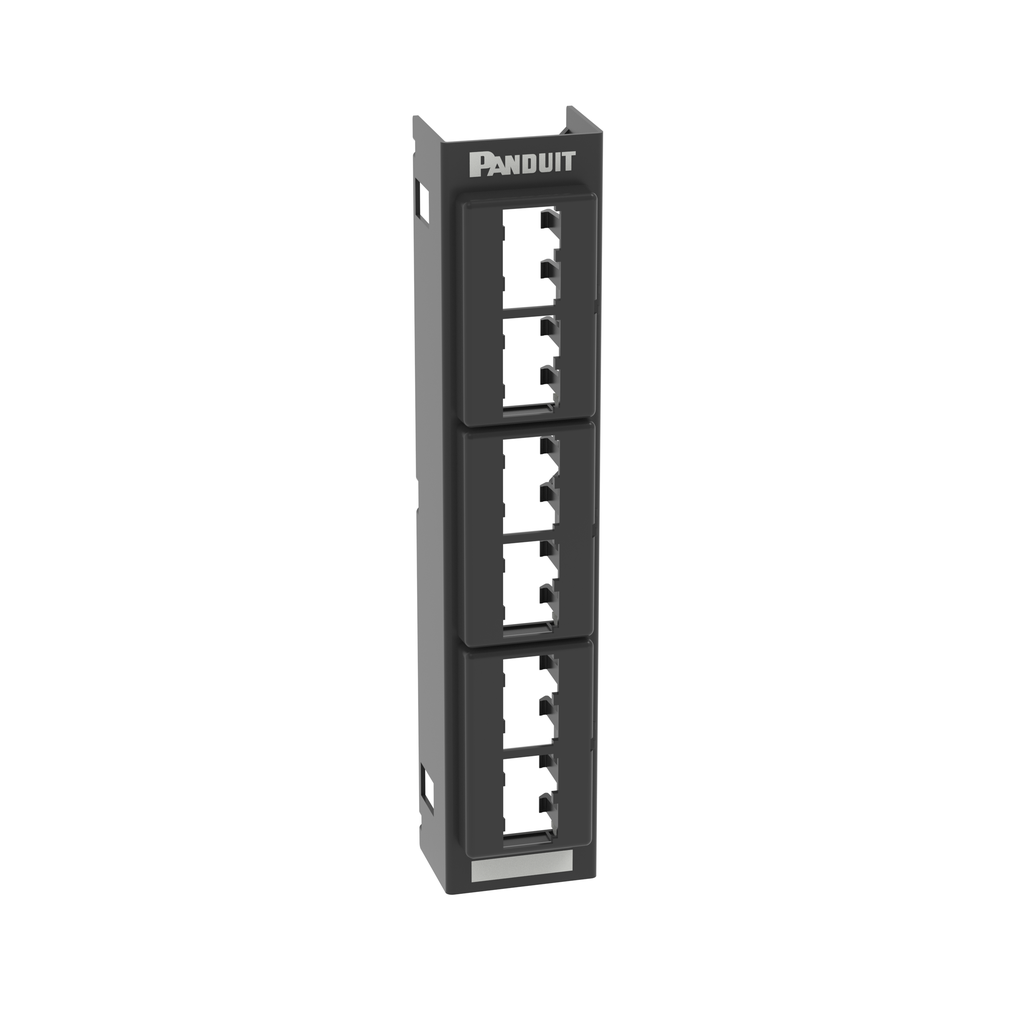

The Mini-Com® Faceplate Modular Patch Panel accepts up to 12 Mini-Com Modules for unshielded applications, and mounts to 89D bracket (sold separately). The patch panel offers front access and can be identified with adhesive labels and is black.

• Packaging Details
• UPC : 07498361702
• GTIN Package : 00074983617029
• Standard Package Volume Ft3 : 0.0840
• Standard Package Weight Pounds : 1.1500
• Std Package Height In : 2.95
• Std Package Height MM : 74.93
• Std Package Length In : 11.1
• Std Package Length MM : 281.94
• Std Package Width In : 3.45
• Std Package Width MM : 87.63
• Std. Pkg. UOM : Piece
• UOM EA PK : EA
• Std. Pkg. Qty. : 1
• GTIN Carton : 50074983617024
• Standard Carton Volume Ft3 : 0.8395
• Standard Carton Weight Pounds : 11.5000
• Std Carton Height In : 6.75
• Std Carton Height MM : 171.45
• Std Carton Length In : 14.65
• Std Carton Length MM : 372.11
• Std Carton Width In : 14.45
• Std Carton Width MM : 367.03
• Std Ctn Qty : 10
• Min. Order UOM : Piece
• Country of Origin 2Digit : MX
• RoHS Compliant : Compliant
• EAN : 00074983617029
• REACH Status : False
• ARRA Compliant : Y
• Mercury Content Indicator : No
• Hazardous Material Flag : N
• Min Order Qty : 10
• Pallet Quantity : 630
• Pallet Volume : 52.891016
• Pallet Weight : 724.5000
• Specifications
• Product Segment : EDI-ENT
• Product Type : Front Access Patch Panel
• Patch Panel Style : Flat
• Material : CRS
• Connector Type : Unshielded
• Number of Ports : 12
• Module Type : Mini-Com®
• Identification Type : Adhesive Label
• Overall Width (mm) : 51.81
• Overall Width (In.) : 2.04
• Standards Met : RoHS Compliant
• Overall Depth (In.) : 1.91
• Sub Brand : Pan-Net®
• Overall Depth (mm) : 48.51
• Overall Height (mm) : 254
• Overall Height (In.) : 10
• Color : Black
