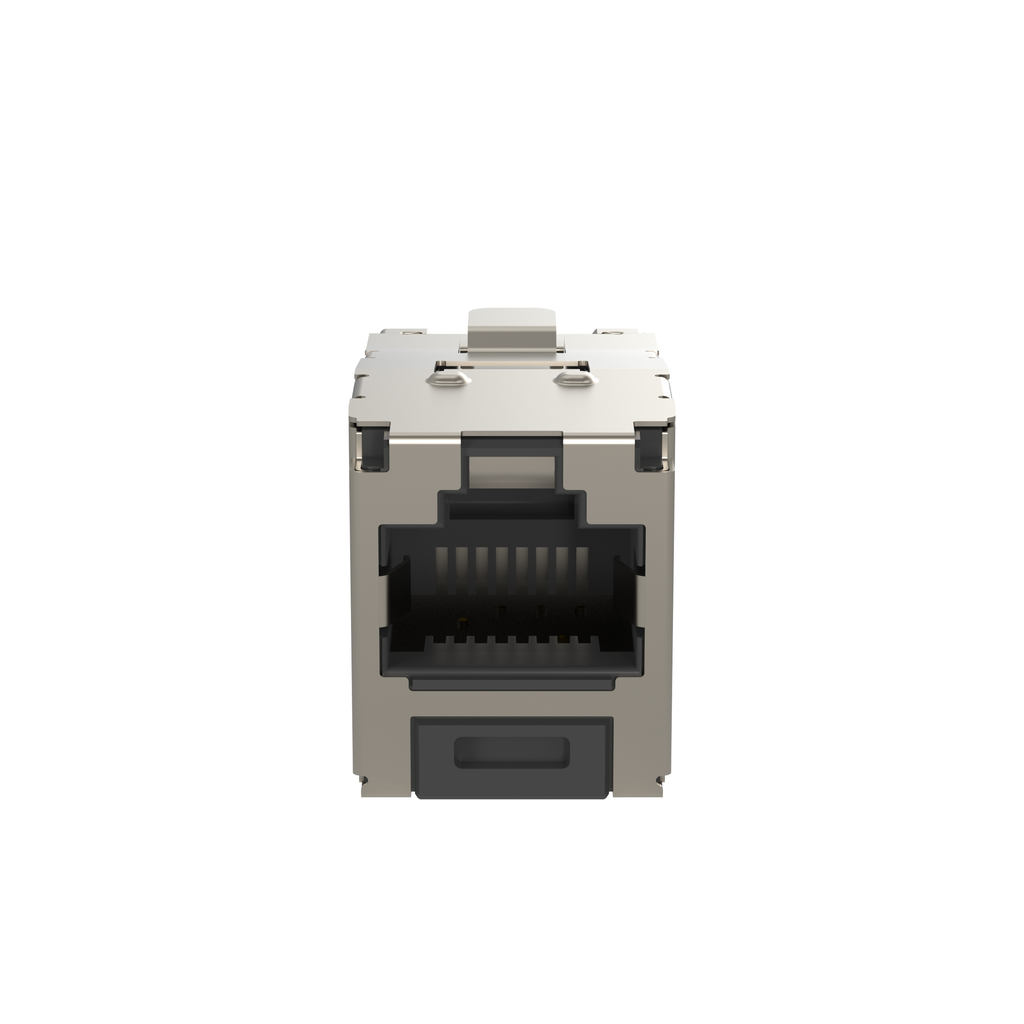

Shielded RJ45 Cat 6 TG Jack Module, Black

JACK CAT6 SHIELDED GY

PANCJS688TGY CJS688TGY 074983035632
19.79 / EA
http://schema.org/OutOfStock
Mayer-DDS-Shielded RJ45 Cat 6 TG Jack Module, Black-1
  • Country of Origin: Costa Rica
  • Depth: 1.5 in, 38.1 mm
  • Height: 0.74 in, 18.8 mm
  • Max. Operating Temperature: 167 °F, 75 °C
  • Min. Operating Temperature: -10 °C, 14 °F
  • Overall Length: 1.5 in, 38.1 mm
  • Type: Jack Module
  • Width: 0.62 in, 15.7 mm
The Mini-Com® Cat 6 Shielded RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Shielded Modular Patch Panels and Faceplates. The jack module is black.
QTY
  • Product Description
  • Specifications
The Mini-Com® Cat 6 Shielded RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Shielded Modular Patch Panels and Faceplates. The jack module is black.
  • Specifications
    • Product Segment : EDI-ENT
    • Product Type : Jack Module
    • Performance Level : Category 6
    • Connector Type : Jack Module - Standard
    • Termination Style : TG Style
    • Body Material : Polycarbonate
    • Contact Material : Plated Phosphor Bronze
    • Module Type : Mini-Com®
    • Wiring Scheme : T568A/T568B
    • Shield Type : Shielded (STP)
    • Sub Brand : Pan-Net®
    • Maximum Operating Temperature (°C) : 75
    • Maximum Operating Temperature (°F) : 167
    • Minimum Operating Temperature (°F) : 14
    • Minimum Operating Temperature (°C) : -10
    • Maximum Storage Temperature (°C) : 75
    • Maximum Storage Temperature (°F) : 167
    • Minimum Storage Temperature (°F) : -40
    • Minimum Storage Temperature (°C) : -40
    • Resistance Properties : Heat-Resistant
    • Color : Black
    • Standards Met : Exceeds ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Channel and Component Requirements at Swept Frequencies up to 250 MHz, Complies with ANSI/TIA-1096A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4 for up to 100W, UL 1863, UL 1863, UL 2043 and RoHS Compliant
    • Overall Depth (mm) : 38.1
    • Overall Depth (In.) : 1.5
    • Overall Height (mm) : 18.8
    • Overall Height (In.) : 0.74
    • Overall Length (mm) : 38.1
    • Overall Length (In.) : 1.5
    • Overall Width (mm) : 15.7
    • Overall Width (In.) : 0.62
  • Packaging Details
    • UPC : 07498303563
    • GTIN Package : 00074983035632
    • Standard Package Volume Ft3 : 0.0032
    • Standard Package Weight Pounds : 0.0441
    • Std Package Height In : .85
    • Std Package Height MM : 21.59
    • Std Package Length In : 3.6
    • Std Package Length MM : 91.44
    • Std Package Width In : 2.3
    • Std Package Width MM : 58.42
    • Std. Pkg. UOM : Piece
    • UOM EA PK : EA
    • Std. Pkg. Qty. : 1
    • GTIN Carton : 50074983035637
    • Standard Carton Volume Ft3 : 0.1605
    • Standard Carton Weight Pounds : 2.2050
    • Std Carton Height In : 3.6
    • Std Carton Height MM : 91.44
    • Std Carton Length In : 10.55
    • Std Carton Length MM : 267.97
    • Std Carton Width In : 7.4
    • Std Carton Width MM : 187.96
    • Std Ctn Qty : 50
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : CR
    • RoHS Compliant : Compliant
    • EAN : 00074983035632
    • REACH Status : False
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Hazardous Material Flag : N
    • Min Order Qty : 50
    • Pallet Quantity : 16,800
    • Pallet Volume : 53.912136
    • Pallet Weight : 740.8800
