Country of Origin:
Costa Rica
-
Depth:
1.5 in, 38.1 mm
-
Height:
0.74 in, 18.8 mm
-
Max. Operating Temperature:
167 °F, 75 °C
-
Min. Operating Temperature:
-10 °C, 14 °F
-
Overall Length:
1.5 in, 38.1 mm
-
Type:
Jack Module
-
Width:
0.62 in, 15.7 mm

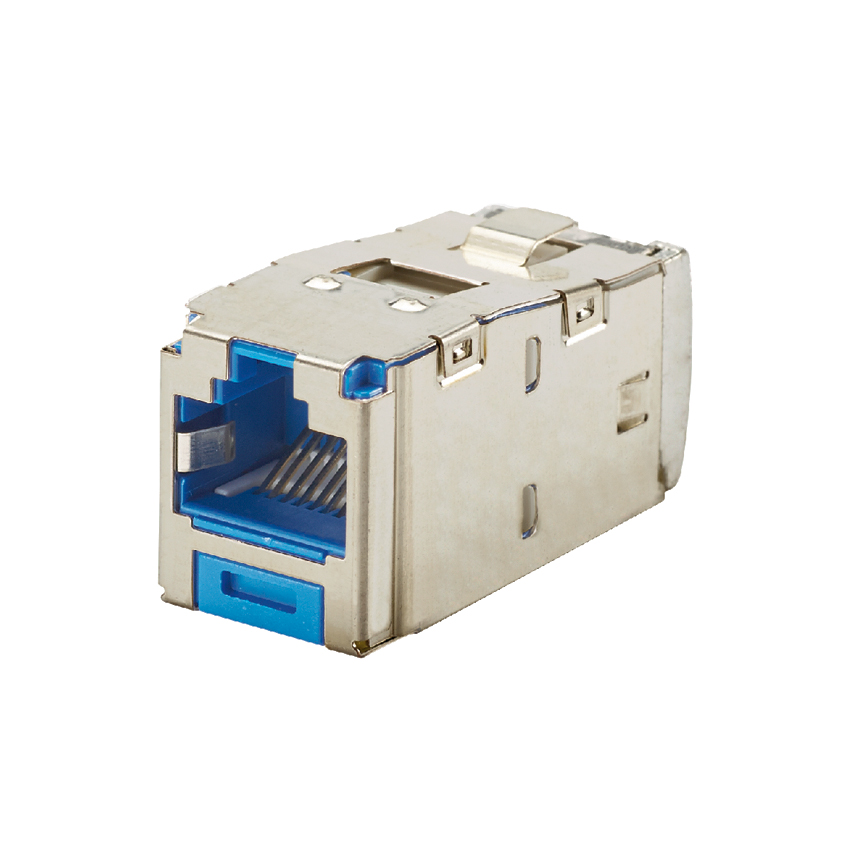

The Mini-Com® Cat 6 Shielded RJ45 TG Jack Module is designed to terminate shielded 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.
