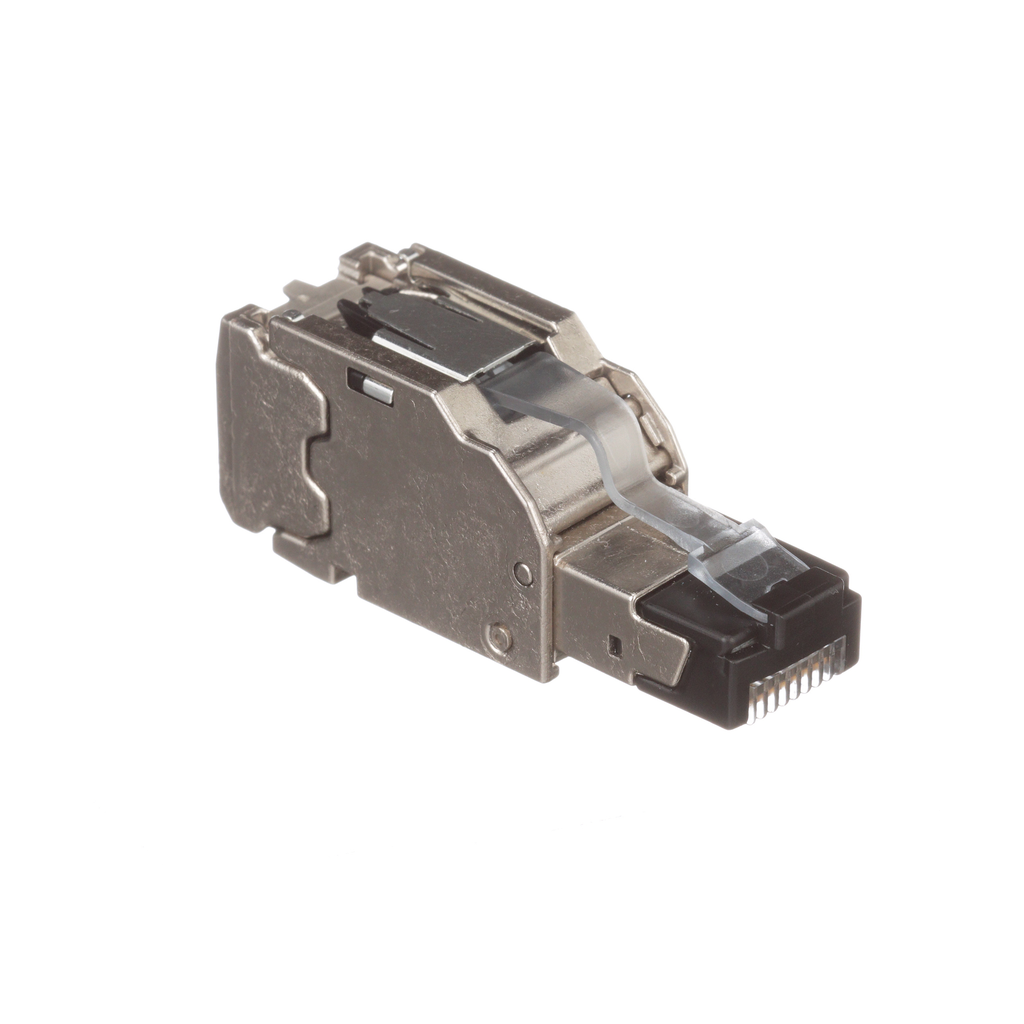

RJ45, Cat 6A Shielded Field Term Plug, 22-26 AWG

SHIELDED FIELD TERM PLUG

PANFPS6X88MTG FPS6X88MTG 613056579705
28.81 / EA
http://schema.org/OutOfStock
Mayer-DDS-RJ45, Cat 6A Shielded Field Term Plug, 22-26 AWG-3
  • Country of Origin: Costa Rica
  • Height: 0.71 in, 18 mm
  • IP Rating: IP20
  • Max. Operating Temperature: 185 °F, 85 °C
  • Min. Operating Temperature: -40 °C, -40 °F
  • Overall Length: 1.83 in, 46.4 mm
  • Type: Shielded Field Term Plug
  • Width: 0.54 in, 13.6 mm
Shielded field term plug, 4-pair, 22-26 AWG
QTY
  • Product Description
  • Specifications
Shielded field term plug, 4-pair, 22-26 AWG
  • Packaging Details
    • UPC : 61305657970
    • GTIN Package : 00613056579705
    • Standard Package Volume Ft3 : 0.0035
    • Standard Package Weight Pounds : 0.0240
    • Std Package Height In : 1.5
    • Std Package Height MM : 38.1
    • Std Package Length In : 3.5
    • Std Package Length MM : 88.9
    • Std Package Width In : 5
    • Std Package Width MM : 127
    • Std. Pkg. UOM : Piece
    • UOM EA PK : EA
    • Std. Pkg. Qty. : 1
    • GTIN Carton : 50613056579700
    • Standard Carton Volume Ft3 : 0.1734
    • Standard Carton Weight Pounds : 1.2000
    • Std Carton Height In : 3.7
    • Std Carton Height MM : 93.98
    • Std Carton Length In : 10.8
    • Std Carton Length MM : 274.32
    • Std Carton Width In : 7.5
    • Std Carton Width MM : 190.5
    • Std Ctn Qty : 50
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : CR
    • RoHS Compliant : Compliant
    • EAN : 00613056579705
    • REACH Status : N
    • California Pro65 Cancer : N
    • Mercury Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 25
    • Pallet Quantity : 13,000
    • Pallet Volume : 45.093750
    • Pallet Weight : 312.0000
  • Specifications
    • Product Segment : EDI-ENT
    • Product Type : Shielded Field Term Plug
    • Performance Level : Category 6A
    • Connector Type : Field Terminable Plug
    • Body Material : Die Cast
    • Contact Material : Gold Plated Phosphor Bronze
    • Number of Plugs : 1
    • Wiring Scheme : T568A/T568B
    • Overall Length (In.) : 1.83
    • Overall Length (mm) : 46.4
    • Shield Type : Shielded (STP)
    • Overall Width (mm) : 13.6
    • Overall Width (In.) : 0.54
    • Overall Height (In.) : 0.71
    • Overall Height (mm) : 18
    • Maximum Operating Temperature (°C) : 85
    • Maximum Operating Temperature (°F) : 185
    • Minimum Operating Temperature (°F) : -40
    • Minimum Operating Temperature (°C) : -40
    • Compatible Wire Gauge (AWG) : 22-26
    • Color : Silver
    • Standards Met : Exceeds ANSI/TIA 568-C.2 Category 6A and ISO 11801 Class EA Channel performance requirements with up to two field term plugs in channel. Meets or exceeds proposed TIA Modular Plug Terminated Link requirements with up to two field term plugs in link, Meets ANSI/TIA-1096-A (formerly FCC Part 68), IEC 60603-7, IEC 60529 (IP 20), Supports IEEE 802.3af / 802.3at (PoE/PoE+) and proposed 802.3bt type 3 and type 4 (PoE++) applications. Supports Power over HDBaseT up to 100 watts, RoHS compliant
    • IP Rating : IP20
    • Sub Brand : Pan-Net®
    • Flammability Rating : UL94V-0
