NetKey Cat 6 Punchdown Jack, Orange

NETKEY JACK CAT6 ORANGE

PANNK688MOR NK688MOR 74983574766
8.08 / EA
http://schema.org/OutOfStock
Mayer-DDS-NetKey Cat 6 Punchdown Jack, Orange-1
  • Country of Origin: USA
  • Depth: 1.16 in, 29.5 mm
  • Height: 0.9 in, 22.9 mm
  • Max. Operating Temperature: 167 °F, 75 °C
  • Min. Operating Temperature: -10 °C, 14 °F
  • Overall Length: 1.16 in, 29.5 mm
  • Type: Jack Module
  • Width: 0.65 in, 16.5 mm

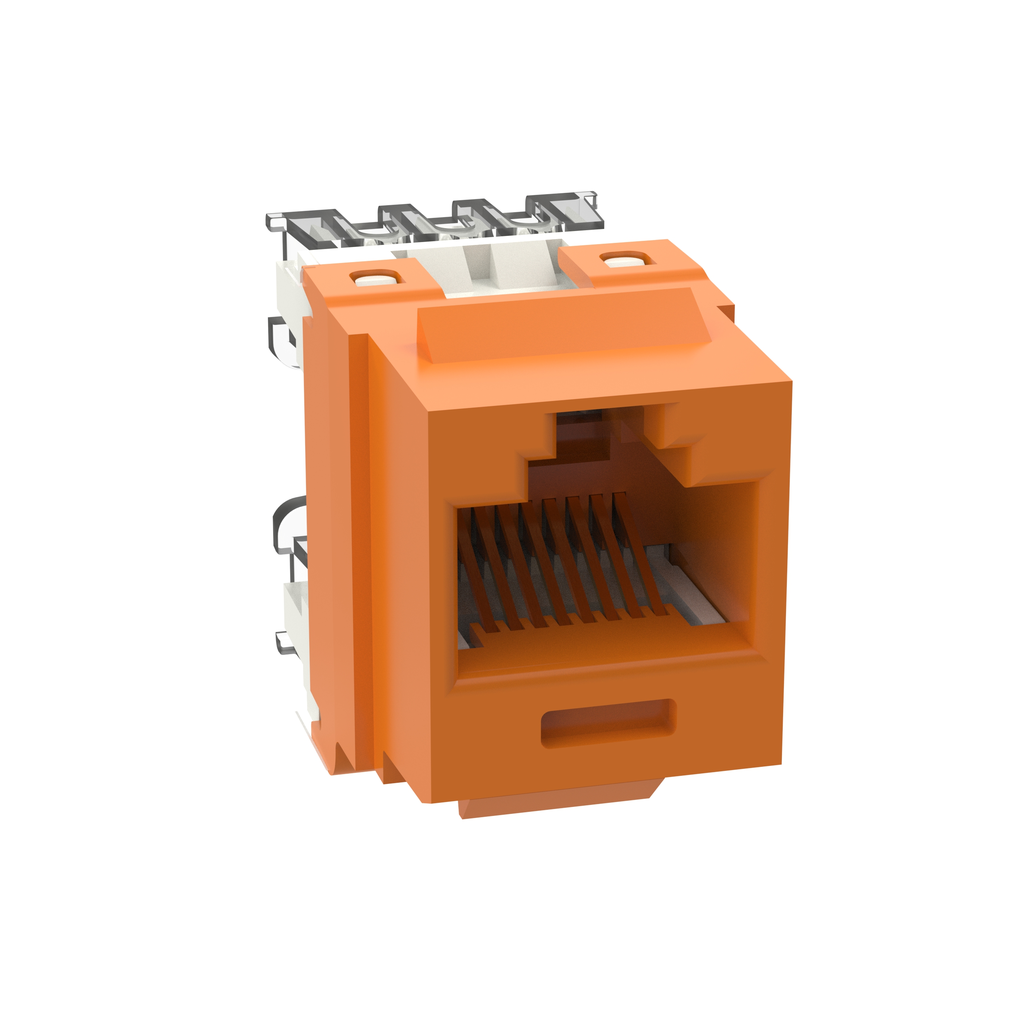

The NetKey® Cat 6 UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is orange.
QTY
  • Product Description
  • Features
  • Specifications
The NetKey® Cat 6 UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is orange.
  • Standards and Certifications
    • Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
  • Specifications
    • Any Reason Not to Sell : N
    • Product Segment : EDI-ENT
    • Sub Brand : NetKey®
    • Product Type : Jack Module
    • Overall Height (In.) : 0.9
    • Maximum Storage Temperature (°F) : 167
    • Wiring Scheme : T568A/T568B
    • Overall Length (mm) : 29.5
    • Overall Length (In.) : 1.16
    • Overall Width (mm) : 16.5
    • Color : Orange
    • Connector Type : Jack Module - Standard
    • Body Material : Polycarbonate
    • Shield Type : Unshielded (UTP)
    • Maximum Storage Temperature (°C) : 75
    • Minimum Storage Temperature (°F) : -40
    • Note : Punchdown style termination
    • Maximum Operating Temperature (°C) : 75
    • Contact Material : Plated Phosphor Bronze
    • Overall Height (mm) : 22.9
    • Minimum Storage Temperature (°C) : -40
    • Minimum Operating Temperature (°F) : 14
    • Termination Style : Punchdown
    • Performance Level : Category 6
    • Maximum Operating Temperature (°F) : 167
    • Minimum Operating Temperature (°C) : -10
    • Overall Depth (mm) : 29.5
    • Overall Depth (In.) : 1.16
    • Overall Width (In.) : 0.65
    • Module Type : Keystone
  • Packaging Details
    • UPC : 07498357476
    • GTIN Package : 00074983574766
    • Standard Package Volume Ft3 : 0.0032
    • Standard Package Weight Pounds : 0.0240
    • Std Package Height In : 1.05
    • Std Package Height MM : 26.67
    • Std Package Length In : 3.8
    • Std Package Length MM : 96.52
    • Std Package Width In : 2.85
    • Std Package Width MM : 72.39
    • Std. Pkg. UOM : Piece
    • UOM EA PK : EA
    • Std. Pkg. Qty. : 1
    • GTIN Carton : 50074983574761
    • Standard Carton Volume Ft3 : 0.1604
    • Standard Carton Weight Pounds : 1.2000
    • Std Carton Height In : 3.5
    • Std Carton Height MM : 88.9
    • Std Carton Length In : 10.75
    • Std Carton Length MM : 273.05
    • Std Carton Width In : 7.25
    • Std Carton Width MM : 184.15
    • Std Ctn Qty : 50
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : US
    • EAN : 00074983574766
    • REACH Status : N
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 10.0000
    • Pallet Quantity : 16,800
    • Pallet Volume : 53.886389
    • Pallet Weight : 403.2000
    • RoHS Compliant : Compliant
