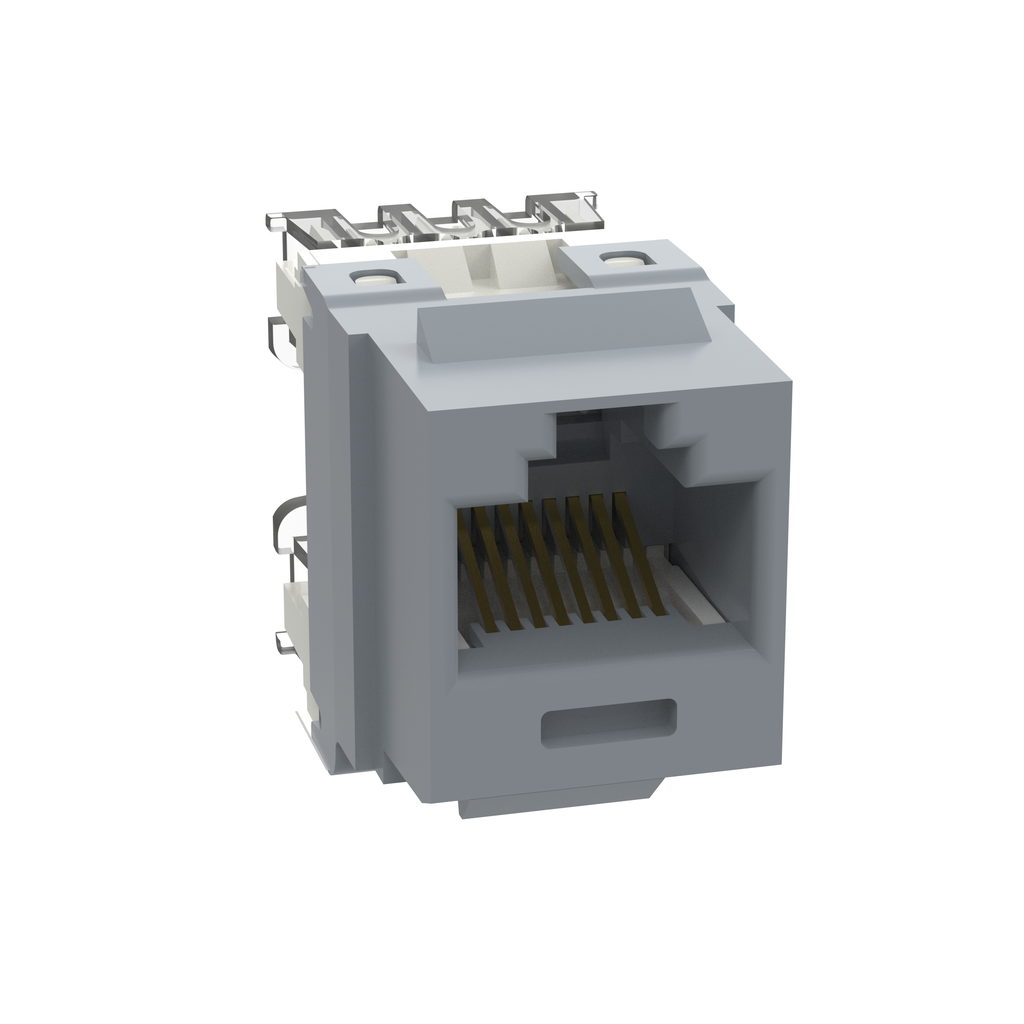

The NetKey® Cat 6 UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is international gray.

• Standards and Certifications
• Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.

• Specifications
• Any Reason Not to Sell : N
• Product Segment : EDI-ENT
• Performance Level : Category 6
• Overall Depth (mm) : 29.5
• Minimum Storage Temperature (°C) : -40
• Module Type : Keystone
• Maximum Storage Temperature (°F) : 167
• Wiring Scheme : T568A/T568B
• Termination Style : Punchdown
• Maximum Operating Temperature (°C) : 75
• Overall Height (In.) : 0.9
• Body Material : Polycarbonate
• Connector Type : Jack Module - Standard
• Minimum Storage Temperature (°F) : -40
• Overall Height (mm) : 22.9
• Overall Length (In.) : 1.16
• Contact Material : Plated Phosphor Bronze
• Overall Width (In.) : 0.65
• Minimum Operating Temperature (°C) : -10
• Shield Type : Unshielded (UTP)
• Maximum Operating Temperature (°F) : 167
• Color : International Gray
• Note : Punchdown style termination
• Product Type : Jack Module
• Overall Width (mm) : 16.5
• Minimum Operating Temperature (°F) : 14
• Overall Length (mm) : 29.5
• Sub Brand : NetKey®
• Overall Depth (In.) : 1.16
• Maximum Storage Temperature (°C) : 75
• Packaging Details
• UPC : 07498357475
• GTIN Package : 00074983574759
• Standard Package Volume Ft3 : 0.0032
• Standard Package Weight Pounds : 0.0240
• Std Package Height In : 1.1
• Std Package Height MM : 27.94
• Std Package Length In : 3.65
• Std Package Length MM : 92.71
• Std Package Width In : 2.6
• Std Package Width MM : 66.04
• Std. Pkg. UOM : Piece
• UOM EA PK : EA
• Std. Pkg. Qty. : 1
• GTIN Carton : 50074983574754
• Standard Carton Volume Ft3 : 0.1604
• Standard Carton Weight Pounds : 1.2000
• Std Carton Height In : 3.55
• Std Carton Height MM : 90.17
• Std Carton Length In : 10.85
• Std Carton Length MM : 275.59
• Std Carton Width In : 7.3
• Std Carton Width MM : 185.42
• Std Ctn Qty : 50
• Min. Order UOM : Piece
• Country of Origin 2Digit : US,CR
• EAN : 00074983574759
• REACH Status : N
• ARRA Compliant : Y
• Mercury Content Indicator : N
• Hazardous Material Flag : N
• Min Order Qty : 10.0000
• Pallet Quantity : 16,800
• Pallet Volume : 53.886389
• Pallet Weight : 403.2000
• RoHS Compliant : Compliant
