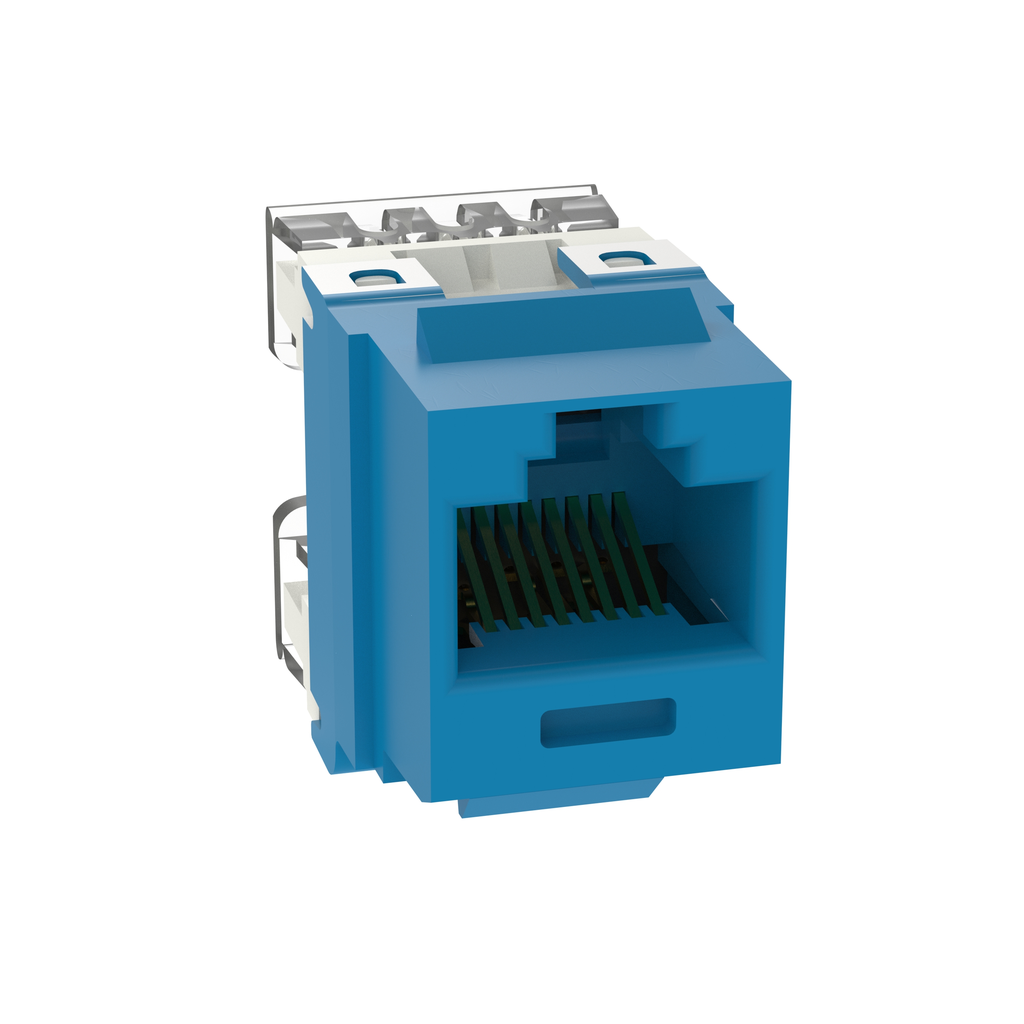

The NetKey® Cat 5e UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is blue and includes 25 per package.

• Packaging Details
• UPC : 07498312519
• GTIN Package : 00074983125197
• Standard Package Volume Ft3 : 0.0362
• Standard Package Weight Pounds : 0.5100
• Std Package Height In : 1.65
• Std Package Height MM : 41.91
• Std Package Length In : 7.25
• Std Package Length MM : 184.15
• Std Package Width In : 4.9
• Std Package Width MM : 124.46
• Std. Pkg. UOM : Piece
• UOM EA PK : PK
• Std. Pkg. Qty. : 25
• GTIN Carton : 50074983125192
• Standard Carton Volume Ft3 : 0.3621
• Standard Carton Weight Pounds : 5.1000
• Std Carton Height In : 4.5
• Std Carton Height MM : 114.3
• Std Carton Length In : 13.25
• Std Carton Length MM : 336.55
• Std Carton Width In : 10.3
• Std Carton Width MM : 261.62
• Std Ctn Qty : 250
• Min. Order UOM : Piece
• Country of Origin 2Digit : CR
• RoHS Compliant : Compliant
• EAN : 00074983125197
• REACH Status : False
• ARRA Compliant : Y
• Mercury Content Indicator : No
• Hazardous Material Flag : N
• Min Order Qty : 25
• Pallet Quantity : 30,000
• Pallet Volume : 43.453125
• Pallet Weight : 612.0000
• Specifications
• Product Segment : EDI-ENT
• Product Type : Jack Module
• Note : Punchdown style termination; convenience pack of 25
• Performance Level : Category 5e
• Connector Type : Jack Module - Standard
• Termination Style : Punchdown
• Body Material : Polycarbonate
• Contact Material : Plated Phosphor Bronze
• Module Type : Keystone
• Wiring Scheme : T568A/T568B
• Shield Type : Unshielded (UTP)
• Sub Brand : NetKey®
• Maximum Operating Temperature (°F) : 167
• Maximum Operating Temperature (°C) : 75
• Minimum Operating Temperature (°F) : 14
• Minimum Operating Temperature (°C) : -10
• Maximum Storage Temperature (°C) : 75
• Maximum Storage Temperature (°F) : 167
• Minimum Storage Temperature (°F) : -40
• Minimum Storage Temperature (°C) : -40
• Color : Blue
• Standards Met : Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
• Overall Depth (mm) : 29.5
• Overall Depth (In.) : 1.16
• Overall Height (mm) : 22.9
• Overall Height (In.) : 0.9
• Overall Length (In.) : 1.16
• Overall Length (mm) : 29.5
• Overall Width (In.) : 0.65
• Overall Width (mm) : 16.5
