NetKey Cat 5e Punchdown Jack, Electric Ivory

NetKey Cat 5e Punchdown Jack, Electric Ivory

PANNKP5E88MEI NKP5E88MEI 074983106936
6.75 / EA
http://schema.org/OutOfStock
Mayer-DDS-NetKey Cat 5e Punchdown Jack, Electric Ivory-1
  • Depth: 1.16 in, 29.5 mm
  • Height: 0.9 in, 22.9 mm
  • Max. Operating Temperature: 167 °F, 75 °C
  • Min. Operating Temperature: -10 °C, 14 °F
  • Overall Length: 1.16 in, 29.5 mm
  • Type: Jack Module
  • Width: 0.65 in, 16.5 mm

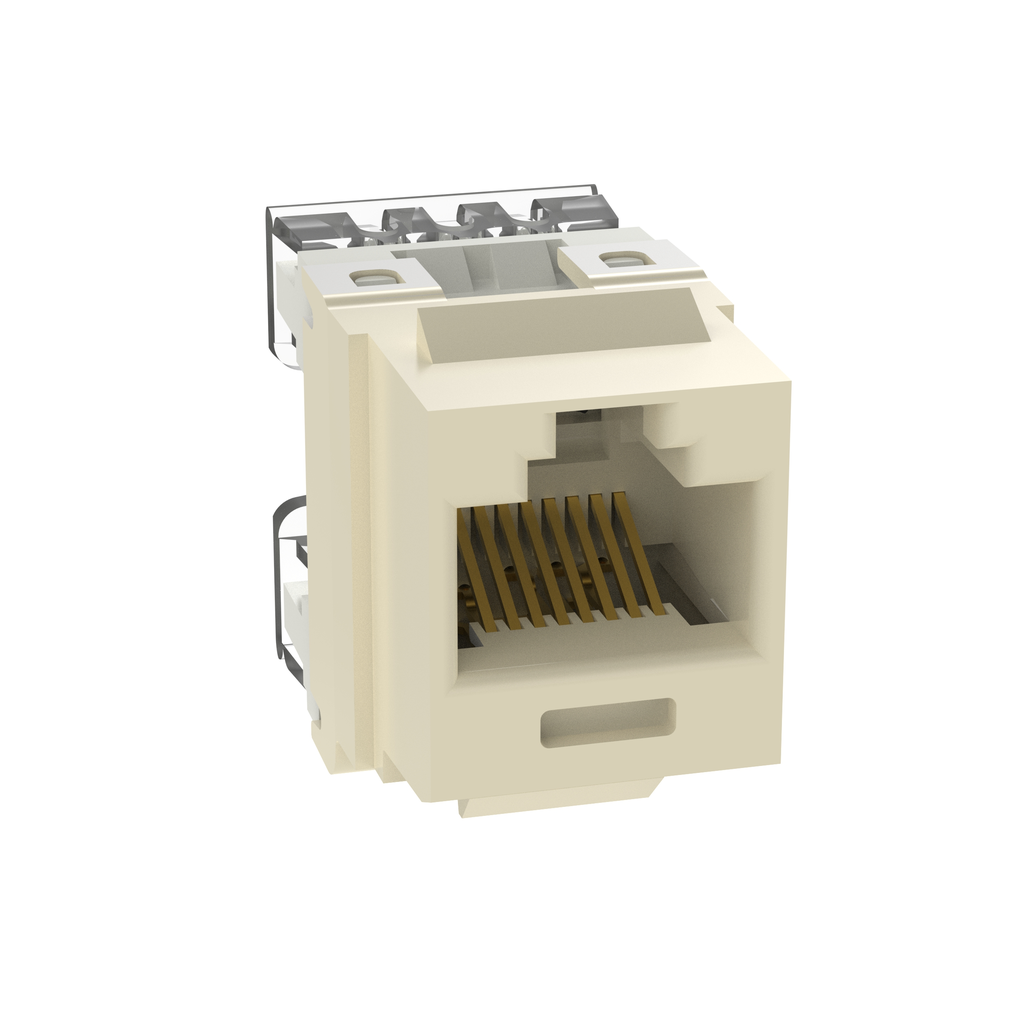

The NetKey® Cat 5e UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is electric ivory.
QTY
  • Product Description
  • Features
  • Specifications
The NetKey® Cat 5e UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is electric ivory.
  • Standards and Certifications
    • Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
  • Packaging Details
    • UPC : 07498310693
    • GTIN Package : 00074983106936
    • Standard Package Volume Ft3 : 0.0032
    • Standard Package Weight Pounds : 0.0240
    • Std Package Height In : 1
    • Std Package Height MM : 25.4
    • Std Package Length In : 3.75
    • Std Package Length MM : 95.25
    • Std Package Width In : 3.2
    • Std Package Width MM : 81.28
    • Std. Pkg. UOM : Piece
    • UOM EA PK : EA
    • Std. Pkg. Qty. : 1
    • GTIN Carton : 50074983106931
    • Standard Carton Volume Ft3 : 0.1605
    • Standard Carton Weight Pounds : 1.2000
    • Std Carton Height In : 3.5
    • Std Carton Height MM : 88.9
    • Std Carton Length In : 10.65
    • Std Carton Length MM : 270.51
    • Std Carton Width In : 7.3
    • Std Carton Width MM : 185.42
    • Std Ctn Qty : 50
    • Min. Order UOM : Piece
    • EAN : 00074983106936
    • REACH Status : N
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 10.0000
    • Pallet Quantity : 16,800
    • Pallet Volume : 53.912136
    • Pallet Weight : 403.2000
    • RoHS Compliant : Compliant
  • Specifications
    • Country of Origin : Costa Rica
    • Any Reason Not to Sell : N
    • Product Segment : EDI-ENT
    • Maximum Storage Temperature (°C) : 75
    • Overall Length (mm) : 29.5
    • Body Material : Polycarbonate
    • Module Type : Keystone
    • Minimum Storage Temperature (°C) : -40
    • Overall Depth (mm) : 29.5
    • Color : Electric Ivory
    • Shield Type : Unshielded (UTP)
    • Note : Punchdown style termination
    • Maximum Operating Temperature (°C) : 75
    • Overall Width (mm) : 16.5
    • Product Type : Jack Module
    • Performance Level : Category 5e
    • Maximum Storage Temperature (°F) : 167
    • Termination Style : Punchdown
    • Minimum Operating Temperature (°F) : 14
    • Sub Brand : NetKey®
    • Connector Type : Jack Module - Standard
    • Overall Height (mm) : 22.9
    • Overall Length (In.) : 1.16
    • Overall Depth (In.) : 1.16
    • Maximum Operating Temperature (°F) : 167
    • Overall Height (In.) : 0.9
    • Overall Width (In.) : 0.65
    • Minimum Storage Temperature (°F) : -40
    • Contact Material : Plated Phosphor Bronze
    • Wiring Scheme : T568A/T568B
    • Minimum Operating Temperature (°C) : -10
