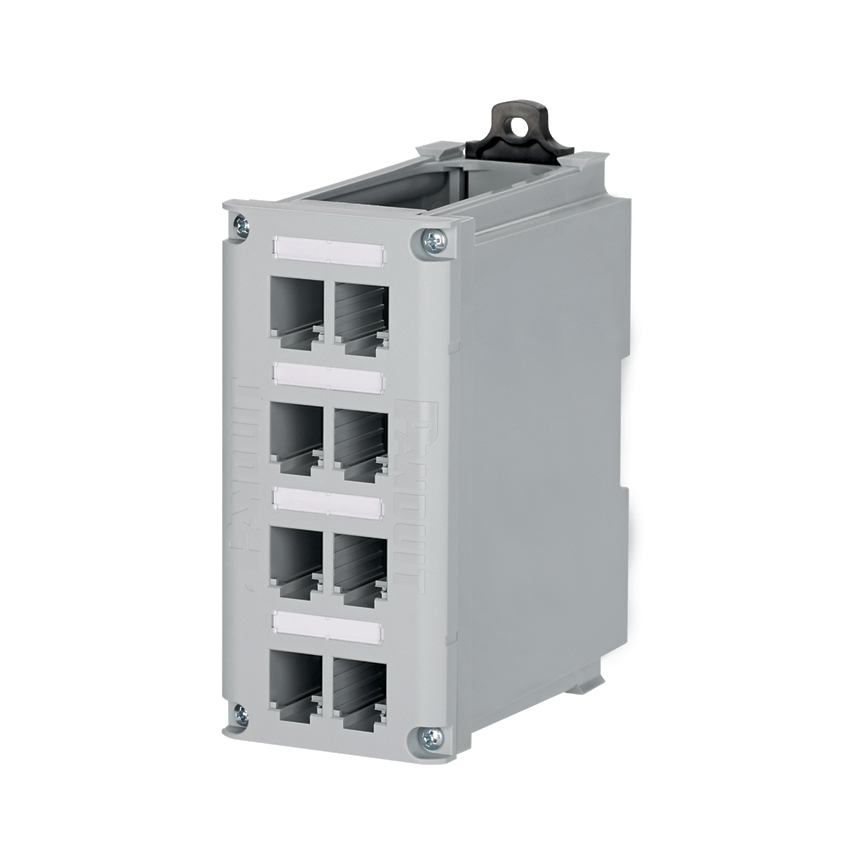

Mini-Com® 8-port DIN Rail Shielded Patch Panel

INDUSTRIALNET, 8-PORT DIN RAIL

PANCDPP8RGS CDPP8RG-S 613056667495
187.08 / EA
http://schema.org/OutOfStock
Mayer-DDS-Mini-Com® 8-port DIN Rail Shielded Patch Panel-1
  • Country of Origin: USA
  • Depth: 117.04 mm, 4.61 in
  • Height: 168.91 mm, 6.65 in
  • Material: Polycarbonate
  • Type: DIN Rail Mount
  • Width: 2.65 in, 67.31 mm
The IndustrialNet™ Copper Shielded DIN Rail Patch Panel is constructed of high impact polycarbonate material. This 8-port DIN rail patch panel mounts to a standard 35mm DIN rail and includes adjustable latches to lock in in place. The Copper DIN Patch Panel can be used with any Mini-Com® Module that occupies a single space. This DIN rail patch panel includes screws to attach faceplate and Ultimate ID® Labels to identify each port, as well as clear label covers.
QTY
  • Product Description
  • Specifications
The IndustrialNet™ Copper Shielded DIN Rail Patch Panel is constructed of high impact polycarbonate material. This 8-port DIN rail patch panel mounts to a standard 35mm DIN rail and includes adjustable latches to lock in in place. The Copper DIN Patch Panel can be used with any Mini-Com® Module that occupies a single space. This DIN rail patch panel includes screws to attach faceplate and Ultimate ID® Labels to identify each port, as well as clear label covers.
  • Specifications
    • Product Segment : IAI
    • Product Type : DIN Rail Mount
    • Patch Panel Style : DIN Rail Mount
    • Material : Polycarbonate
    • Shield Type : Shielded
    • Number of Ports : 8
    • Module Type : Mini-Com®
    • Identification Type : Label Pocket
    • Overall Width (mm) : 67.31
    • Overall Width (In.) : 2.65
    • Standards Met : Norme International Standard CEI IEC 60715; DIN EN 60715; DIN EN 50022; DIN 46277-3; BS 5584:1978; IEC 60068 Environmental Testing; cULus Listed to UL1863, RoHS compliance
    • Sub Brand : IndustrialNet™
    • Overall Depth (mm) : 117.04
    • Overall Depth (In.) : 4.61
    • Overall Height (mm) : 168.91
    • Overall Height (In.) : 6.65
    • Color : Gray
  • Packaging Details
    • UPC : 61305666749
    • GTIN Package : 00613056667495
    • Standard Package Volume Ft3 : 0.1957
    • Standard Package Weight Pounds : 0.7110
    • Std Package Height In : 4.8
    • Std Package Height MM : 121.92
    • Std Package Length In : 10.3
    • Std Package Length MM : 261.62
    • Std Package Width In : 6.5
    • Std Package Width MM : 165.1
    • Std. Pkg. UOM : Piece
    • UOM EA PK : EA
    • Std. Pkg. Qty. : 1
    • GTIN Carton : 50613056667490
    • Standard Carton Volume Ft3 : 1.9571
    • Standard Carton Weight Pounds : 7.1100
    • Std Carton Height In : 14.41
    • Std Carton Height MM : 366.014
    • Std Carton Length In : 22.96
    • Std Carton Length MM : 583.184
    • Std Carton Width In : 10.46
    • Std Carton Width MM : 265.684
    • Std Ctn Qty : 10
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : US
    • RoHS Compliant : Compliant
    • EAN : 00613056667495
    • Hazardous Material Flag : N
    • Min Order Qty : 10
    • Pallet Quantity : 240
    • Pallet Volume : 46.971191
    • Pallet Weight : 170.6400
