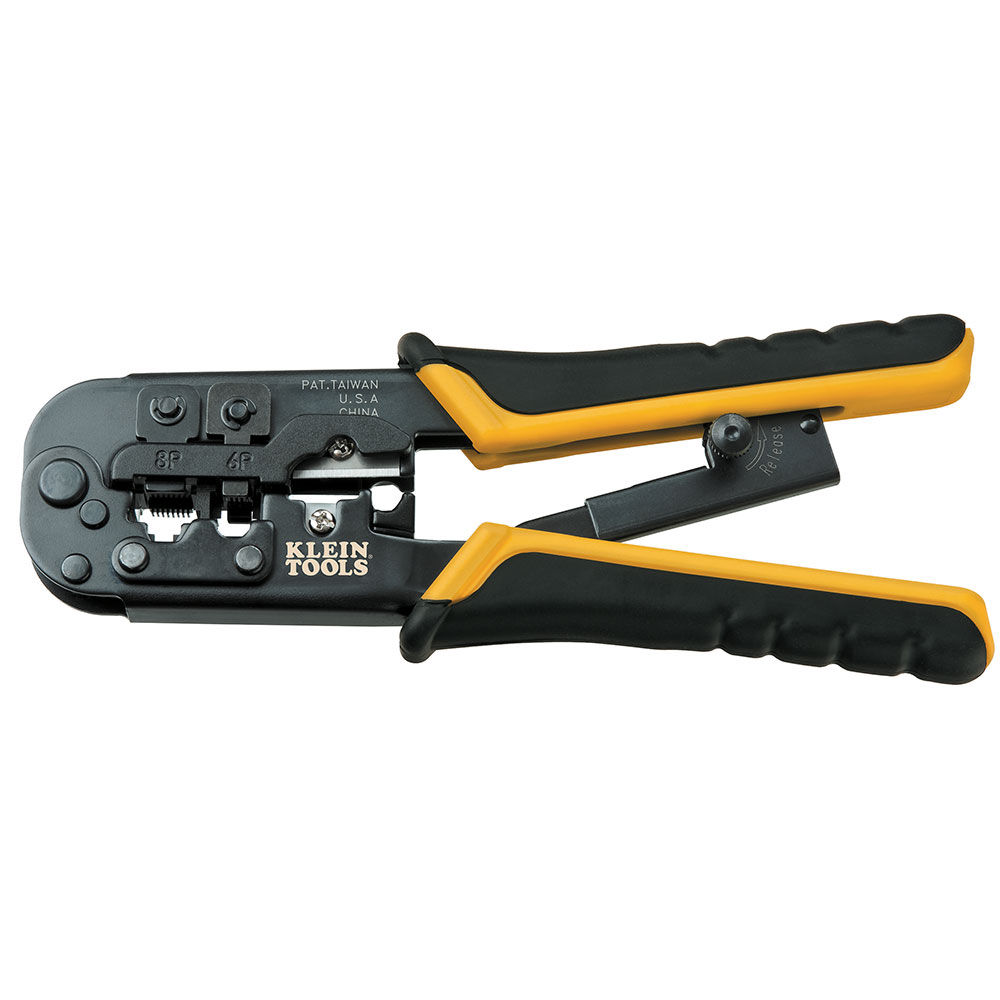

Ratcheting Modular Crimper/Stripper

RATCHETING CRIMPER

KLNVDV226011SEN VDV226-011-SEN 092644580147
39.93 / EA
http://schema.org/OutOfStock
Mayer-DDS-Ratcheting Modular Crimper/Stripper-1
  • Handle Color: Black, Yellow
  • Material: Steel
  • Weight: 0.100 lb
The all-in-one Ratcheting Modular Crimper/Stripper cuts, strips and crimps paired-conductor cables (round STP/UTP and flat-satin phone cables). Durably made from steel and finished in black oxide for high performance, it provides fast, reliable modular-crimp connector installation for voice- and data applications. Other features include: Crimps 4-, 6- and 8-position modular connectors (RJ22, RJ11/RJ12 and RJ45); Designed for Western Electric (WE)/Stewart Stamping (SS)-type modular connectors. Dimensions: 4-Inch x 7.5-Inch x 0.9-Inch. Klein Tools offers a comprehensive line of VDV products created to prep, connect, and test network, phone, CATV, home theater, satellite, and security cables for residential or commercial systems.
QTY
  • Features
  • Specifications
  • Features
    • Fast, reliable modular-crimp connector installation for voice and data applications.
    • All-In-One Tool, cuts, strips and crimps paired-conductor cables (round STP/UTP and flat-satin phone cable).
    • Crimps 4, 6, and 8 position modular connectors (RJ22, RJ11/RJ12, and RJ45).
    • Steel body with black-oxide finish for excellent performance and durability.
    • Crimping dies are precision ground from high-carbon steel.
    • Designed for Western Electric (WE)/Stewart Stamping (SS)-type modular connectors.
    • Ratchet safety-release and a blade-guard on cutting and stripping knives reduce risk of injury.
    • Full-cycle ratchet mechanism prevents the release of the connector prior to full compression.
    • Yellow and black grips enhance comfort, visibility, and allow quick identification.
    • Three crimping dies (8-position, 6-position and 4-position).
    • Cable parameters - 28-22 AWG (.08 - .34 mm²) flat or round; solid or stranded telephone & data.
    • Not for use with AMP® connectors.
    • AMP® is a registered trademark of TYCO, Inc.
    • Replacement blade set available (Cat. No. VDV999-064)
  • Warnings
    • Always wear approved eye protection.
    • NOT insulated. Will NOT protect against electrical shock.
    • Never use on or near live electrical circuits.
    • Read carefully and understand instructions before using this tool.
  • Specifications
    • Position/Pair/Conductors : 4-Position, 1-Pair/2-Conductor, 4-Position, 2-Pair/4-Conductor 6-Position, 2-Pair/4-Conductor, 6-Position, 3-Pair/6-Conductor, 8-Position, 4-Pair/8-Conductor
    • Material : Steel with Black Oxide
    • Type : Crimper
    • Handle Color : Yellow/Black
    • Connector Type : RJ45, RJ11, RJ12 Standard
    • Cable Type : CAT3, CAT5e, CAT6/6A
    • Height : 0.9000 in
    • Width : 4.0000 in
    • Depth : 7.5000 in
    • Weight : 0.1000 lbs
