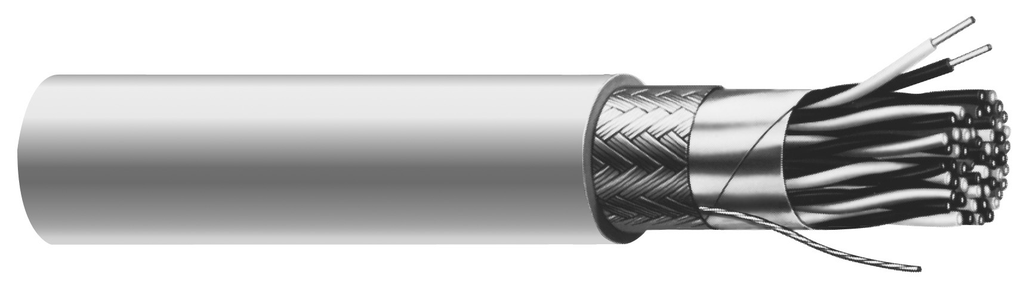

18/2C STRANDED TC SHIELDED PLTC

BLD9318EQUAL 18/2C STR SHLD

GCCC0454A.41.10 C0454A.41.10 079407059232
0.60 / EA
http://schema.org/OutOfStock
Mayer-DDS-18/2C STRANDED TC SHIELDED PLTC-1
  • Country of Origin: USA
  • Flame Retardant: No
  • Jacket Color: Gray
  • Jacket Material: PVC
  • Lead Free: Yes
  • Number of Strands: 16/30
  • UV Resistant: Yes
  • Voltage: 300 V
Conductor: fully annealed stranded tinned copper per ASTM B33 • Twisted pairs Insulation: Premium-grade, coIor-coded PVC or FMPE• Color code: See chart below Shield: 100% Flexfoil® aluminum/polyester, 25% overlap, foil facing out • Stranded tinned copper drain wire • 65% tinned copper braid (C7112A, C7114A and C7116A only) Jacket: PVC, gray or black • Sunlight-resistant • Temperature range: -20°C to +60°C or +105°C Applications: Power-limited circuits • Intercom systems • Business machines • Computer interconnects • Suitably marked for appropriate tray cable installations • Petrochemical control systems • Burglar alarms • Suggested voltage rating: 300 volts Packaging: Please contact Customer Service for packaging and color options † UL Style 2464 only available on PVC insulation constructions
QTY
  • Product Description
  • Features
  • Specifications
Conductor: fully annealed stranded tinned copper per ASTM B33 • Twisted pairs Insulation: Premium-grade, coIor-coded PVC or FMPE• Color code: See chart below Shield: 100% Flexfoil® aluminum/polyester, 25% overlap, foil facing out • Stranded tinned copper drain wire • 65% tinned copper braid (C7112A, C7114A and C7116A only) Jacket: PVC, gray or black • Sunlight-resistant • Temperature range: -20°C to +60°C or +105°C Applications: Power-limited circuits • Intercom systems • Business machines • Computer interconnects • Suitably marked for appropriate tray cable installations • Petrochemical control systems • Burglar alarms • Suggested voltage rating: 300 volts Packaging: Please contact Customer Service for packaging and color options † UL Style 2464 only available on PVC insulation constructions
  • Applications
    • Power-limited circuits
    • Intercom systems
    • Business machines
    • Computer interconnects
    • Suitably marked for appropriate tray cable installations
    • Petrochemical control systems
    • Burglar alarms
    • Suggested voltage rating: 300 volts
    • Building Installations
    • Residential Installations
  • Jacket
    • PVC, gray or black
    • Sunlight-resistant
    • Temperature range: -20°C to +60°C or +105°C
  • Packaging
    • Please contact Customer Service for packaging and color options
  • Conductor
    • fully annealed stranded tinned copper per ASTM B33
    • Twisted pairs
  • Insulation
    • Premium-grade, coIor-coded PVC or FMPE
    • Color code: See chart below
  • Shield
    • 100% Flexfoil® aluminum/polyester, 25% overlap, foil facing out
    • Stranded tinned copper drain wire
    • 65% tinned copper braid (C7112A, C7114A and C7116A only)
  • Specifications
    • Country of Origin : United States
    • AWG Size : 18
    • Conductor Category : Class 2 = stranded
    • Number of Conductors : 2
    • Strand Count : 16/30
    • Shape of Conductor : Round
    • Jacket Color : Gray
    • Jacket Marking : CAROL(R) 18 AWG -- C0454A -- E60233-8 (UL) TYPE PLTC 105C OR C(UL)US TYPE CMG 105C -- FT4 ROHS CE -- MADE IN USA (date code) (sequential footage) (print every 2 ft)
    • Outer Diameter : 0.221 in
    • Thickness Outer Jacket : 0.037 in
    • Insulation Thickness : 0.013 in
    • Armoring Type : None
    • Shield Construction : Metalized foil and braid
    • Shield Material : Aluminium
    • Jacket Material : Polyvinyl chloride (PVC)
    • Voltage : 300 V
    • Silicone Free : No
    • Lead Free : Yes
    • Resistant To Chemicals : Yes
    • Resistant To UV : Yes
    • Resistant To Moisture : No
    • Resistant To Oil : No
    • Flame Retardant : No
    • Halogen Free : No
    • Underground Installation : No
    • With Rodent Protection : No
    • Outdoor Installation : No
