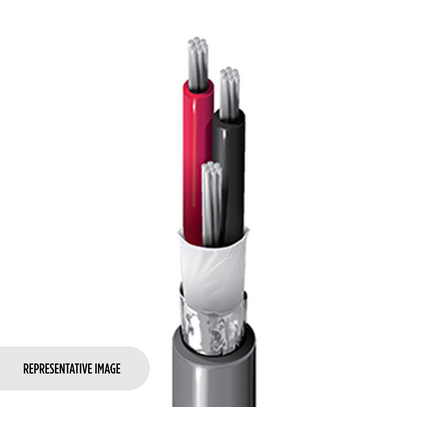

1 Pair 22 AWG stranded (7x30) TC conductors, polypropylene insulation, paper wrap, twisted pair, overall Beldfoil® shield (100% coverage), 22 AWG stranded TC drain wire, PVC jacket.

• Suitable Applications
• for use with automatic stripping equipments
• low voltage analog signals (4-20ma, 0-10v, ...)
• low voltage digital control (24v, …)
• line level audio
• computer communication
• panel wiring

• Specifications
• Environmental Space : Indoor - Riser
• Total Number of Pairs : 1
• Conductor Count : 2
• Conductor Configuration : 1 Pair
• AWG Size : 22
• Conductor Material : Tinned Copper
• Stranding@Conductor1 : 7x30
• Conductor Material and Stranding : Tinned Copper - Stranded
• Material@Insulation01 : PP - Polypropylene
• Insulation Material : Polyolefin (PO, PE, PP)
• Shielding : Multiple or Specialty
• Material : PVC - Polyvinyl Chloride
• Jacket : PVC
• UL voltage rating : 300 V
• Plenum : No
• Region available : Global
• Bulk Cable Weight : 13 lbs/1000ft
• Conductor Size : 22 AWG
• Environmental Suitability : Indoor - Riser, Indoor
• Min Bend Radius During Installation : 1.4 in
• Operating Temp Range : -20°C To +75°C
• Certifications
• NEC/(UL) Compliance : CMR
• CEC/C(UL) Compliance : CMG
• UL Flammability : UL1666 Vertical Shaft
• CSA Flammability : FT4
• APAC Compliance : China RoHS II (GB/T 26572-2011)
