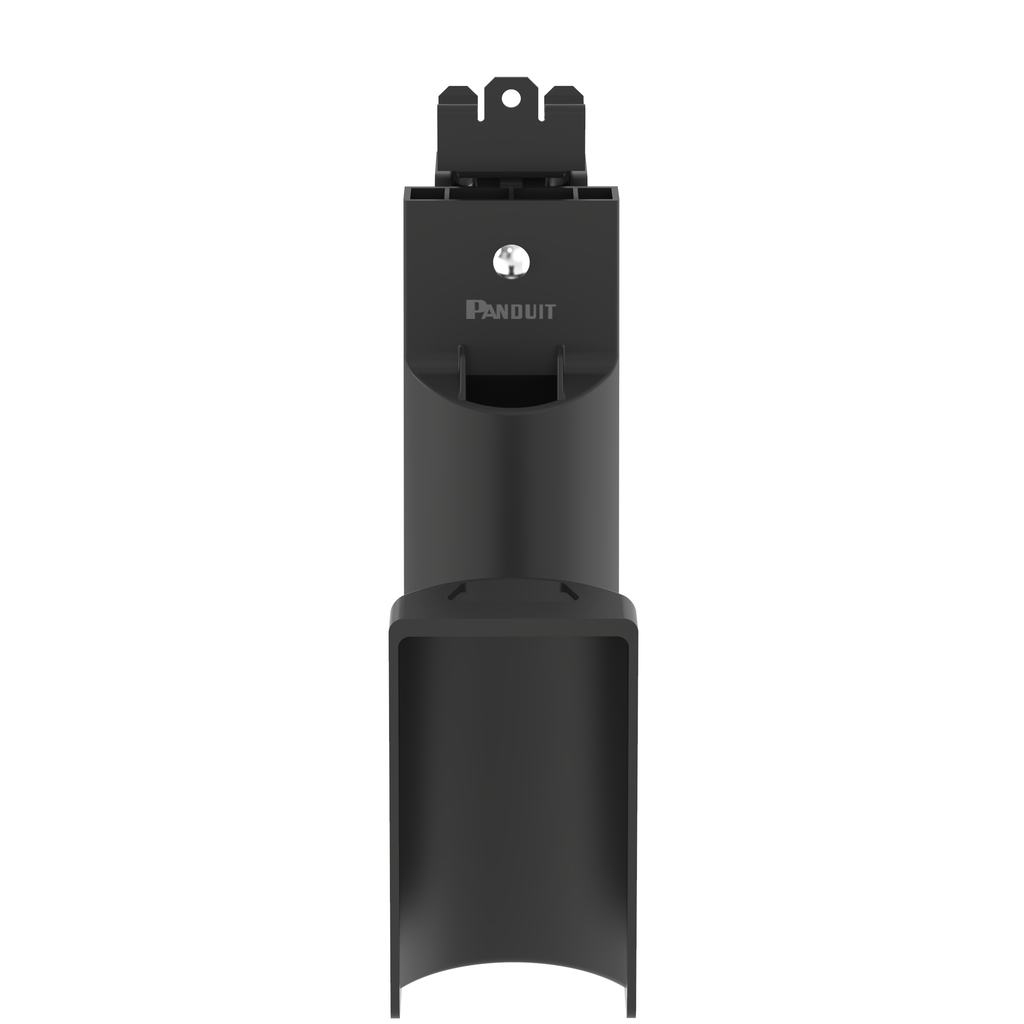

StrongHold™ JP2HBC25RB-L20 J-Hook, Rotating, 0.25", Blk, PA 6.6/Metal, Hammer-on

J HOOK 2" HAMMER ON BC 1/8-1/4

PANJP2HBC25RBL20 JP2HBC25RB-L20 074983966134
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-StrongHold™ JP2HBC25RB-L20 J-Hook, Rotating, 0.25", Blk, PA 6.6/Metal, Hammer-on-1
  • Height: 162.8 mm, 6.4 in
  • Material: Metal, Nylon
  • Mounting Type: Hammer-On
  • Overall Length: 118.7 mm, 4.7 in
  • Type: Cable Support
  • Width: 118.7 mm, 4.7 in
StrongHold JP2HBC25RB-L20 J-Pro™ J hook with Hammer-On Beam Clamps have a patented design, featuring complete horizontal and vertical 1" bend radius control as well as 360 degree rotation. This feature prevents pinch points and degradation of cable performance. They are suitable for use in air handling spaces and are UL listed. For use with flanges 1/8" - 1/4" (3.2mm - 6.4mm) and 2.0” (58.8mm) max bundle capacity. Made of Nylon 6.6, are black in color and come in packages of 50.
QTY
  • Product Description
  • Features
  • Specifications
StrongHold JP2HBC25RB-L20 J-Pro™ J hook with Hammer-On Beam Clamps have a patented design, featuring complete horizontal and vertical 1" bend radius control as well as 360 degree rotation. This feature prevents pinch points and degradation of cable performance. They are suitable for use in air handling spaces and are UL listed. For use with flanges 1/8" - 1/4" (3.2mm - 6.4mm) and 2.0” (58.8mm) max bundle capacity. Made of Nylon 6.6, are black in color and come in packages of 50.
  • Standards and Certifications
    • Standards Met: UL, cULus Listed, RoHS Compliant
  • Prop 65
    • No
  • Packaging Details
    • UPC : 07498396613
    • GTIN Package : 00074983966134
    • Standard Package Volume Ft3 : 1.5833
    • Standard Package Weight Pounds : 17.4700
    • Std Package Height In : 12.95
    • Std Package Height MM : 328.93
    • Std Package Length In : 19.5
    • Std Package Length MM : 495.3
    • Std Package Width In : 12.6
    • Std Package Width MM : 320.04
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 50
    • Standard Carton Volume Ft3 : 0.0000
    • Standard Carton Weight Pounds : 0.0000
    • Std Ctn Qty : 0
    • Min. Order UOM : Piece
    • EAN : 00074983966134
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 50.0000
    • Pallet Quantity : 1,200
    • Pallet Volume : 0.000000
    • Pallet Weight : 419.2800
    • RoHS Compliant : RoHS directive is not applicable
  • Specifications
    • Country of Origin : United States
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Overall Width (In.) : 4.7
    • Category 6 Cable Capacity : 46
    • Sub Brand : StrongHold™
    • Overall Width (mm) : 118.7
    • Mount Method : Hammer-On
    • Overall Length (In.) : 4.7
    • Material : Nylon 6.6/Metal
    • Application : Route High Performance Communication Cabling in Air Handling Spaces
    • Support Type : J-PRO J-Hook System
    • Overall Length (mm) : 118.7
    • Maximum Flange Thickness (mm) : 6.4
    • Overall Height (mm) : 162.8
    • Product Type : Cable Support
    • Maximum Flange Thickness (In.) : 0.25
    • Includes : Hammer-on Beam Clamp
    • Static Load Capacity (kg) : 13.6
    • For Use With : Flanges
    • Category 5e Cable Capacity : 55
    • Color : Black
    • Category 6A Cable Capacity : 30
    • Static Load Capacity (lb) : 30
    • Overall Height (In.) : 6.4
    • Maximum J-Hook Bundle Capacity (In.) : 2
