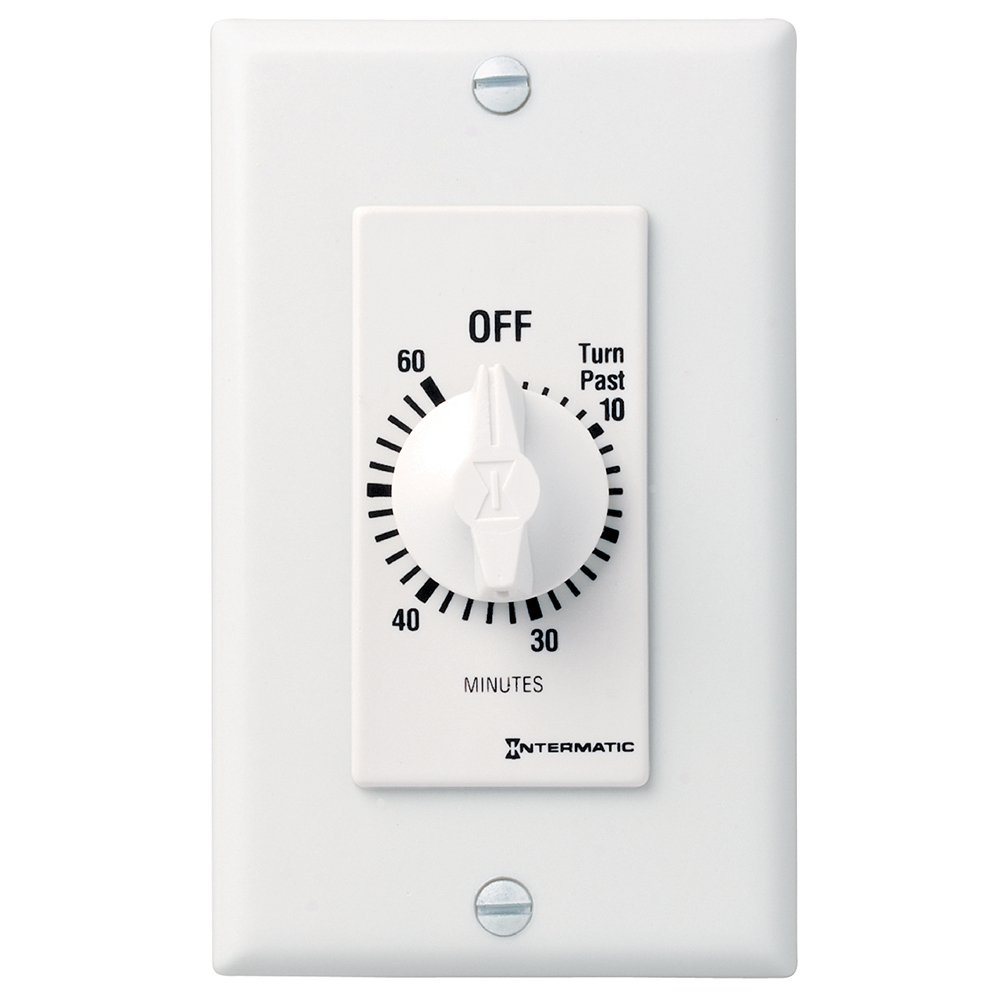

Spring Wound Countdown Timer, Decorator Style, 125-277 VAC, 50/60 Hz, SPST, 60 Minute Max, Without Hold, White

60MIN SPR WND TMR

INTFD60MWC FD60MWC 078275005068
37.02 / Each
http://schema.org/OutOfStock
Spring Wound Countdown Timer, Decorator Style, 125-277 VAC, 50/60 Hz, SPST, 60 Minute Max, Without Hold, White
  • Applications: Air Movement & Ventilation, Indoor Lighting Control, Motor Control, Outdoor Lighting Control
  • Country of Origin: Tunisia
  • Depth: 1.25 in, 31.8 mm
  • Height: 104.8 mm, 4.125 in
  • IsSustainable: Yes
  • Max. Operating Temperature: 120 °F, 49 °C
  • Min. Operating Temperature: 4 °C, 40 °F
  • Switch Type: SPST
  • Warranty Length: 1 yr
The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
QTY
  • Product Description
  • Features
  • Specifications
The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
  • Features
    • 60-minute timer
    • SPST (Single-Pole Single-Throw)
    • No electricity required to operate
    • Replaces any standard or decorator single- or multi-gang wall switch
    • Automatically limits ON time for energy consuming loads
    • Quick and easy installation
    • Time-saving up front terminal connection with teeter-type terminals
    • Breaks circuit at end of timing cycle
    • Incandescent/fluorescent/CFL/LED compatible
    • No neutral connection is required
  • Prop 65
    • Please see the Warning @ www.P65Warnings.ca.gov - DEHP
  • Specifications
    • Country of Origin : Tunisia
    • Product Height : 4.125 in; 104.8 mm
    • Product Depth : 1.25 in; 31.8 mm
    • Operating Temperature Min : 40°F; 4°C
    • Operating Temperature Max : 120°F; 49°C
    • Warranty Period : 1-Year limited
    • In Wall Wiring Configurations : Single
    • Operation Mode : Countdown
    • Color : White
    • Applications : Indoor Lighting Control; Outdoor Lighting Control; Motor Control; Air Movement & Ventilation
    • Application Compatibilities : Incandescent; Fluorescent; CFL; LED
    • Wall Plate Configuration : Single-Gang; Multi-Gang
    • Input Voltage Ranges : 125-277 VAC, 50/60 Hz
    • Countdown Time : 60 min
    • Mechanism Type : Analog/Mechanical
    • Switch Type : SPST
    • Tungsten Incandescent : 7 A, 125 VAC, 50 Hz; 7 A, 125 VAC, 60 Hz; 875 W
    • Hold Mode Included CVL : No
    • Resistive Heater : 20 A, 2500 W, 125 VAC; 10 A, 2500 W, 250 VAC; 10 A, 2770 W, 277 VAC
    • PDF Standards And Certifications : cCSAus; RU
    • Tungsten Incandescent Ranges : 7 A, 125 VAC, 50/60 Hz, 875 W
  • Certifications
    • CSA Certification : cCSAus
    • Other Certifications : RU
  • Load Ratings
    • Motor Load Ratings Ranges : 1 HP, 125 VAC; 2 HP, 250 VAC
