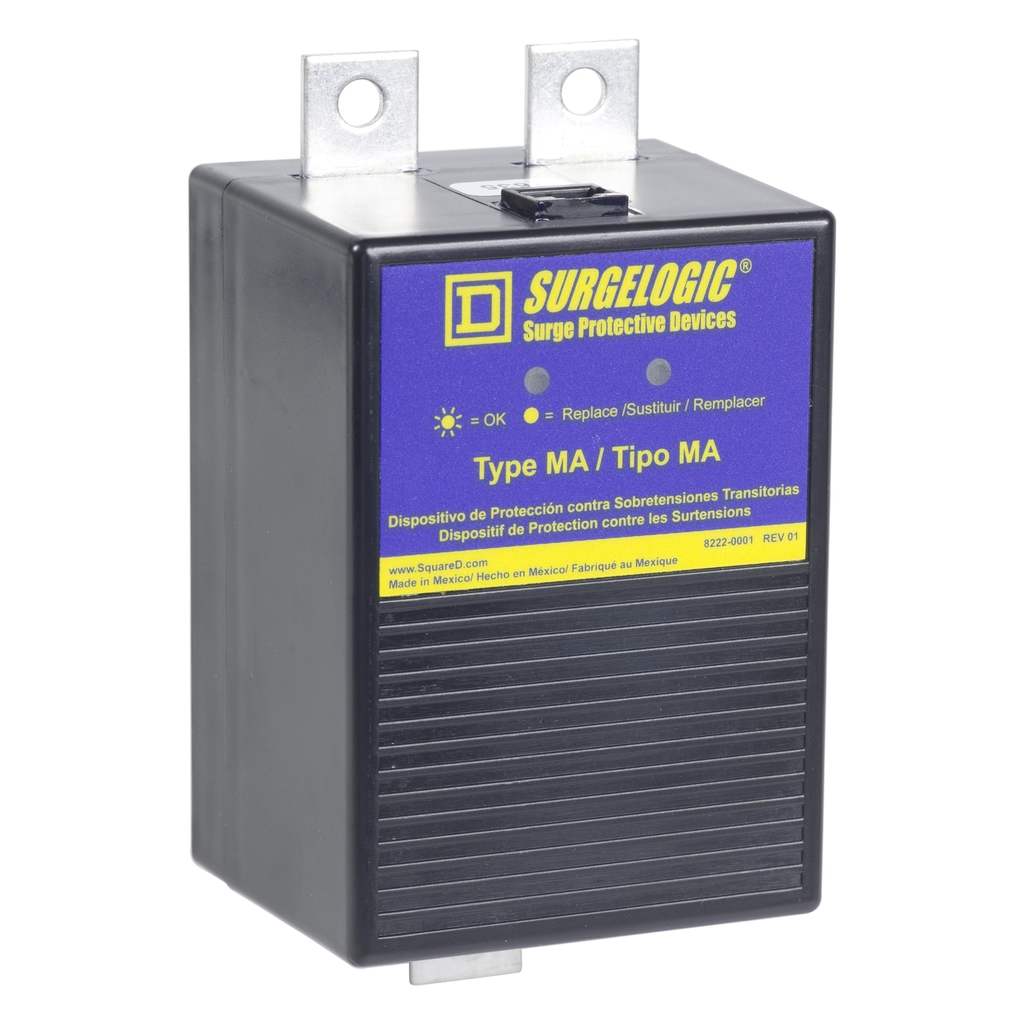

Surge protection module, Surgelogic, MA, 240kA, 480Y/277VAC, 3 phase, 4 wire, SPD type 1

SPD T1 MA MODULE 240KA 480Y/27

SQDMA4IMA241 MA4IMA241 785901075196
1018.51 / EA
http://schema.org/OutOfStock
Mayer-DDS-Surge protection module, Surgelogic, MA, 240kA, 480Y/277VAC, 3 phase, 4 wire, SPD type 1-1
  • Country of Origin: Mexico
  • Depth: 68.3 mm
  • Enclosure Material: Black Plastic
  • Height: 158.8 mm
  • Nominal Discharge Current: 20 kA
  • Width: 82.8 mm
Surgelogic™ EMA replacement modules surge protective devices are apart of modular brick parallel device. The EBA device has multi-stage suppression circuits consisting of field-proven, fast-acting metal oxide varistors (MOVs). These systems provide suppression, enchanced EFI/RFI filtering for all critical modes inside electrical equipment, and shorter lead lengths with superior SPD performance. This surge protection device is 3 phase, 4-wire + ground, 480Y/277 V, 240 kA surge current per phase, and short circuit current rating of 200 kA. They provide better performance with a diagnostic interface with push to test switches, red and green status LEDs, module status LEDs per mode, dry contacts, audible alarm with disable switch, and a surge counter. The device is engineered to UL 489 11th Edition, type 1 SPD and complies with UL 96A 12th Edition Master Label for Lightning Protection Systems.
QTY
  • Product Description
  • Features
  • Specifications
Surgelogic™ EMA replacement modules surge protective devices are apart of modular brick parallel device. The EBA device has multi-stage suppression circuits consisting of field-proven, fast-acting metal oxide varistors (MOVs). These systems provide suppression, enchanced EFI/RFI filtering for all critical modes inside electrical equipment, and shorter lead lengths with superior SPD performance. This surge protection device is 3 phase, 4-wire + ground, 480Y/277 V, 240 kA surge current per phase, and short circuit current rating of 200 kA. They provide better performance with a diagnostic interface with push to test switches, red and green status LEDs, module status LEDs per mode, dry contacts, audible alarm with disable switch, and a surge counter. The device is engineered to UL 489 11th Edition, type 1 SPD and complies with UL 96A 12th Edition Master Label for Lightning Protection Systems.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Height : 158.8 mm
    • Connections - Terminals : terminals
    • Mounting Support : panel mounting
    • Provided Equipment : alarm enable/disable switch
    • Surge Current : 240 kA per phase
    • Nominal Discharge Current : 20 kA
    • Phase : 3 phase
    • Local Signalling : status LED green normal operation
    • Short-Circuit Protection : 200 kA
    • [Uc] Maximum Continuous Operating Voltage : 320 V
    • Wiring Configuration : 4-wire
    • Width : 82.8 mm
    • Depth : 68.3 mm
    • [Ue] Rated Operational Voltage : 480Y/277 V AC
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2002011EN
    • Packaging Without Single Use Plastic : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI2002011EN
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 2768.2454077884
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 17.6319922156
    • Carbon Footprint Of The Distribution Phase [A4] : 0.2 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 2 787 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 1.2616077844
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 2787.303615971
  • Specifications
    • Country of Origin : Mexico
    • Width : 82.8 mm
    • Height : 158.8 mm
    • Range Of Product : Surgelogic
    • Accessory / Separate Part Category : replacement part
    • Product Or Component Type : surge protection module
    • Device Short Name : IMA
  • Environment
    • Ambient Air Temperature For Operation : 65-65 °C
    • Standards : UL 1449:ed. 4 || UL 1283:ed. 5 || CSA C22.2 No 8:1986 || ANSI/IEEE C62.41 || ANSI/IEEE C62.45 || NEC 285
    • Nema Degree Of Protection : NEMA 1
    • Enclosure Material : Black Plastic
