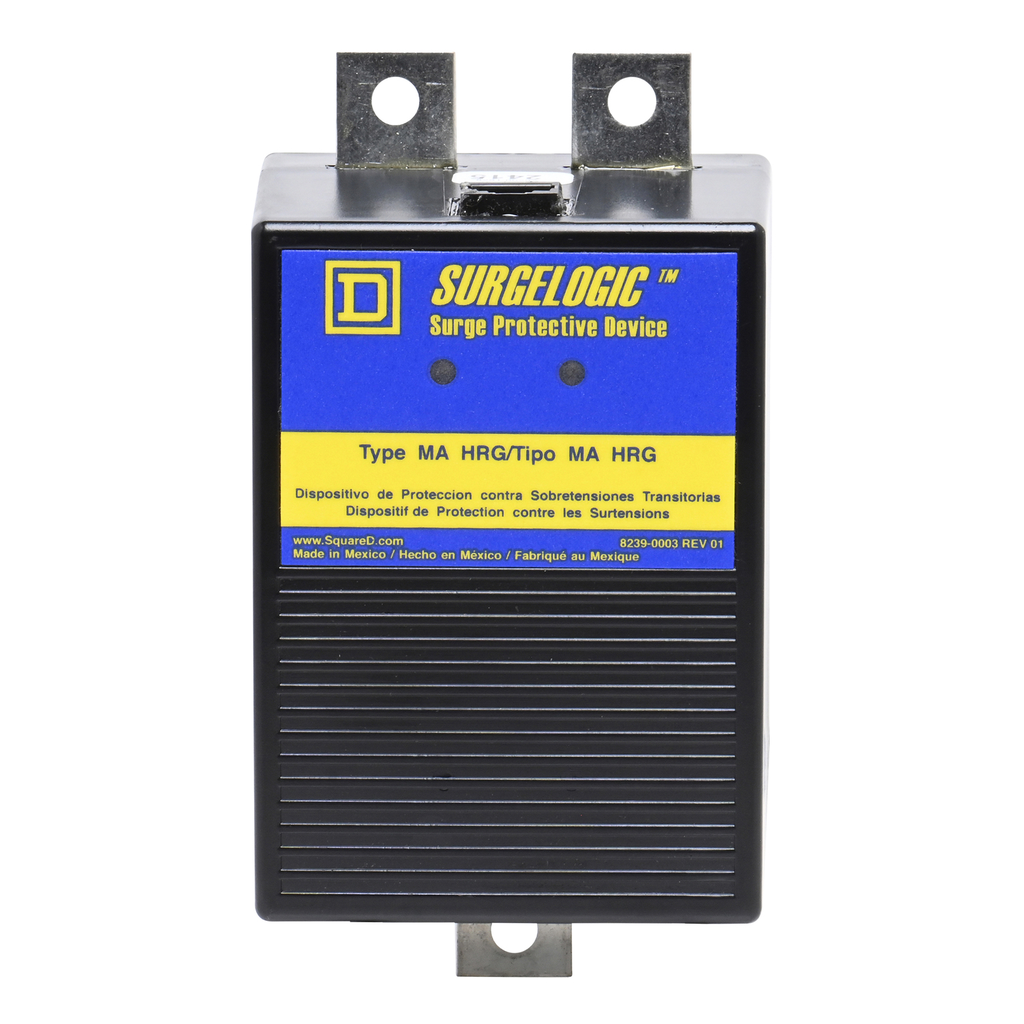

Surge protection module, Surgelogic, MA, 160kA, 600Y/347 VAC, 3 phase, 3 wire, SPD type 2, HRG

SPD T2 MA MODULE 160KA 347V HR

SQDMA8IMA16H MA8IMA16H 785901831778
1032.53 / EA
http://schema.org/OutOfStock
Mayer-DDS-Surge protection module, Surgelogic, MA, 160kA, 600Y/347 VAC, 3 phase, 3 wire, SPD type 2, HRG-2
  • Depth: 68.3 mm
  • Height: 158.8 mm
  • Nominal Discharge Current: 20 kA
  • Warranty Length: 18 mth
  • Width: 82.8 mm
Surgelogic™ Type MA_IMA systems are Type EMA replacement modules. With a surge current rating of 160,000 Amps and enhanced EMI/RFI filtering this SPD uses the service voltage configuration High Resistance Ground system. It has multi-stage suppression circuits consisting of field-proven, fast-acting metal oxide varistors (MOVs). This product is UL and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
Surgelogic™ Type MA_IMA systems are Type EMA replacement modules. With a surge current rating of 160,000 Amps and enhanced EMI/RFI filtering this SPD uses the service voltage configuration High Resistance Ground system. It has multi-stage suppression circuits consisting of field-proven, fast-acting metal oxide varistors (MOVs). This product is UL and CSA certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Height : 158.8 mm
    • Connections - Terminals : terminals
    • Mounting Support : panel mounting
    • Provided Equipment : alarm enable/disable switch
    • Surge Current : 160 kA per phase
    • Nominal Discharge Current : 20 kA
    • Phase : 3 phase
    • Local Signalling : status LED green normal operation
    • Short-Circuit Protection : 200 kA
    • [Uc] Maximum Continuous Operating Voltage : 420 V
    • Wiring Configuration : 3-wire
    • Width : 82.8 mm
    • Depth : 68.3 mm
    • [Ue] Rated Operational Voltage : 600Y/347 V AC
  • Contractual warranty
    • Warranty : 18 months
  • Specifications
    • Width : 82.8 mm
    • Height : 158.8 mm
    • Range Of Product : Surgelogic
    • Accessory / Separate Part Category : replacement part
    • Product Or Component Type : surge protection module
    • Device Short Name : HRG || IMA
  • Offer Sustainability
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Take-Back : No
    • Eu Rohs Directive : Under investigation
