SQUARE D

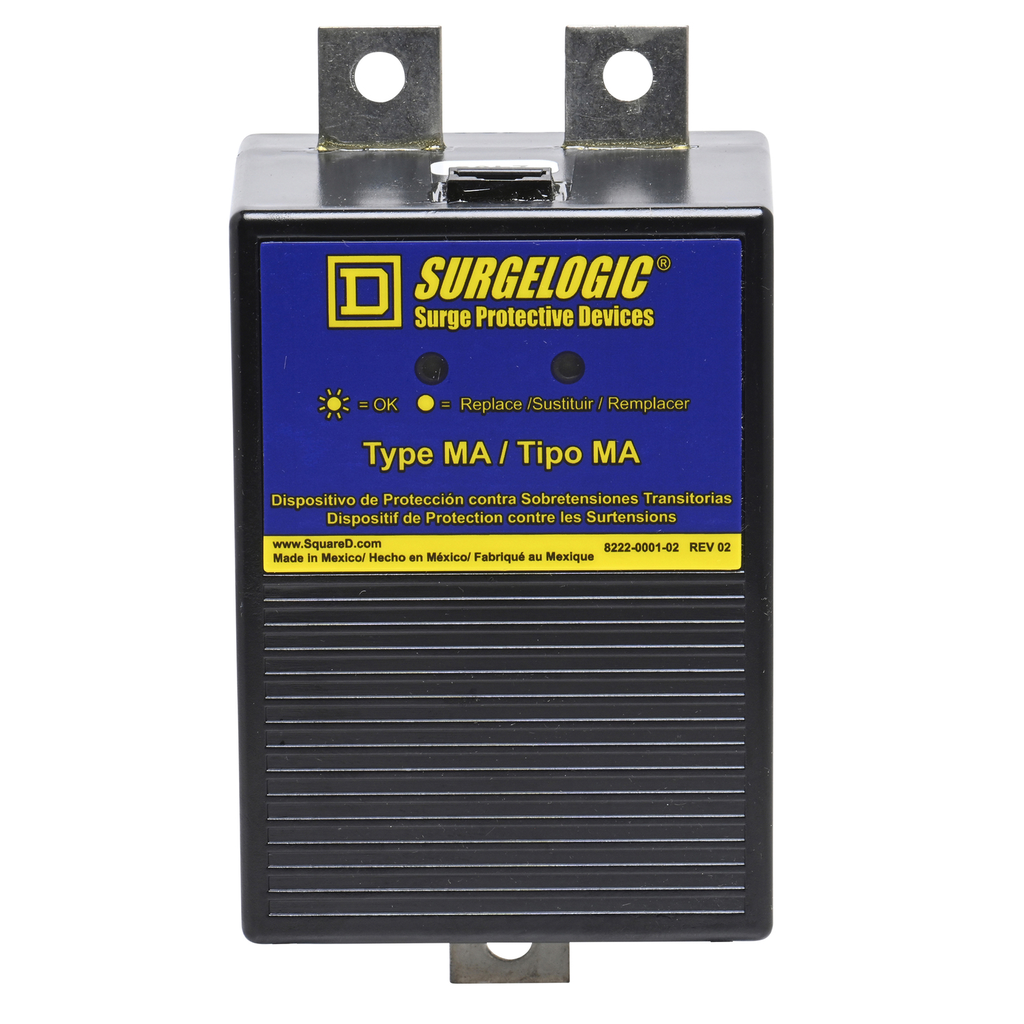

Surge protection module, Surgelogic, MA, 160kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1

SPD T1 MA MODULE 160KA 120/240

SQDMA1IMA161 MA1IMA161 785901974963
652.89 / EA
http://schema.org/OutOfStock
Mayer-DDS-Surge protection module, Surgelogic, MA, 160kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1-2
  • Country of Origin: Mexico
  • Depth: 68.3 mm
  • Enclosure Material: Black Plastic
  • Height: 158.8 mm
  • Nominal Discharge Current: 20 kA
  • Width: 82.8 mm
Surgelogic™ Type MA_IBA systems are module assembelies intended for use on the line side of the service enterance and as replacements for Type EBA surgical protection devices. Being modular in design, this unit is able to provide a surge current rating of 240,000 Amps in severe electrical conditions through immediate responses from its advance diagnostic system. With several optional features (remote monitor, flush mounts, integral switches and EMI/RFI filtering) these SPDs use the WYE system to provide exeptional versatility. This product is UL and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
Surgelogic™ Type MA_IBA systems are module assembelies intended for use on the line side of the service enterance and as replacements for Type EBA surgical protection devices. Being modular in design, this unit is able to provide a surge current rating of 240,000 Amps in severe electrical conditions through immediate responses from its advance diagnostic system. With several optional features (remote monitor, flush mounts, integral switches and EMI/RFI filtering) these SPDs use the WYE system to provide exeptional versatility. This product is UL and CSA certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Height : 158.8 mm
    • Connections - Terminals : terminals
    • Mounting Support : panel mounting
    • Provided Equipment : alarm enable/disable switch
    • Surge Current : 160 kA
    • Nominal Discharge Current : 20 kA
    • Phase : 1 phase
    • Local Signalling : status LED green normal operation
    • Short-Circuit Protection : 200 kA
    • [Uc] Maximum Continuous Operating Voltage : 150 V
    • Width : 82.8 mm
    • Wiring Configuration : 3-wire
    • Depth : 68.3 mm
    • [Ue] Rated Operational Voltage : 120/240 V AC
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Take-Back : No
    • Sustainable Packaging : No
    • Eu Rohs Directive : Compliant with Exemptions
  • Specifications
    • Country of Origin : Mexico
    • Width : 82.8 mm
    • Height : 158.8 mm
    • Range Of Product : Surgelogic
    • Accessory / Separate Part Category : replacement part
    • Product Or Component Type : surge protection module
    • Device Short Name : IMA
  • Environment
    • Standards : UL 1449:ed. 4 || UL 1283:ed. 5 || CSA C22.2 No 8:1986 || ANSI/IEEE C62.41 || ANSI/IEEE C62.45 || NEC 285
    • Nema Degree Of Protection : NEMA 1
    • Enclosure Material : Black Plastic
