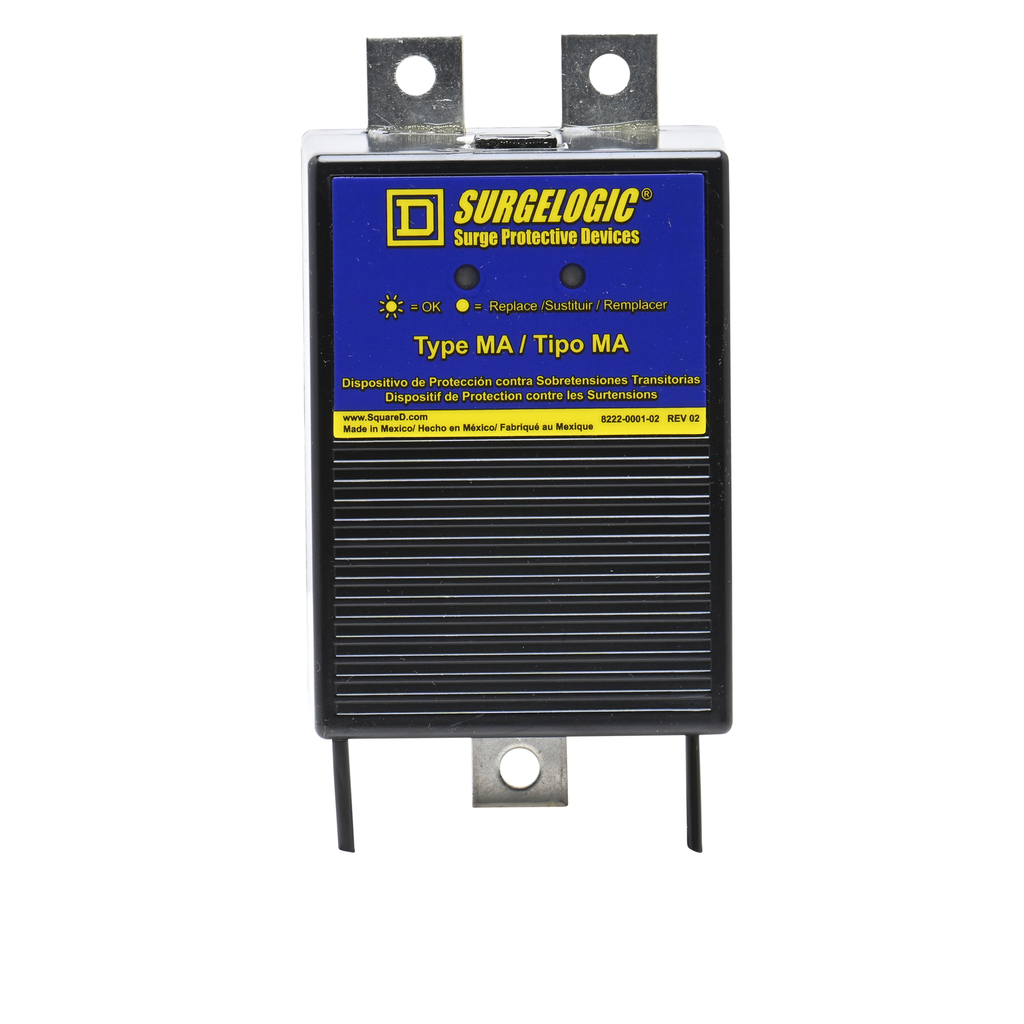

Surge protection module, Surgelogic, MA, 120kA, 480Y/277 VAC, 3 phase, 4 wire, SPD type 1

SPD T1 MA MODULE 120KA 480Y/27

SQDMA4IMA121 MA4IMA121 785901075134
626.78 / EA
http://schema.org/OutOfStock
Mayer-DDS-Surge protection module, Surgelogic, MA, 120kA, 480Y/277 VAC, 3 phase, 4 wire, SPD type 1-2
  • Country of Origin: Mexico
  • Depth: 68.3 mm
  • Enclosure Material: Black Plastic
  • Height: 158.8 mm
  • Nominal Discharge Current: 20 kA
  • Width: 82.8 mm
Surgelogic™ Type MA_IMA systems are Type EMA replacement modules. With a surge current rating of 200,000 Amps and enhanced EMI/RFI filtering this SPD uses the service voltage configuration High Resistance Ground system. It has multi-stage suppression circuits consisting of field-proven, fast-acting metal oxide varistors (MOVs). This product is UL and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
Surgelogic™ Type MA_IMA systems are Type EMA replacement modules. With a surge current rating of 200,000 Amps and enhanced EMI/RFI filtering this SPD uses the service voltage configuration High Resistance Ground system. It has multi-stage suppression circuits consisting of field-proven, fast-acting metal oxide varistors (MOVs). This product is UL and CSA certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Height : 158.8 mm
    • Connections - Terminals : terminals
    • Mounting Support : panel mounting
    • Provided Equipment : alarm enable/disable switch
    • Surge Current : 120 kA
    • Nominal Discharge Current : 20 kA
    • Phase : 3 phase
    • Local Signalling : status LED green normal operation
    • Short-Circuit Protection : 200 kA
    • [Uc] Maximum Continuous Operating Voltage : 320 V
    • Width : 82.8 mm
    • Wiring Configuration : 4-wire
    • Depth : 68.3 mm
    • [Ue] Rated Operational Voltage : 480Y/277 V AC
  • Specifications
    • Country of Origin : Mexico
    • Width : 82.8 mm
    • Height : 158.8 mm
    • Range Of Product : Surgelogic
    • Accessory / Separate Part Category : replacement part
    • Product Or Component Type : surge protection module
    • Device Short Name : IMA
  • Environment
    • Standards : UL 1449:ed. 4 || UL 1283:ed. 5 || CSA C22.2 No 8:1986 || ANSI/IEEE C62.41 || ANSI/IEEE C62.45 || NEC 285
    • Nema Degree Of Protection : NEMA 1
    • Enclosure Material : Black Plastic
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Take-Back : No
    • Sustainable Packaging : No
    • Eu Rohs Directive : Compliant with Exemptions
