SQUARE D

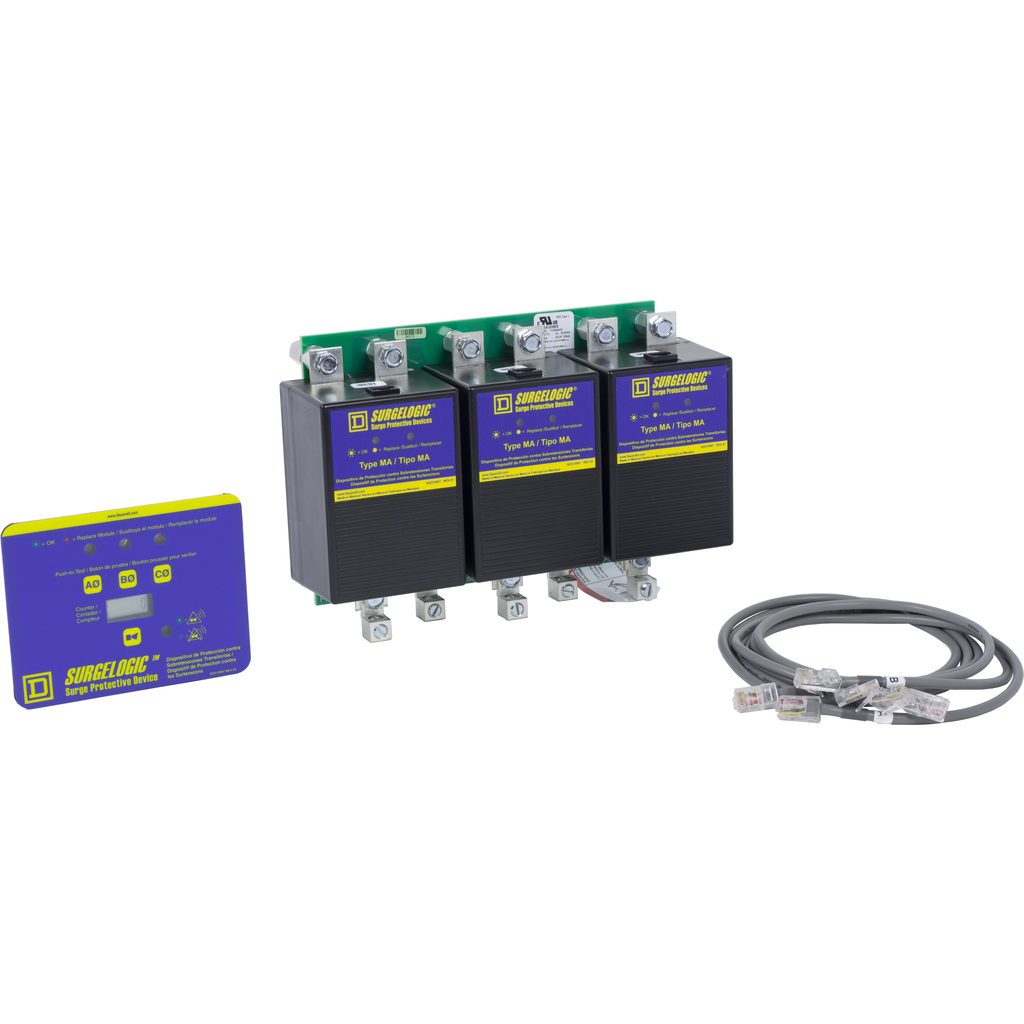

OEM assembler kit, Surgelogic, 240kA, 480Y/277 VAC, 3 phase, 4 wire, SPD type 1

SPDT1IMA-OEMBUSWAY240KA480Y/27

SQDTVS4IMA24O1 TVS4IMA24O1 785901946267
7668.47 / EA
http://schema.org/OutOfStock
Mayer-DDS-OEM assembler kit, Surgelogic, 240kA, 480Y/277 VAC, 3 phase, 4 wire, SPD type 1-1
  • Depth: 92.7 mm
  • Height: 155.7 mm
  • Mounting Type: Surface
  • Number of Phases: 3
  • Standard: CSA C22.2 No 8:1986, IEC 61643-1, UL 1283, UL 1449:ed. 4, UL 96A:ed. 12
  • Width: 250.4 mm
Surgelogic™ Type IMA systems are internal surgical protection devices with a focus on service entrance and critical branch panel surge suppresion. With a surge current rating of 240,000 Amps and enhanced EMI/RFI filtering, this unit is retrofitted to be installed in a wide variety OEM Busway units. This unit uses the WYE system to allow two different voltages using three and single phase devices. This product is UL and CSA certified.
QTY
  • Product Description
  • Specifications
Surgelogic™ Type IMA systems are internal surgical protection devices with a focus on service entrance and critical branch panel surge suppresion. With a surge current rating of 240,000 Amps and enhanced EMI/RFI filtering, this unit is retrofitted to be installed in a wide variety OEM Busway units. This unit uses the WYE system to allow two different voltages using three and single phase devices. This product is UL and CSA certified.
  • Specifications
    • Range Of Product : Surgelogic
    • Product Or Component Type : surge protection device
    • Device Short Name : IMA
  • Offer Sustainability
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Rohs Exemption Information : Yes
    • Eu Rohs Directive : Compliant with Exemptions
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Height : 155.7 mm
    • Connections - Terminals : lugs AWG 12...AWG 2 aluminium/copper 4 N.m
    • Short-Circuit Protection : 200 kA
    • Provided Equipment : alarm enable/disable switch || diagnostic display || backplane || cables
    • [Uc] Maximum Continuous Operating Voltage : 320 V
    • Surge Current : 240 kA per phase
    • Wiring Configuration : 4-wire
    • Width : 250.4 mm
    • Depth : 92.7 mm
    • Nominal Discharge Current : 20 kA
    • Phase : 3 phase
    • [Ue] Rated Operational Voltage : 480Y/277 V AC
    • Device Mounting : surface
  • Environment
    • Nema Degree Of Protection : NEMA 1
    • Standards : UL 1449:ed. 4 || CSA C22.2 No 8:1986 || UL 96A:ed. 12 || UL 1283 || IEC 61643-1
