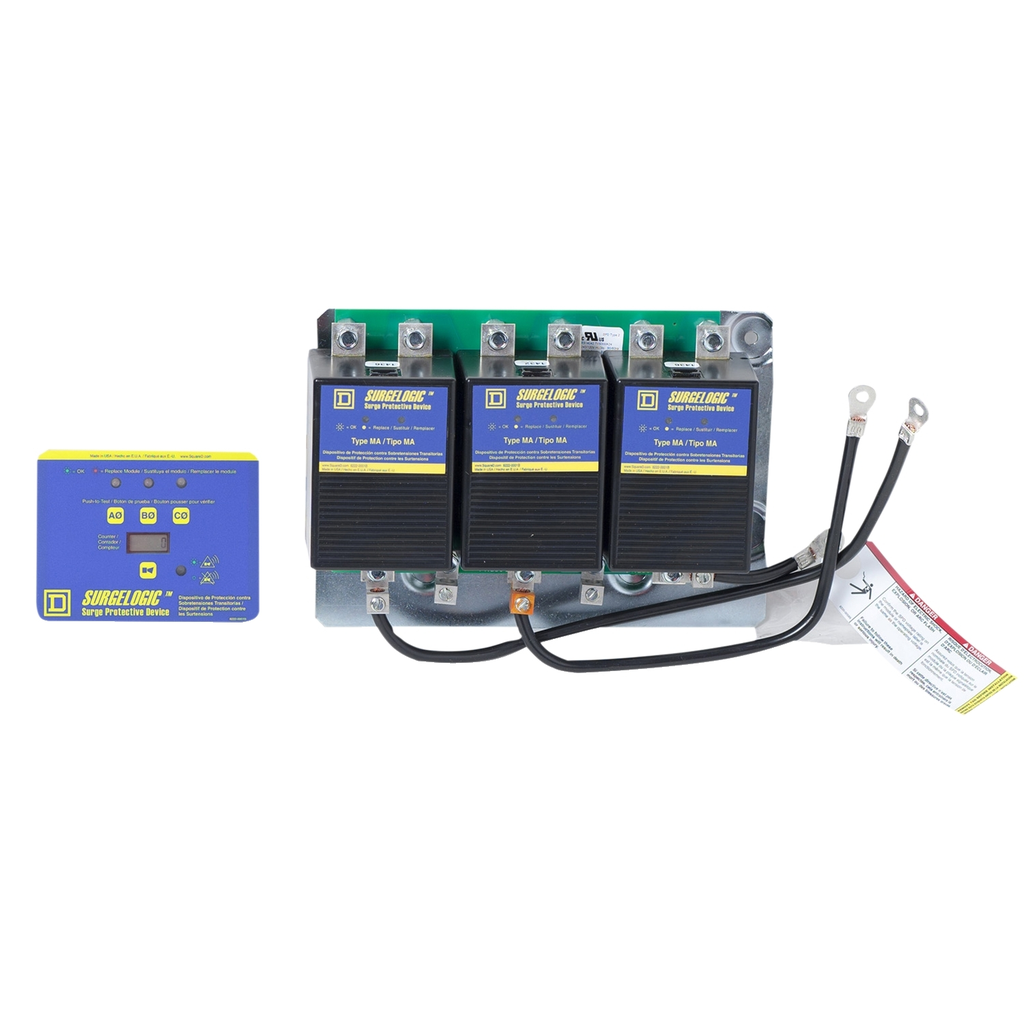

Surgelogic™ Type IMA systems are OEM/assembler kits designed to integrate high-performance surge suppression directly into custom-built equipment. This enabling manufacturers to deliver enhanced protection within tailored solutions. Complies with requirements of NEC Article 285 and CSA 22.2 No. 8-M1986, as appropriate. With a surge current rating of 240,000 Amps and type 1. Designed for 480VAC delta three phase systems. This product is UL and CSA certified.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Conformance Attributes
• Standards : UL 1449:ed. 4, UL 1449:ed. 4, CSA C22.2 No 8:1986, CSA C22.2 No 8:1986, UL 96A:ed. 12, UL 96A:ed. 12, UL 1283, IEC 61643-1
• Complementary Attributes
• UE Rated Operational Voltage : 480 V delta AC, 480 V delta AC
• Important Information Attributes
• Persona Type Ids : EU, LC, OM
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer
• Provided Equipment : alarm enable/disable switch, alarm enable/disable switch, diagnostic display, backplane, cables
• Carbon Footprint Of The Distribution Phase A4 : 0.4881512991653398, 0.5 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 7 kg CO2 eq., 6.857149574103032
• Carbon Footprint Of The Installation Phase A5 : 0.004620149483889871, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 43 kg CO2 eq., 42.50882408816905
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 85 kg CO2 eq., 84.6726403455632
• Connections Terminals : lugs AWG 12...AWG 2 aluminium/copper 4 N.m, lugs AWG 12...AWG 2 aluminium/copper 4 N.m, lugs AWG 12...AWG 2 aluminium/copper 4 N.m, lugs AWG 12...AWG 2 aluminium/copper 4 N.m
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Device Type : Surge Protection and Power Conditioning - Surge Protection Devices
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Legacy WEEE Scope : In
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2508025EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Dangerous Goods Code : LITHIUM METAL BATTERIES IN EQUIP. CELL : ≤ 1g AND > 4 Cells in Package
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• H And D Domain : Safety
• H And D Subrange : SPD NEMA
• H And D Enrichment Assignment : yes
• H And D Enrichment Function : SPD
• H And D Enrichment Class 3 : Surge protection devices
• H And D Enrichment Class 4 : SPD Type 1
• Device Short Name : IMA
• Energy Efficiency Optimized : False
• Package Weight Lbs : 3.81 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : surge protection device
• Range Of Product : Surgelogic
• Returnability : No
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 135 kg CO2 eq.
• Wiring Configuration : 3-wire
• Pep Code : ENVPEP2508025EN
• Pep Verification Date : 2025-08-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : Protect, against direct and indirect effects of lightning or against transient overvoltages, electronic equipment connected to networks with a rated operational voltage of up to 1000 V AC or 1500 V DC, via a surge arrester of type T, with Np poles, according to the appropriate use scenario, and for the reference service life of the product of 20 years.
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 134.53138545648451
• Circularity Profile : ENVEOLI2508025EN
• Environmental Disclosure : ENVPEP2508025EN
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : Yes
• Pep Code : ENVPEP2508025EN
• Pep Verification Date : 2025-08-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Provided Equipment : alarm enable/disable switch, alarm enable/disable switch, diagnostic display, backplane, cables
• Product Or Component Type : surge protection device
• Range Of Product : Surgelogic
• Surge Protection And Filtering Attributes
• Surge Current : 240 kA per phase, 240 kA per phase
