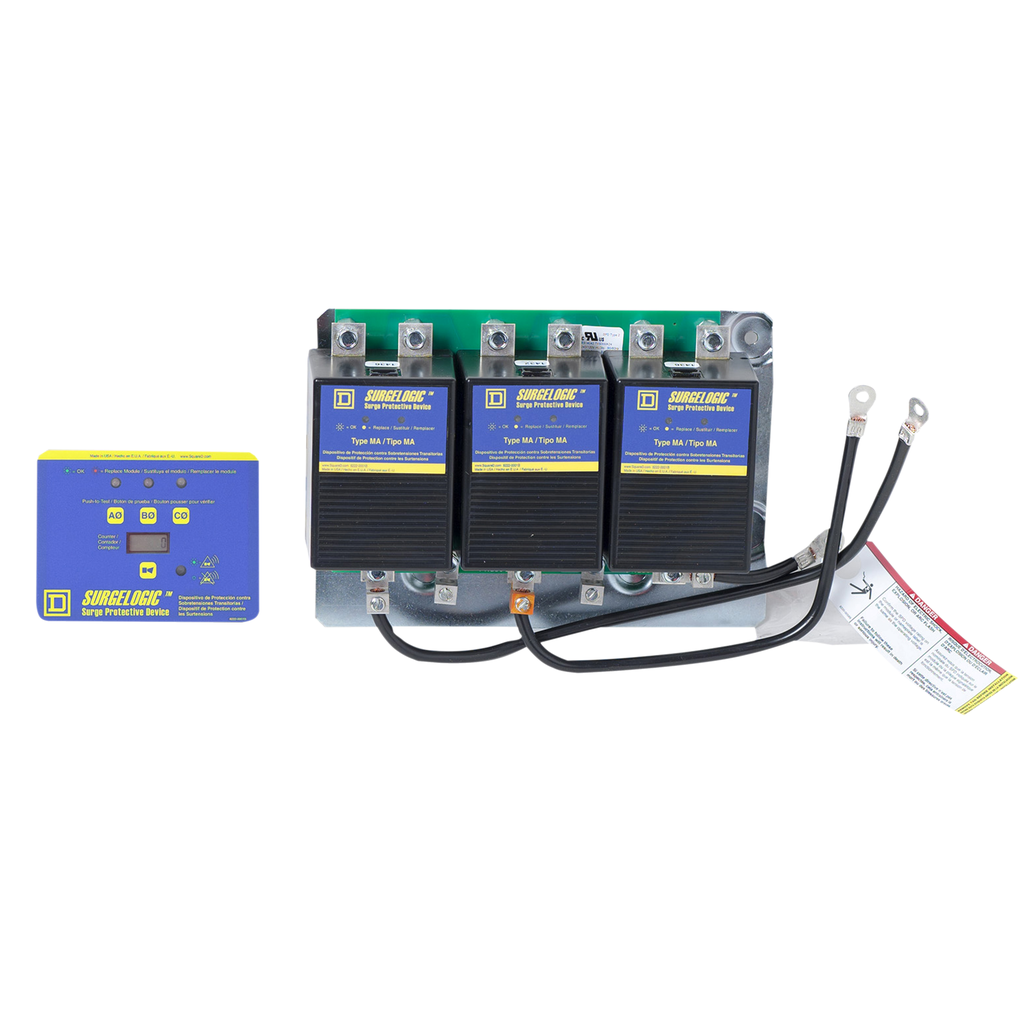

OEM assembler kit, Surgelogic, 240kA, 208Y/120 VAC, 3 phase, 4 wire, SPD type 2

SPD T2 IMA-OEM BUSWAY 240KA 20

SQDTVS2IMA24O TVS2IMA24O 785901599197
7511.89 / EACH
http://schema.org/OutOfStock
Mayer-DDS-OEM assembler kit, Surgelogic, 240kA, 208Y/120 VAC, 3 phase, 4 wire, SPD type 2-1
  • Depth: 92.7 mm
  • Height: 155.7 mm
  • Number of Phases: 3
  • Standard: CSA C22.2 No 8:1986, IEC 61643-1, UL 1283, UL 1449:ed. 4, UL 96A:ed. 12
  • Warranty Length: 18 mth
  • Width: 250.4 mm
Square D™ load center surge protective devices, TVS2IMA24O, are easy to install plug-in units that install as quickly as a standard circuit breaker. The surge suppressors use two pole spaces in a QO™ or Homeline™ load center, or NQ panelboard. US and Canadian UL® Listed as Type 2 SPD to the UL 1449 standard. Complies with requirements of NEC® Article 285, CSA 233.1-87, and CSA C22.2 No. 8- M1986 as appropriate. This device provides 80 kA of short circuit protection and 80 kA of surge protection per phase and comes in consumer package. The surge protection device is in a NEMA 1 house. The surge protection device is service entrance mounted. The surge protection device is CSA certifed by UL.
QTY
  • Product Description
  • Specifications
Square D™ load center surge protective devices, TVS2IMA24O, are easy to install plug-in units that install as quickly as a standard circuit breaker. The surge suppressors use two pole spaces in a QO™ or Homeline™ load center, or NQ panelboard. US and Canadian UL® Listed as Type 2 SPD to the UL 1449 standard. Complies with requirements of NEC® Article 285, CSA 233.1-87, and CSA C22.2 No. 8- M1986 as appropriate. This device provides 80 kA of short circuit protection and 80 kA of surge protection per phase and comes in consumer package. The surge protection device is in a NEMA 1 house. The surge protection device is service entrance mounted. The surge protection device is CSA certifed by UL.
  • Environment
    • Nema Degree Of Protection : NEMA 2
    • Standards : UL 1449:ed. 4 || CSA C22.2 No 8:1986 || UL 96A:ed. 12 || UL 1283 || IEC 61643-1
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Rohs Exemption Information : Yes
    • Eu Rohs Directive : Compliant with Exemptions
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Height : 155.7 mm
    • Connections - Terminals : lugs AWG 12...AWG 2 aluminium/copper 4 N.m
    • Short-Circuit Protection : 200 kA
    • Provided Equipment : alarm enable/disable switch || diagnostic display || backplane || cables
    • [Uc] Maximum Continuous Operating Voltage : 150 V
    • Surge Current : 240 kA per phase
    • Width : 250.4 mm
    • Wiring Configuration : 4-wire
    • Depth : 92.7 mm
    • Nominal Discharge Current : 20 kA
    • Phase : 3 phase
    • [Ue] Rated Operational Voltage : 208Y/120 V AC
  • Specifications
    • Width : 250.4 mm
    • Height : 155.7 mm
    • Range Of Product : Surgelogic
    • Product Or Component Type : surge protection device
    • Device Short Name : IMA
