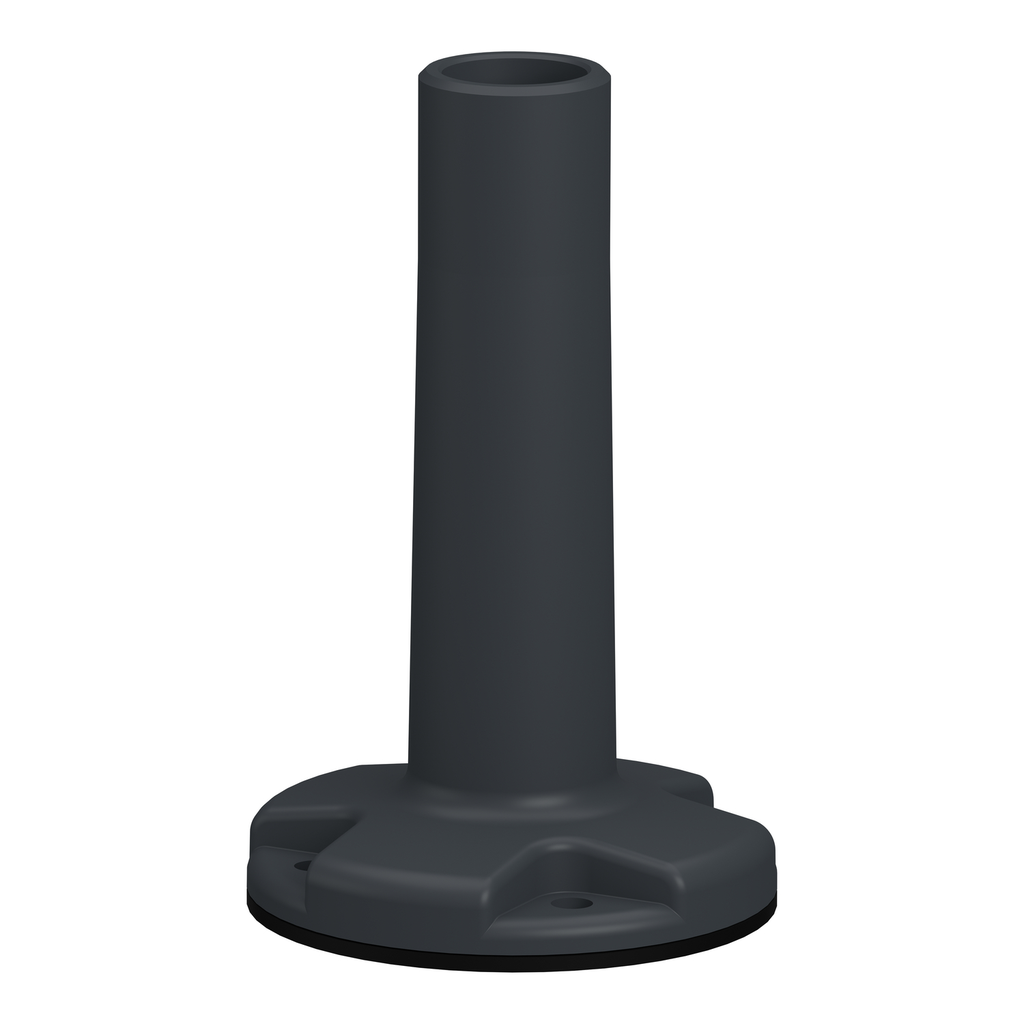

This fixing plate comprising a tube is part of the Harmony XVB7, XV6, and XV4 ranges, featuring modular tower lights designed for easy customer assembly. It is designed for easy mounting of a base module with bottom cable entry (a gasket and fixing screws are included). The XVZ02 dark grey fixing plate features a plastic base and an aluminium tube measuring 100mm in height and 25mm in diameter. It is impact, dust, water, and vibration resistant thanks to its IP66 rating, making it ideal for operation in harsh environments. It weighs 81g. This fixing plate is compatible with the XVZ09 wall mounting bracket or the XVZ07 and XVZ08 adapters. The Harmony range of tower lights features a sleek design incorporating energy-efficient LEDs to maximize brightness while minimizing energy consumption.

• Features
• Modular concept provides flexibility in the selection
• Elevated modern design
• Rationalized construction that reduces Stock-Keeping Units by 3X
• IP66, making it ideal for operation in harsh environments
• Configurable color combinations for wide applications

• Physical Attributes
• Color : dark grey
• Important Information Attributes
• Carbon Footprint Of The Distribution Phase A4 : 0.02266827311186132, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.06475131647519441
• Carbon Footprint Of The Installation Phase A5 : 0.00036097186219821633, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.8 kg CO2 eq., 0.7817543669110496
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Pre Comm Announcement Date : 2025-02-06
• Pre Comm Date : 2025-02-06
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2501029EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Cable Entry : bottom entry
• Material : plastic
• Package Weight Lbs : 65.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : accessory
• Provided Equipment : gasket
• Returnability : Yes
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 0.9 kg CO2 eq.
• Accessory Separate Part Type2 : plastic fixing plate with pole
• Medium Desc : Universal Mounting Accessory, XV4/XV6/XVB7 Modular Tower Light, Plastic Fixing Plate With Pole, Grey
• Stocking Flag : N
• Product Kit Identifier : N
• Pep Code : ENVPEP2501029EN
• Database Version : 2024-01
• Pep Verification Date : 2025-06-28
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : The major function of the Harmony XVB7 range of products is to offer optical or audio signalling to operators, technicians, supervisors and other people who are engaged in the work specifically to identify the various states or sequences of a machine or installation from a distance through 360° in life span of 10 years.This product will be active for 73% of the time with a power consumption of 8.4W and adhering to standards IEC 60947-5-1.
• Functional Unit Unit : unit
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; High voltage; 2020; Germany, DE
• Energy Model Installation A5 2 : No energy used
• Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; Global, GLO
• Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
• Global Commercial Status : Commercialised
• Environment Attributes Main
• Take Back : No, Nej
• EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
• Product Compatibility : XVB7....., XV6....., XV4.....
• ROHS Exemption Information : Yes
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.8695349283603035
• Circularity Profile : ENVEOLI2501029EN
• Environmental Disclosure : ENVPEP2501029EN
• IP Degree Of Protection : IP66
• Nema Degree Of Protection : Type 4/4X/12/13 indoor use only
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2501029EN
• Pep Verification Date : 2025-06-28
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : accessory
• Provided Equipment : gasket
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Indonesia, United States
