SQUARE D

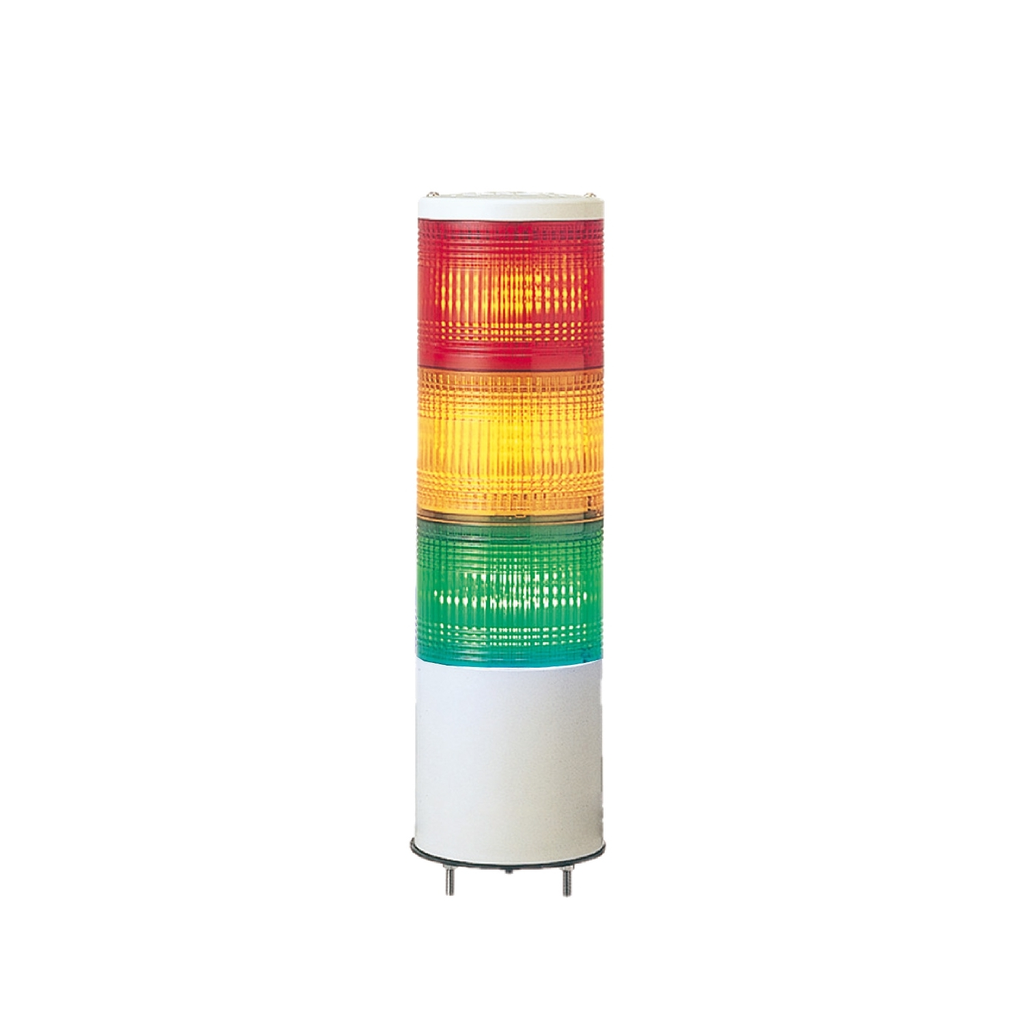

Complete pre wired monolithic tower light, Harmony XVC, plastic, red orange green, 40mm, base mounting, steady, IP23, 24V AC DC

40MM TOWER LIGHT 24V AC/DC

SQDXVCTL1 XVCTL1 785901557234
234.89 / EA
http://schema.org/OutOfStock
Mayer-DDS-Complete pre wired monolithic tower light, Harmony XVC, plastic, red orange green, 40mm, base mounting, steady, IP23, 24V AC DC-1
  • Cable Length: 450 mm
  • Length: 450 mm
  • Light Source: LED Steady Or Flashing Green, LED Steady Or Flashing Orange, LED Steady Or Flashing Red
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL
    • Ambient Air Temperature For Operation : -10-50 °C
    • Standards : IEC 60947-1 || IEC 60947-5-1
    • Ip Degree Of Protection : IP23 vertical surface installation IEC 60529
    • Ambient Air Temperature For Storage : -35-70 °C
    • Overvoltage Category : class I conforming to IEC 61140
    • Protective Treatment : TC
  • Specifications
    • Length : 450 mm
    • Mounting Diameter : 40 mm
    • Light Source : LED steady or flashing red || LED steady or flashing orange || LED steady or flashing green
    • Product Or Component Type : complete pre-wired monolithic tower light
    • Beacon Or Indicator Bank Unit Type : 3 illuminated units
    • Supply Circuit Type : AC/DC
    • Sound Signalling : buzzer
    • Device Short Name : XVC
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1904008EN
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI1904008EN
    • Take-Back : No
    • Global Warming ; Total Life Cycle​ : 22 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 22.3495058208
  • Complementary
    • [Uimp] Rated Impulse Withstand Voltage : 4 kV
    • Flashing Frequency : 1 Hz
    • Cable Length : 450 mm
    • Marking : CE
    • Mounting Location : on support tube, 17 mm
    • [Us] Rated Supply Voltage : 24 V
    • Awg Gauge : AWG 22 || AWG 18
    • Cable Cross Section : 0.33-0.33 mm² || 0.83-0.83 mm²
    • Material : polycarbonate: illuminated unit || ABS (acrylonitrile butadiene-styrene): base unit || PBT + ABS (UL94-V0): top cover || SGP (chromium-plated): support tube
