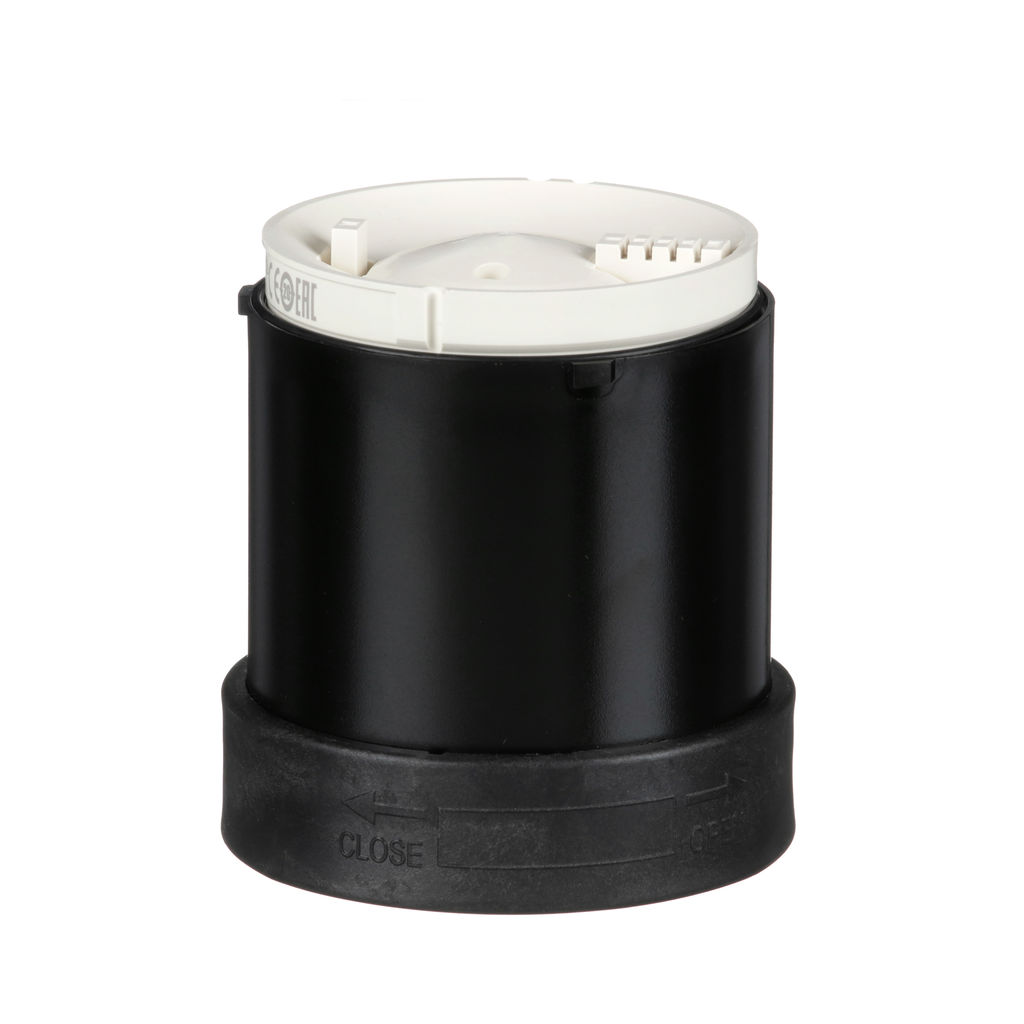

Indicating Bank, 70mm, buzzer unit, 90 dB at 1 meter, 12 to 48 VAC/DC

INDICATING BANK BUZZER 24VAC +

SQDXVBC9B XVBC9B 3389110845969
180.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Indicating Bank, 70mm, buzzer unit, 90 dB at 1 meter, 12 to 48 VAC/DC-2
  • Certifications: CCC, CSA C22-2 No 14, EAC, UL 508
  • Current: 15 mA
  • Net Weight: 0.17 kg
  • Standard: EN/IEC 60947-5-1
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
Harmony XVB 70 mm modular beacons and tower lights are available with steady or flashing lights, and with incandescent or LED illumination. The XVB 70mm tower light range is modular line makes assembly simple which minimizes installation time. There are 5 illuminated units and an audible unit that are simple interchangeable units. The LEDs have a service life of 100,000 hours which reduces the need for maintenance. The wide variety of modules simplifies designing a tower light to meet your requirements. Harmony XVB 70 mm tower lights can be used in automotive, machine tool, material handling, packaging, assembly stations, conveyors and more. It complies with international standards and certifications (CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards and NEMA 4X).
QTY
  • Product Description
  • Specifications
Harmony XVB 70 mm modular beacons and tower lights are available with steady or flashing lights, and with incandescent or LED illumination. The XVB 70mm tower light range is modular line makes assembly simple which minimizes installation time. There are 5 illuminated units and an audible unit that are simple interchangeable units. The LEDs have a service life of 100,000 hours which reduces the need for maintenance. The wide variety of modules simplifies designing a tower light to meet your requirements. Harmony XVB 70 mm tower lights can be used in automotive, machine tool, material handling, packaging, assembly stations, conveyors and more. It complies with international standards and certifications (CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards and NEMA 4X).
  • Environment
    • Product Certifications : CCC || EAC || CSA C22-2 No 14 || UL 508
    • Ambient Air Temperature For Operation : -25-50 °C
    • Standards : EN/IEC 60947-5-1
    • Ip Degree Of Protection : IP65 on fixing base XVBZ0. IEC 60529 || IP66 on base unit IEC 60529
    • Ambient Air Temperature For Storage : -40-70 °C
    • Nema Degree Of Protection : Type 4X UL indoor)
    • Electrical Shock Protection Class : class I on support tube IEC 61140 || class II on base unit IEC 61140
    • Protective Treatment : TC
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP070907EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Net Weight : 0.17 kg
    • [Uimp] Rated Impulse Withstand Voltage : 4 kV IEC 60947-1
    • Cad Overall Height : 63 mm
    • Current Consumption : < 15 mA
    • Connections - Terminals : screw clamp terminals, <= 1 x 1.5 mm² with cable end
    • Fundamental Frequency : 2.8 kHz
    • [Ui] Rated Insulation Voltage : 250 V IEC 60947-1
    • Signalling Type : continuous or intermittent buzzer
    • Nominal Voltage Limit : 0.85...1.1 Un IEC 60947-5-1
    • Assembly Style : customer assembly, up to 5 units
    • Cad Overall Width : 70 mm
    • Cad Overall Depth : 70 mm
  • Specifications
    • Range Of Product : Harmony XVB Universal
    • Mounting Diameter : 70 mm
    • Product Or Component Type : indicator bank
    • Component Name : XVBC
    • Noise Level : 70-90 dB 1 m
    • Beacon Or Indicator Bank Unit Type : audible unit
    • [Us] Rated Supply Voltage : 12...48 V AC/DC
