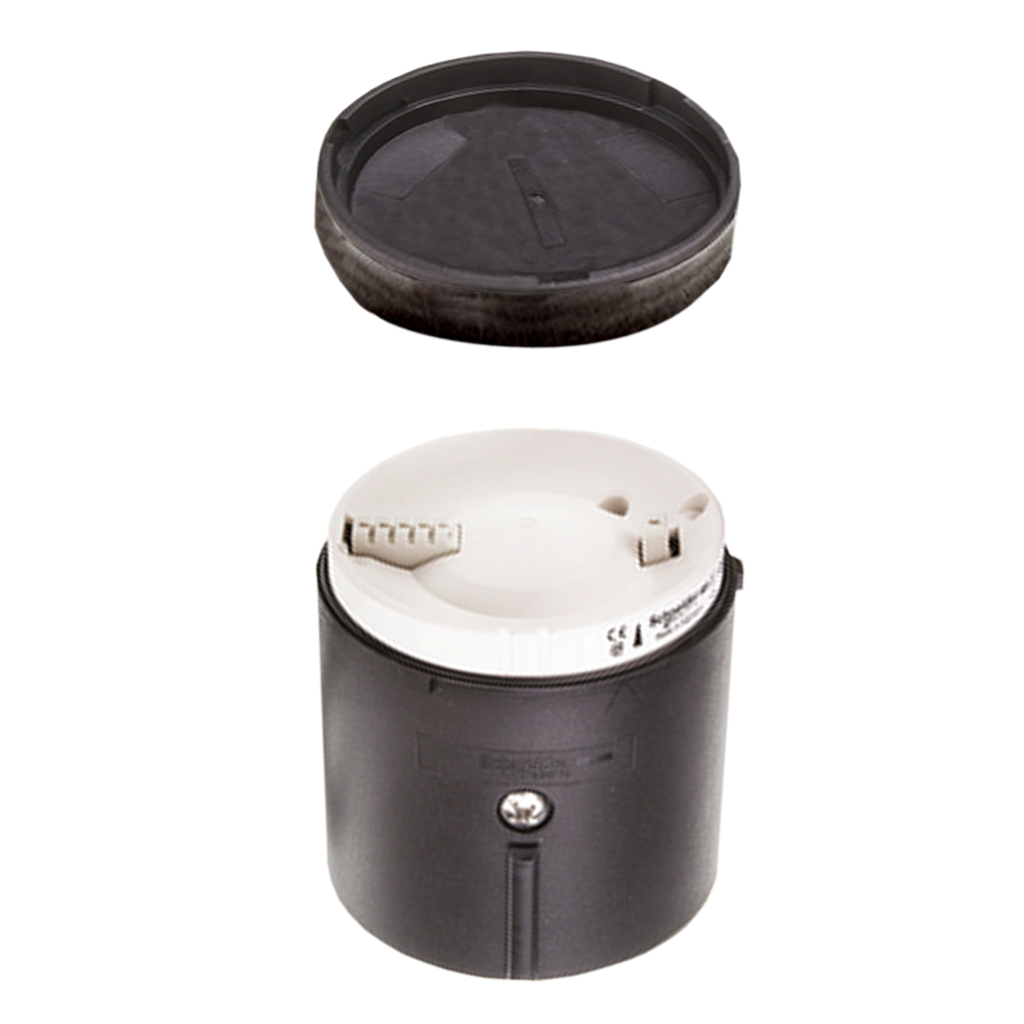

This base unit is designed to be fitted with indicator bank to create complete tower light and allow clear display of the status of your machines. It is made of glass reinforced polyamide material and it allows the cable to entry from the side. It complies with EN/IEC 60947-5-1, EN/IEC 60068-2-27, UL 508, CSA, AS-Interface No 25701 standards with NEMA 4X protection.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : CSA || EAC || AS-Interface No 25701
• Ambient Air Temperature For Operation : -10-50 °C
• Standards : IEC 60947-5-1
• Shock Resistance : 25 gn IEC 60068-2-27
• Ip Degree Of Protection : IP65 conforming to IEC 60529
• Vibration Resistance : 5 gn IEC 60068-2-6
• Ambient Air Temperature For Storage : -20-70 °C
• Overvoltage Category : class I conforming to IEC 60536
• Nema Degree Of Protection : Type 4X UL indoor)
• Protective Treatment : TC
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP070907EN
• Packaging Without Single Use Plastic : Yes
• Scip Number : 124e2d7a-5b1e-45ca-b93c-220dd91b55b6
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : N/A
• Take-Back : No
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 3.6658073336
• Complementary
• Current Consumption : 250 mA under load via AS-Interface line || 30 mA under load external || 30 mA no load
• Terminals Description Iso N°1 : (COM-4)PW || (COM-2)PW || (COM-3)PW || (COM-1)PW || (GND)GROUND || (COM-5)PW
• Mounting Diameter : 70 mm
• Net Weight : 0.3 kg
• [Uimp] Rated Impulse Withstand Voltage : 4 kV IEC 60947-1
• [Ui] Rated Insulation Voltage : 250 V IEC 60947-1
• Actuator Sensor Interface Profile [As-I] : S.7.F
• Electrical Connection : 1 remote connector M12 1 m AS-Interface line
• Assembly Style : customer assembly, up to 5 units
• Material : glass reinforced polyamide: base unit || polycarbonate: cover unit
• Cable Entry : side entry
• Range Compatibility : AS-Interface cabling system
• [Us] Rated Supply Voltage : external 19.2...30 V || AS-Interface line 24...31.6 V
• Specifications
• Country of Origin : France
• Weight : 0.3 kg
• Range Of Product : Harmony XVB Universal
• Product Or Component Type : base unit with cover
• Component Name : XVBC
