Humidity and Temperature sensor, 4-20 mA

TEMP HUMIDTY SENSOR

SQDTM1SHTCC4 TM1SHTCC4 3606481390165
570.97 / EA
http://schema.org/OutOfStock

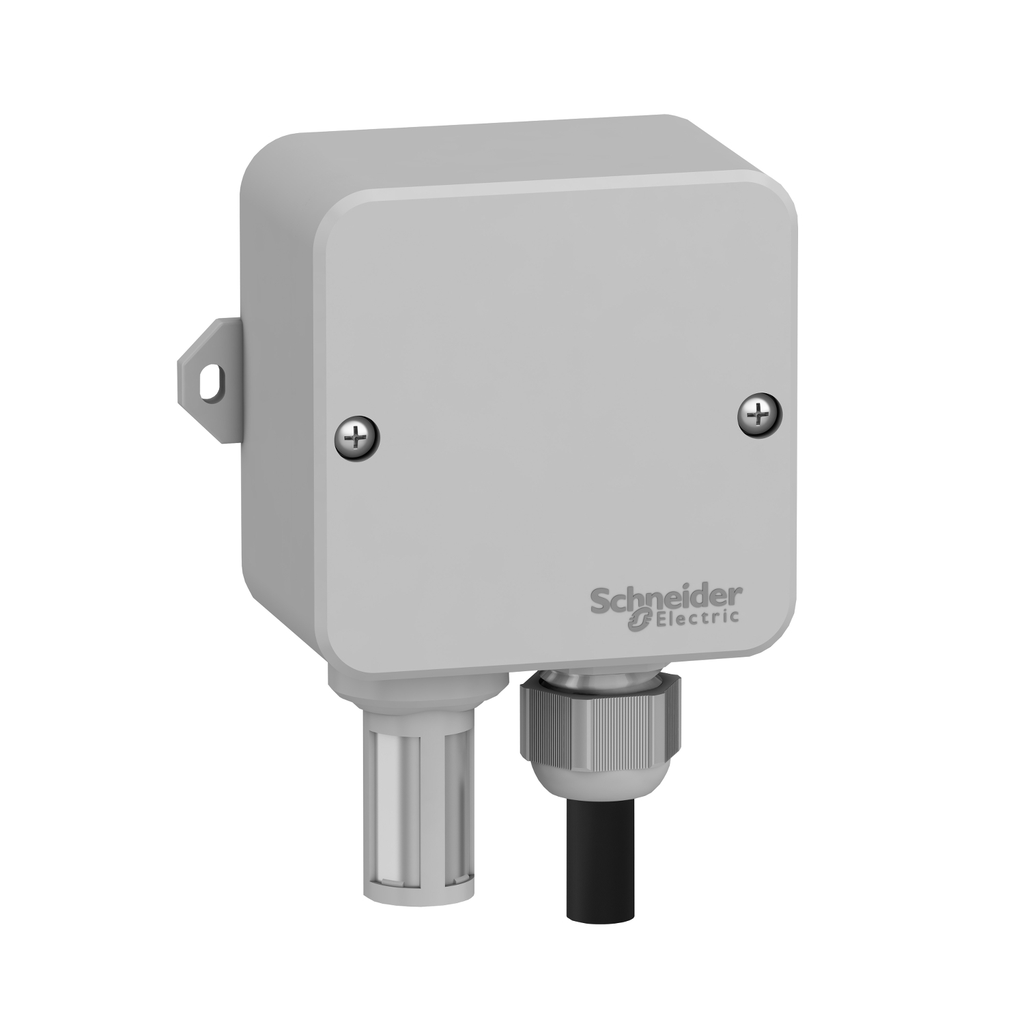

Mayer-DDS-Humidity and Temperature sensor, 4-20 mA-1
This measurement accessory is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This probe controls the temperature level from minus 40 to 60 degrees Celsius and humidity level from 0 to 100 percent. This temperature and humidity probe has an IP 65 rate. It is an outdoor wall-mounting probe. It has one 4-20mA output (humidity) and one 4-20mA output (temperature). Its rated supply voltage is 9 to 28VAC or 9 to 40VDC. Its maximum power consumption is 50mA. It measures 100mm high, 122mm wide, and 50.5mm deep, and weighs 0.140kg. It is made to control both temperature and humidity in HVAC or Pumping Applications. It is sold in a 1- or 24-piece package. It is suitable for panel mounting with 2x diameter4.2mm hole and 89.6mm center distance. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
QTY
  • Product Description
  • Features
  • Specifications
This measurement accessory is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This probe controls the temperature level from minus 40 to 60 degrees Celsius and humidity level from 0 to 100 percent. This temperature and humidity probe has an IP 65 rate. It is an outdoor wall-mounting probe. It has one 4-20mA output (humidity) and one 4-20mA output (temperature). Its rated supply voltage is 9 to 28VAC or 9 to 40VDC. Its maximum power consumption is 50mA. It measures 100mm high, 122mm wide, and 50.5mm deep, and weighs 0.140kg. It is made to control both temperature and humidity in HVAC or Pumping Applications. It is sold in a 1- or 24-piece package. It is suitable for panel mounting with 2x diameter4.2mm hole and 89.6mm center distance. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • US Rated Supply Voltage : 9...28 V AC, 9...40 V DC
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8, SI
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
    • Carbon Footprint Of The Distribution Phase A4 : 0.0322557425, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.2 kg CO2 eq., 0.1980328327
    • Carbon Footprint Of The Installation Phase A5 : 0.0002498174, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 21 kg CO2 eq., 21.0237650143
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • HTML Description : Humidity and Temperature sensor, 4-20 mA
    • Manufacturer : Square D
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Electrical Connection : screw-clamp terminals
    • Package Weight Lbs : 250.0 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Specific Application : humidity control
    • Range Of Product : Modicon M171/M172
    • Returnability : Yes
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 21 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Pep Code : ENVPEP1709014_V1
    • Pep Verification Date : 2017-10-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : For managing a wide range of HVAC/R, pumping and many other applications and a 100% of the time for 10 years
    • Functional Unit Unit : unité (unit)
    • Product Kit Identifier : N
    • Product Manager : EMANUELA CORTINA
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 21.2543034068
    • Environmental Disclosure : ENVPEP1709014_V1
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1709014_V1
    • Pep Verification Date : 2017-10-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Range Of Product : Modicon M171/M172
  • Output Attributes
    • Output Type : current 4...20 mA +/- 3 % RH, current 4...20 mA -40-60 °C +/- 1 °C
