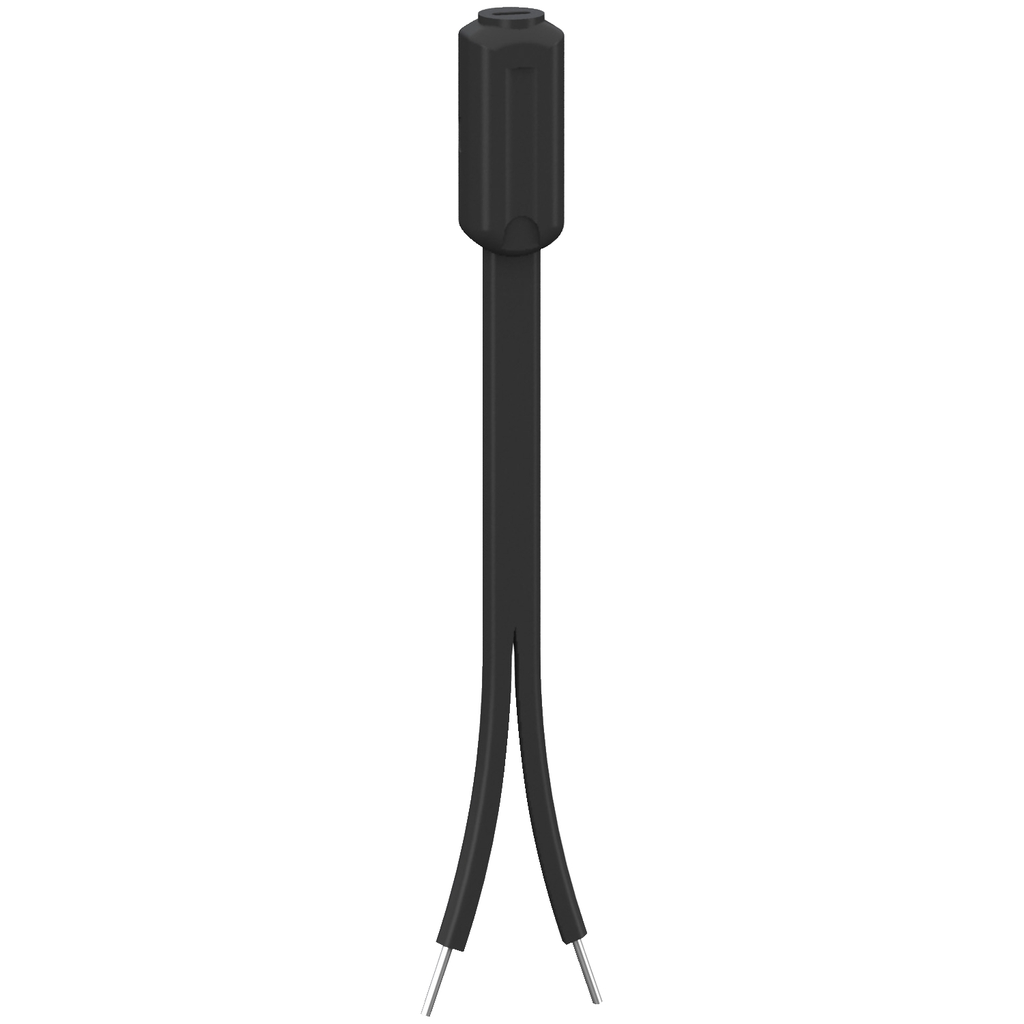

This measurement accessory is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This probe controls the temperature level from minus 50 to 110 degrees Celsius. This temperature probe has an IP 67 rate and is equipped with a 1.5-meter two-conductor cable. It is an NTC probe. It is furnished with 2-conductor cable for controller side for electrical connection. The cable measures 1.5m. It measures 15mm long, 5mm wide, and weighs 0.104kg. It is made to control temperature in HVAC or Pumping Applications. It is sold in a 8-piece package. It has a clip-on fixing mode. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Cable Length : 1.5 m +/- 3 %)
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Weee Scope : Out
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1929
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : Yes
• China Rohs Label : 1
• With Recycled Cardboard : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Product Kit Identifier : N
• Electrical Connection : 2 conductor cables controller side
• Fixing Mode : clip-on
• Mounting Support : cables
• Product Availability : Stock - Normally stocked in distribution facility
• Product Specific Application : temperature control
• Range Of Product : Modicon M171
• Returnability : Yes
• Sustainable Packaging : No
• Temperature Probe Type : NTC
• Accessory Separate Part Category : thermal management accessory
• Accessory Separate Part Type : probe
• Connections Terminals : soldered connectors
• Warranty In Months : 18
• Offer Owner Code : 190786
• Pn : 1
• Height Nominal : 5 mm
• Width Nominal : 15 mm
• Environment Attributes Main
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Eu Rohs Directive : Compliant
• Ip Degree Of Protection : IP67
• Packaging Made With Recycled Cardboard : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• General Attributes
• Range Of Product : Modicon M171
• ETIM
• ETIM 8 : EC004240
• ETIM 9 : EC004240
• Specifications
• Country of Origin : Italy, United States
• Depth : 6 mm
