Photoelectric sensors XU, XUR, diffuse, luminescence, Sn 9 mm, 12...24 VDC, M12

PHOTOELECTRIC SENSORS XU, XUR,

SQDXURU1KSMM12 XURU1KSMM12 3389110178234
2352.66 / EA
http://schema.org/OutOfStock

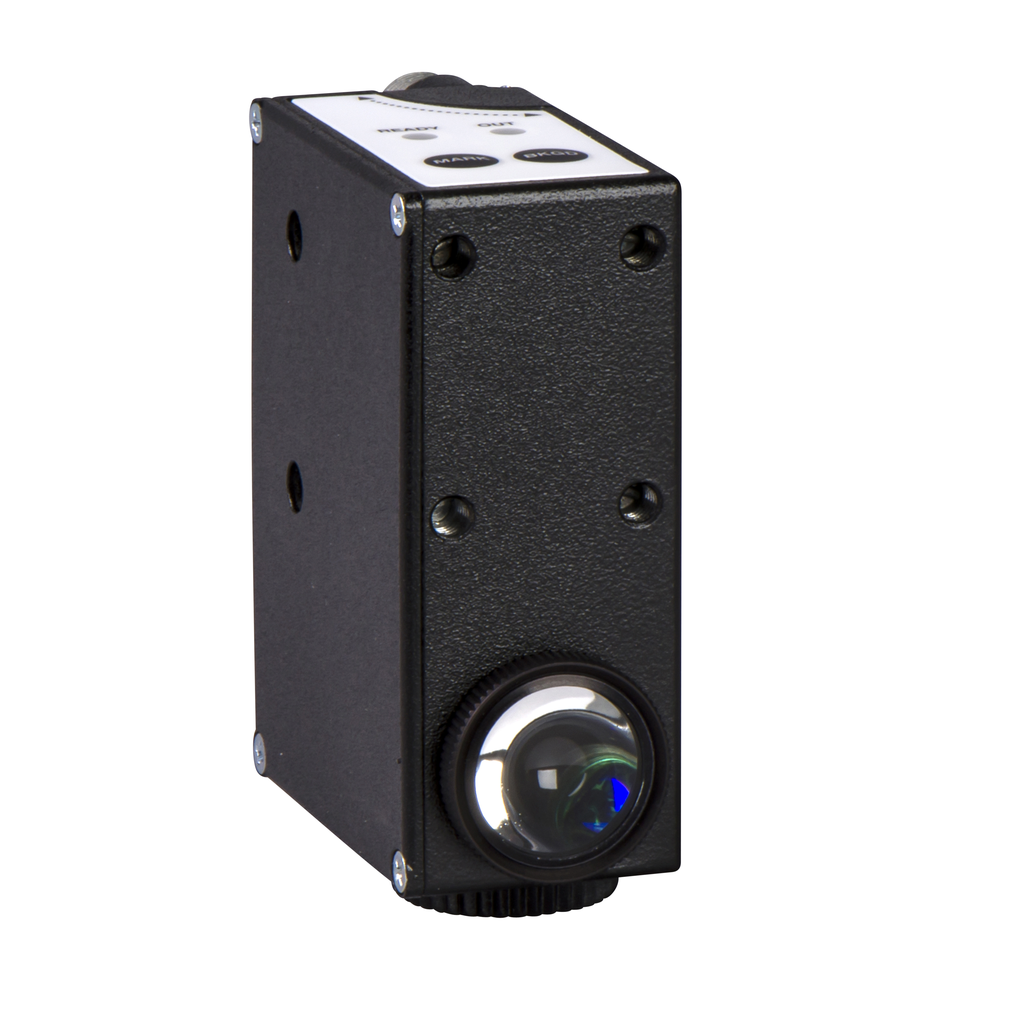

Mayer-Photoelectric sensors XU, XUR, diffuse, luminescence, Sn 9 mm, 12...24 VDC, M12-1
  • Certifications: CE
  • Current: 20 mA
  • Depth: 58 mm
  • Enclosure Material: Zinc Alloy
  • Height: 82 mm
  • Material: Metal
  • Net Weight: 0.55 kg
  • Warranty Length: 18 mth
  • Width: 31 mm
QTY
  • Specifications
  • Specifications
    • Series Name : Application packaging
    • Electrical Connection : 1 male connector M12 adjustable 3 positions, 4 pins
    • Discrete Output Type : PNP or NPN
    • Discrete Output Function : 1 NO or 1 NC programmable
    • Type Of Output Signal : analogue || discrete
    • Range Of Product : Telemecanique Photoelectric sensors XU
    • Product Specific Application : luminescence
    • Emission : ultra-violet (transmission frequency = 370 nm)
    • Detection System : diffuse
    • Sensor Design : compact
    • Supply Circuit Type : DC
    • Electronic Sensor Type : photo-electric sensor
    • Sensor Name : XUR
    • [Sn] Nominal Sensing Distance : 7-7 mm Ø 2.5 mm need lens XURZ01 || 9-9 mm Ø 5 mm without lens || 18-18 mm Ø 7 mm need lens XURZ02
    • Material : metal
    • Analogue Output Range : 0...7 V, DC
    • Wiring Technique : 3-wire
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • Current Consumption : <= 20 mA no-load
    • Height : 82 mm
    • Switching Frequency : <= 2000 Hz
    • Maximum Delay Response : 0.25 ms
    • Maximum Delay Recovery : 0.25 ms
    • Maximum Delay First Up : 100 ms
    • Status Led : teach mode 1 LED green) || output state 1 LED red)
    • Output Function Governance : light or dark programmable
    • Setting-Up : sensitivity adjustment with teach mode
    • Lens Material : glass
    • Supply Voltage Limits : 10-30 V DC
    • Switching Capacity In Ma : <= 200 mA reverse polarity, overload and short-circuit protection)
    • Maximum Voltage Drop : <1 V closed state), NPN || <2 V closed state), PNP
    • Enclosure Material : zinc alloy
    • Width : 31 mm
    • Output Type : solid state
    • Depth : 58 mm
    • Add On Output : with analogue output
    • Net Weight : 0.55 kg
    • [Us] Rated Supply Voltage : 12...24 V DC reverse polarity protection
    • Time Delay Range : 20 ms off-delay activation/deactivation by internal switch
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : CE
    • Ambient Air Temperature For Operation : -10-55 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Ip Degree Of Protection : IP67 IEC 60529
    • Vibration Resistance : 7 gn +/- 0.6 mm 10-55 Hz) IEC 60068-2-6
    • Shock Resistance : 30 gn 11 ms) IEC 60068-2-27
