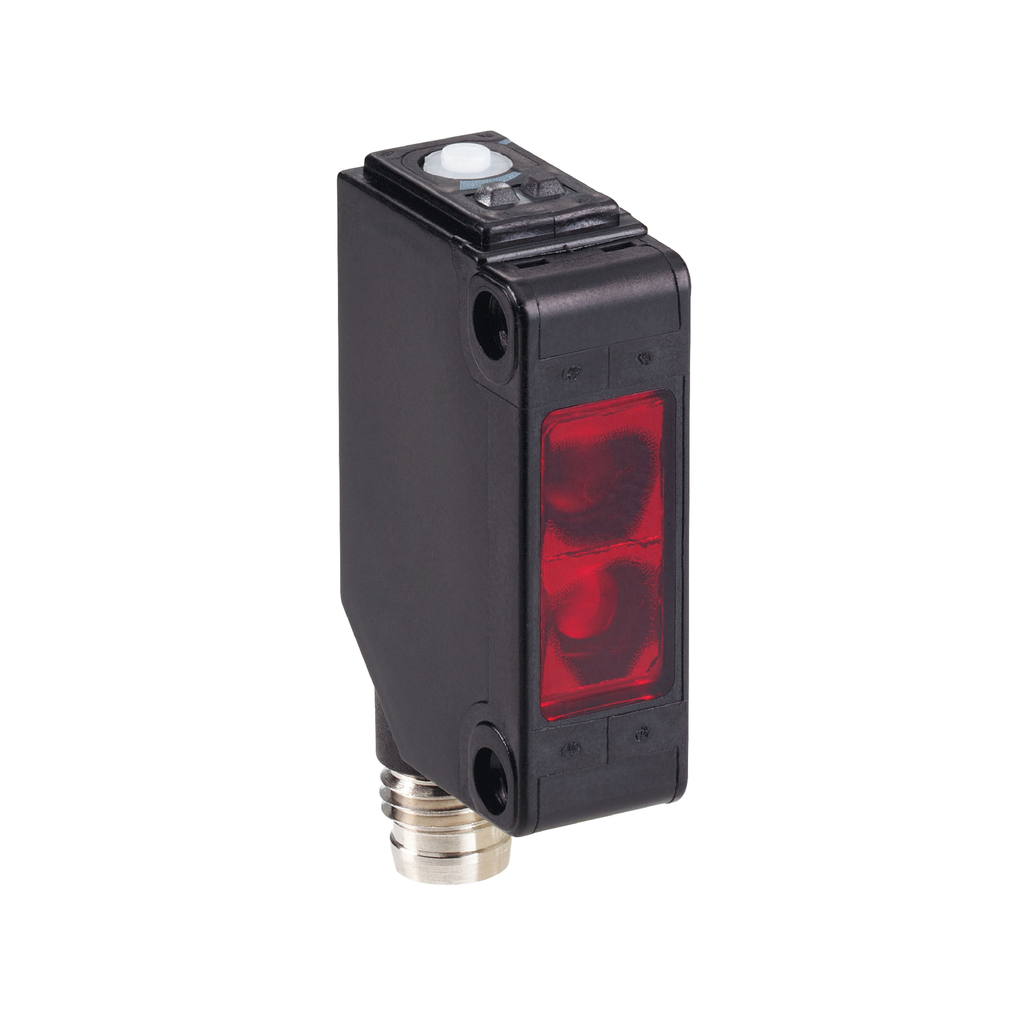

Photoelectric sensors XU, 24 VDC NPN NO

PHOTOELECTRIC SENSORS XU, 24 V

SQDXUN4ANANM12 XUN4ANANM12 785901582106

125.74 / EACH

http://schema.org/OutOfStock

Mayer-DDS-Photoelectric sensors XU, 24 VDC NPN NO-1

Current: 35 mA
Material: Plastic
Operating Temperature: -25-55 °C
Storage Temperature: -40-70 °C
Warranty Length: 18 mth

QTY

Specifications

Specifications

Series Name : general purpose single mode
Electrical Connection : screw-clamp terminals
Range Of Product : Telemecanique Photoelectric sensors XU
Sensor Design : compact
Electronic Sensor Type : photo-electric sensor
Sensor Name : XUC
Material : plastic

Contractual warranty

Warranty : 18 months

Complementary

Current Consumption : <= 35 mA no-load
Switching Frequency : <= 250 Hz
Status Led : 1 LED yellow)output state
Setting-Up : without sensitivity adjustment
Lens Material : PMMA
Switching Capacity In Ma : <= 100 mA overload and short-circuit protection)
Wire Insulation Material : PVC
Maximum Voltage Drop : <1.5 V closed state)
Output Type : solid state
[Us] Rated Supply Voltage : 12...24 V DC

Offer Sustainability

Eu Rohs Directive : Not applicable, out of EU RoHS legal scope
Reach Regulation : Reference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environment

Ambient Air Temperature For Storage : -40-70 °C
Ip Degree Of Protection : IP65 double insulation IEC 60529
Vibration Resistance : 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Ambient Air Temperature For Operation : -25-55 °C
Shock Resistance : 30 gn 11 ms) IEC 60068-2-27
