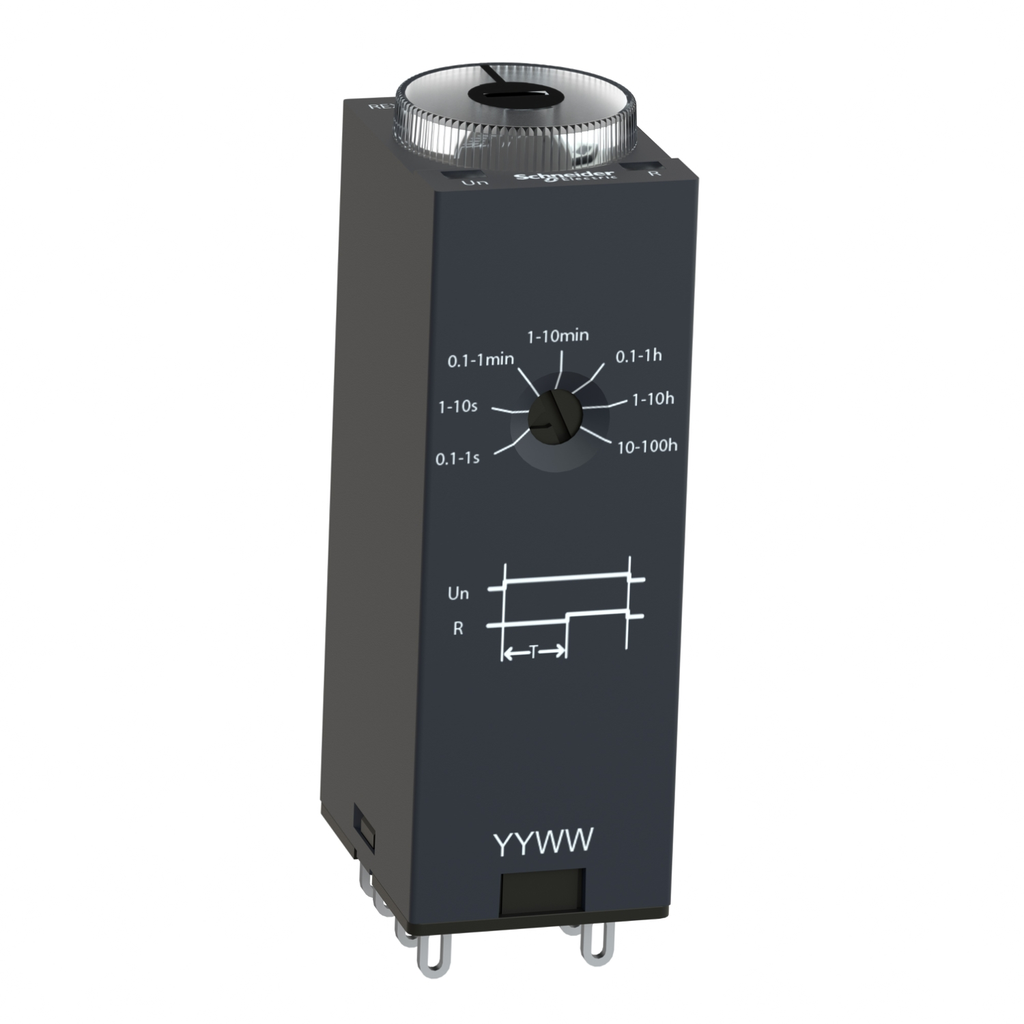

This Harmony REXL timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 5A, is 48mm wide and can be supplied with 24V DC. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for socket plug in, this allows quick and easy installation and minimizes set up and repair time. Status display with 2 LEDs, visually inspect the status of you system without specialized tools. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Line Rated Current : 5 A AC, 5 A
• Ui Rated Insulation Voltage : 250 V IEC 255 Group C, 250 V VDE 0010
• Us Rated Supply Voltage : 24 V DC
• Maximum Switching Capacity : 4 x 5 A
• Minimum Switching Current : 100 mA
• Uc Control Circuit Voltage : 24 V
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Control Type : without test button, without test button
• Dielectric Strength : 2 kV 1 mA/1 minute 50 Hz IEC 60601-1, 2 kV 1 mA/1 minute 50 Hz IEC 61812-1
• Disturbance Radiated Conducted : class B EN 55022 (EN 55011 group 1)
• Electrical Durability : 100000 cycles 250 V AC resistive
• Fixing Mode : plug-in (socket)
• Function Available : A- Power on-delay relay-4 C/O
• Immunity To Voltage Dips : >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-11, 30 % / 10 ms IEC 61000-4-11, 60 % / 100 ms IEC 61000-4-11
• Local Signalling : 1 LED (red) for output in operation, 1 LED (yellow) for power ON
• Repeat Accuracy : +/- 0.5 %, +/- 0.5 %
• Reset Time : 250 ms after time delay, on de-energisation, 50 ms during time delay, on de-energisation
• Resistance To Electrostatic Discharge : 6 kV in contact IEC 61000-4-2 level 3, 8 kV in air IEC 61000-4-2 level 3
• Resistance To Fast Transients : 2 kV IEC 61000-4-4 level 3
• Setting Accuracy Of Time Delay : 10 % at full scale 25 °C IEC 61812-1
• Time Delay Range : 10...100 h, 6...60 s, 6...60 min, 1...10 s, 1...10 h, 1...10 min, 0.1...1 s
• Time Delay Type : power on-delay - A- Power on-delay relay, A, power on-delay
• Vibration Resistance : 0.35 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
• Voltage Drift : +/- 0.2 %/V, +/- 0.2 %/V
• Carbon Footprint Of The Distribution Phase A4 : 0.0068381268, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0067320456
• Carbon Footprint Of The Installation Phase A5 : 0.0006742095, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.6 kg CO2 eq., 0.6017900785
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 41 kg CO2 eq., 41.2026666667
• Contacts Composition : 4 C/O
• Certificate Agency : UL, cUL
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Weee Scope : Out
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1930
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 5
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Component Name : REXL
• Contacts Material : cadmium free
• Contacts Type And Composition : 4 C/O
• Creepage Distance : 4 kV/3 IEC 60664-1
• Functionality : on-delay timing
• Immunity To Microbreaks : 5 ms
• Immunity To Radioelectric Fields : 10 V 0.15...80 MHz)IEC 61000-4-6 level 3
• Mechanical Durability : 10000000 cycles
• Number Of Functions : 1
• Power Consumption In W : 1.2 W
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : miniature timing relay
• Range Of Product : Harmony Timer Relays
• Resistance To Electromagnetic Fields : 10 V/m IEC 61000-4-3 level 3
• Returnability : Yes
• Shape Of Pin : flat
• Software Version : EIME v5.6
• Sustainable Packaging : Yes
• Temperature Drift : 0.05 %/°C
• Temporary Permissible Current : 10 A < 10 s
• Total Lifecycle Carbon Footprint : 42 kg CO2 eq.
• Voltage Range : 0.9...1.1 Us
• Connections Terminals : screw connectors
• Warranty In Months : 18
• Supply Voltage Num 3 : 24 V DC
• Pep Code : ENVPEP1310019EN
• Database Version : 2017-03
• Pep Verification Date : 2017-06-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : To time events in industrial automation systems by closing or opening contacts before, during, or after a set timing period. during 20 years with a 30% use rate, in compliance with French standards
• Functional-unit Quantity : 1
• Functional-unit Unit : unité (unit)
• Reference Lifetime, In Y : 20
• Energy Consumption On Product Lifetime, In Kwh : 84.096
• Energy Model - Manufacturing [A1-a3] : Energy model used: Indonesia
• Energy Model - Installation [A5] : Electricity mix; AC; < 1kV; EU-27
• Energy Model - Use [B6] : Electricity mix; AC; < 1kV; EU-27
• Energy Model - End Of Life [C1-c4] : Electricity mix; AC; < 1kV; EU-27
• Offer Owner Code : 190786
• Pn : 1
• Width Nominal : 21 mm
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] : 467.68
• Net Use Of Fresh Water (M3) Operational Energy Use [B6] : 149.4
• Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] : 104.64
• Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 104.64
• Environment Attributes Main
• Ambient Air Temperature For Operation : -20-60 °C, -20-60 °C
• Ambient Air Temperature For Storage : -40-70 °C, -40-70 °C
• Ip Degree Of Protection : IP50 conforming to IEC 60529
• Relative Humidity : 95-95 % without condensation IEC 60068-2-6
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 41.8187011271
• Environmental Disclosure : ENVPEP1310019EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1310019EN
• Pep Verification Date : 2017-06-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : miniature timing relay
• Range Of Product : Harmony Timer Relays
• ETIM
• ETIM 8 : EC001439
• ETIM 9 : EC001439
• Output Attributes
• Discrete Output Type : relay
• Output Overvoltage Protection : 2 J
• Output Type : relay
• Surge Protection And Filtering Attributes
• Surge Withstand : 2 kV IEC 61000-4-5 level 3
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Indonesia, United States
