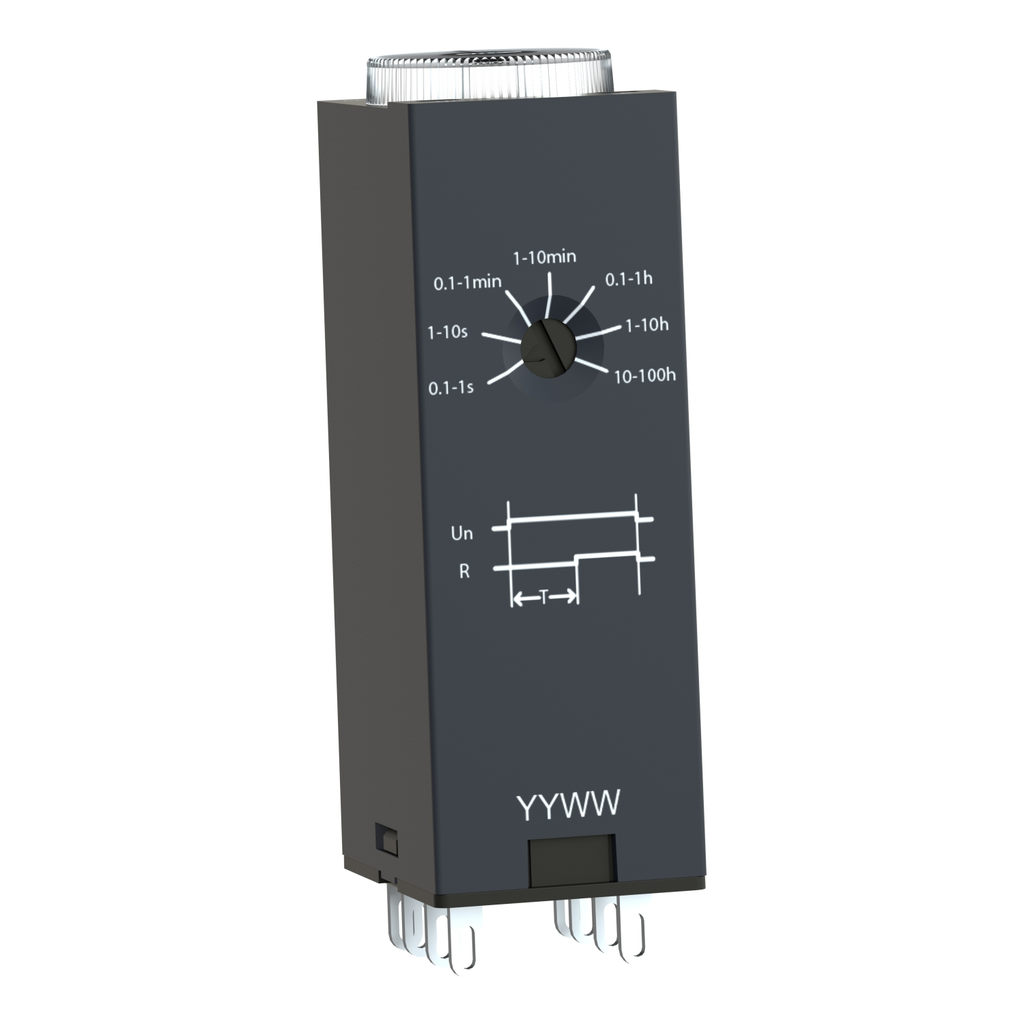

single function relay, Harmony Timer Relays, 5A, 2CO, 0.1s..100h, on delay, 230V AC

TIMER 250VAC 5A REXL +OPTIONS

SQDREXL2TMP7 REXL2TMP7 3389119400053
81.66 / EA
http://schema.org/OutOfStock
Mayer-DDS-single function relay, Harmony Timer Relays, 5A, 2CO, 0.1s..100h, on delay, 230V AC-2
  • Country of Origin: Indonesia
  • Warranty Length: 18 mth
This Harmony REXL timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 5A, is 21mm wide and can be supplied with 230V AC. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for socket plug in, this allows quick and easy installation and minimizes set up and repair time. Status display with 2 LEDs, visually inspect the status of you system without specialized tools. 0 0 0 0 0 0 0 0 0 0 0 0 0 0
QTY
  • Product Description
  • Features
  • Specifications
This Harmony REXL timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 5A, is 21mm wide and can be supplied with 230V AC. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for socket plug in, this allows quick and easy installation and minimizes set up and repair time. Status display with 2 LEDs, visually inspect the status of you system without specialized tools. 0 0 0 0 0 0 0 0 0 0 0 0 0 0
  • US Rated Supply Voltage
    • 230 V AC 50/60 Hz
  • IP Degree Of Protection
    • IP50 conforming to IEC 60529
  • Function Available
    • A- Power on-delay relay-2 C/O
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Immunity To Voltage Dips
    • >= 95 % / 1 s IEC 61000-4-11
    • 30 % / 10 ms IEC 61000-4-11
    • 60 % / 100 ms IEC 61000-4-11
  • Carbon Footprint Of The Installation Phase A5
    • 0.0006360467
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0 kg CO2 eq.
    • 0.0063509864
  • Disturbance Radiated Conducted
    • class B EN 55022 (EN 55011 group 1)
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 0.6 kg CO2 eq.
    • 0.5677264892
  • Temporary Permissible Current
    • 10 A < 10 s
  • UI Rated Insulation Voltage
    • 250 V IEC 255 Group C
    • 250 V VDE 0010
  • Electrical Durability
    • 100000 cycles 250 V AC resistive
  • Fixing Mode
    • plug-in (socket)
  • Time Delay Type
    • power on-delay - A- Power on-delay relay
  • Reset Time
    • 250 ms after time delay, on de-energisation
    • 50 ms during time delay, on de-energisation
  • Vibration Resistance
    • 0.35 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
  • Immunity To Radioelectric Fields
    • 10 V 0.15...80 MHz)IEC 61000-4-6 level 3
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 86 kg CO2 eq.
    • 85.8388888889
  • Resistance To Fast Transients
    • 2 kV IEC 61000-4-4 level 3
  • Line Rated Current
    • 5 A AC
  • Relative Humidity
    • 95-95 % without condensation IEC 60068-2-6
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Surge Withstand
    • 2 kV IEC 61000-4-5 level 3
  • Dielectric Strength
    • 2 kV 1 mA/1 minute 50 Hz IEC 60601-1
    • 2 kV 1 mA/1 minute 50 Hz IEC 61812-1
  • Setting Accuracy Of Time Delay
    • 10 % at full scale 25 °C IEC 61812-1
  • Creepage Distance
    • 4 kV/3 IEC 60664-1
  • Resistance To Electrostatic Discharge
    • 6 kV in contact IEC 61000-4-2 level 3
    • 8 kV in air IEC 61000-4-2 level 3
  • Carbon Footprint Of The Distribution Phase A4
    • 0.006451063
    • 0 kg CO2 eq.
  • Resistance To Electromagnetic Fields
    • 10 V/m IEC 61000-4-3 level 3
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Local Signalling
    • 1 LED (red) for output in operation
    • 1 LED (yellow) for power ON
  • Assets
    • CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001761_3D-CAD
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-08
    • HTML Description : Modular timing relay, 5 A, 2 CO, 0.1 s..100 h, on-Delay, 230 V AC
    • Manufacturer : Schneider Electric
    • Manufacturing Carbon Footprint : 0.5677264892
    • Distribution Carbon Footprint : 0.006451063
    • Installation Carbon Footprint : 0.0006360467
    • Use Carbon Footprint : 85.8388888889
    • End Of Life Carbon Footprint : 0.0063509864
    • Legacy WEEE Scope : Out
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Component Name : REXL
    • Functionality : on-delay timing
    • Number Of Functions : 1
    • Package Weight Lbs : 50.0 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : miniature timing relay
    • Range Of Product : Harmony Timer Relays
    • Returnability : Yes
    • Shape Of Pin : flat
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 86 kg CO2 eq.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 86.4200534742
    • Relationship Type : Compatible relationship
    • Accessories : RXZE2M114M
    • Pep Code : ENVPEP1310019EN
    • Pep Verification Date : 2017-06-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 50
    • Functional Unit Description : To time events in industrial automation systems by closing or opening contacts before, during, or after a set timing period. during 20 years with a 30% use rate, in compliance with French standards
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unité (unit)
    • Reference Lifetime In Y : 20
    • Energy Consumption On Product Lifetime In Kwh : 175.2
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
    • Energy Model Manufacturing A1 A3 : Energy model used: Indonesia
    • Energy Model Installation A5 : Electricity mix; AC; < 1kV; EU-27
    • Energy Model Use B6 : Electricity mix; AC; < 1kV; EU-27
    • Energy Model End Of Life C1 C4 : Electricity mix; AC; < 1kV; EU-27
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0014448271
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0014373683
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000003
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0000074583
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000000001
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 981.1617859286
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 6.6704654281
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.0906330205
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.008994637
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 974.3333333333
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0.0583595097
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 5.1079304252
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 4.9750047884
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.0133202452
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.04475
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0748553917
    • Materials For Energy Recovery Kg Total Life Cycle : 0.0008493392
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0.0001078625
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0.0007414767
    • Materials For Recycling Kg Total Life Cycle : 0.0136740088
    • Materials For Recycling Kg Manufacturing A1 A3 : 0.0017366405
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.0119373683
    • Net Use Of Fresh Water M3 Total Life Cycle : 311.2591508915
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.0091437464
    • Net Use Of Fresh Water M3 Distribution A4 : 0.0000005773
    • Net Use Of Fresh Water M3 Installation A5 : 0.0000007783
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 311.25
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0000057894
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 320.3216098833
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.2656004597
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.000229209
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0000298305
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 320.0555555556
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0001948286
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000057193
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.000000127
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.0000000001
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0000055919
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000003
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.2145424032
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0008002107
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000001632
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.0000000492
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.2137416667
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0000003134
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1505.2463481879
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 8.692683394
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0910927025
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.009845815
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1496.3888888889
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0638373875
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 1723.7854336121
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 9.2315648343
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.0912143268
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.009857307
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 1714.3888888889
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0.0639082551
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 218.5391226211
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.5389197472
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0001215572
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0000108131
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 218
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0000705037
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.5316222946
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.5316222946
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1504.7146492796
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 8.1609844857
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0910927025
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.009845815
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1496.3888888889
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0638373875
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.1273606589
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.1273606589
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 218.4117619623
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.4115590883
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0001215572
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0000108131
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 218
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0000705037
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0.0030075656
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.0030075656
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Air Pollution M3 Total Life Cycle : 3803.5632914086
    • Air Pollution M3 Manufacturing A1 A3 : 108.3125837962
    • Air Pollution M3 Distribution A4 : 0.2744206091
    • Air Pollution M3 Installation A5 : 0.0702930473
    • Air Pollution M3 Operational Energy Use B6 : 3694.4444444444
    • Air Pollution M3 End Of Life C1 C4 : 0.4615495116
    • Water Pollution M3 Total Life Cycle : 3608.4905543851
    • Water Pollution M3 Manufacturing A1 A3 : 64.8668837387
    • Water Pollution M3 Distribution A4 : 1.0609078721
    • Water Pollution M3 Installation A5 : 0.0752422907
    • Water Pollution M3 Operational Energy Use B6 : 3541.9444444444
    • Water Pollution M3 End Of Life C1 C4 : 0.5430760391
    • Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0.3608288439
    • Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0.0198680572
    • Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0.0224539156
    • Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.0027286918
    • Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.0000294551
    • Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.0000019965
    • Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 0.3580555556
    • Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.000013145
    • Global Warming Kg Equivalent Co2 Total Life Cycle : 86.4200534742
    • Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 0.5677264892
    • Global Warming Kg Equivalent Co2 Distribution A4 : 0.006451063
    • Global Warming Kg Equivalent Co2 Installation A5 : 0.0006360467
    • Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 85.8388888889
    • Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 0.0063509864
    • Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.0001899349
    • Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.0000021019
    • Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0.0000002095
    • Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 0.0196744444
    • Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.0000013665
    • Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.0008242195
    • Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.0000067842
    • Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0.0000004718
    • Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.0216188889
    • Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.0000035511
  • General Attributes
    • Product Or Component Type : miniature timing relay
    • Range Of Product : Harmony Timer Relays
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=648010&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 86.4200534742
    • Environmental Disclosure : ENVPEP1310019EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1310019EN
    • Pep Verification Date : 2017-06-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Indonesia
