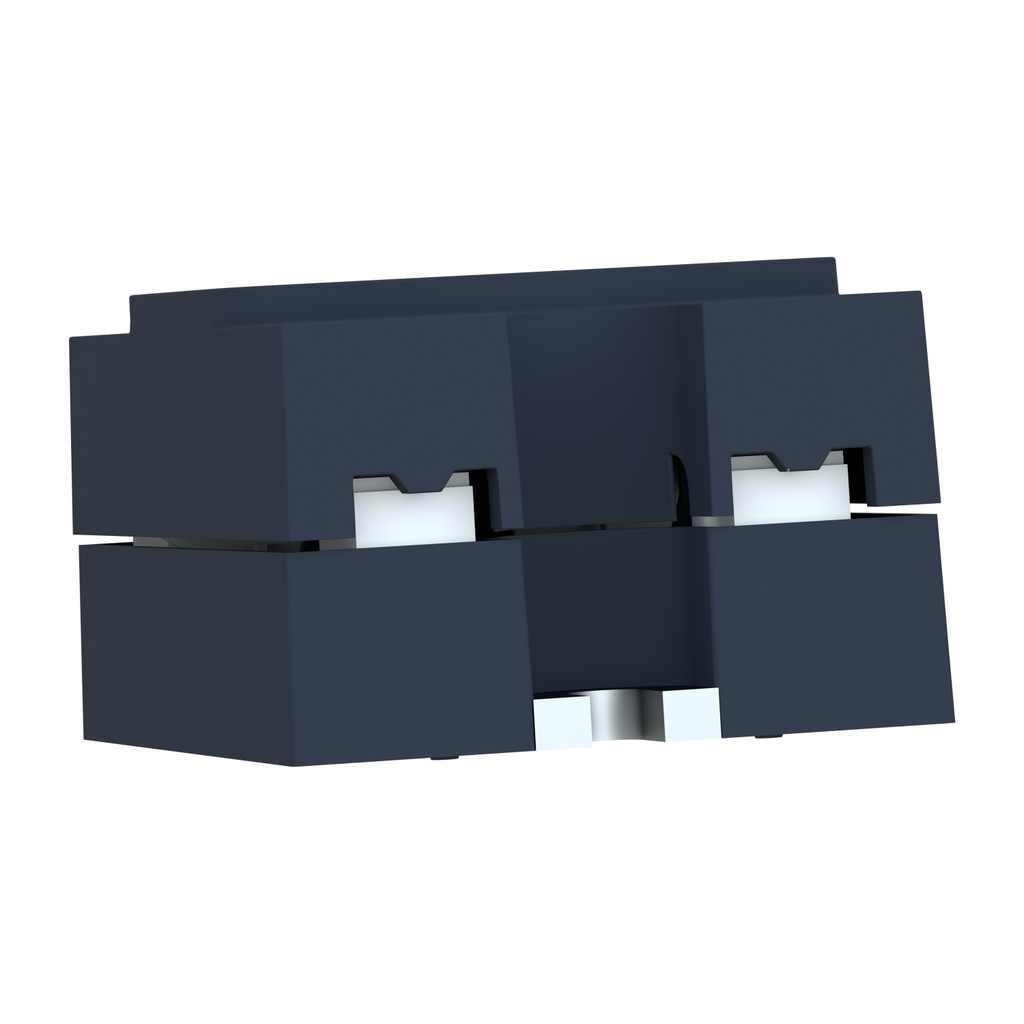

single phase relay, Harmony Solid State Relays, 12A, panel mount, DC switching, input 3.5 to 32V DC, output 1 to 150V DC

SSR 1P PANEL MOUNT 12A@150VDC

SQDSSP1D412BD SSP1D412BD 3606485441818
47.42 / EA
http://schema.org/OutOfStock
Mayer-DDS-single phase relay, Harmony Solid State Relays, 12A, panel mount, DC switching, input 3.5 to 32V DC, output 1 to 150V DC-2
  • Country of Origin: Mexico
SSP panel mount relay is part of the Harmony Solid sate relays range. This single-phase panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs Its rated current is 12A, is controlled withA 3.5V to 32V D
QTY
  • Product Description
  • Features
  • Specifications
SSP panel mount relay is part of the Harmony Solid sate relays range. This single-phase panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs Its rated current is 12A, is controlled withA 3.5V to 32V D
  • Uc Control Circuit Voltage
    • 3.5...32 V DC
  • Insulation Resistance
    • 1000 MOhm at 500 V DC
  • Safety Reliability Data
    • B10d = 1731395
    • MTTFd = 1875.9 years
  • Connections Terminals
    • screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input
    • screw terminals 0.2...3.3 mm², AWG 24...AWG 12)
  • Uimp Rated Impulse Withstand Voltage
    • 2.5 kV output to case
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Response Time
    • 0.1 ms (turn-on)
    • 0.1 ms (turn-off)
  • Carbon Footprint Of The Installation Phase A5
    • 0.0005327247
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0 kg CO2 eq.
    • 0.0224905155
  • Standards
    • IEC 62314
    • UL 508
    • CSA C22.2 No 14-13
    • IEC 60950-1
  • Maximum Leakage Current
    • 0.3 mA off-state
  • Maximum Switching Voltage
    • 1 V DC turn-off
  • Thermal Resistance
    • 0.71 °C/W junction to case
  • Minimum Switching Voltage
    • 3.5 V DC turn-on
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 1 kg CO2 eq.
    • 1.0544020619
  • Marking
    • CSA
    • UL
    • CE
    • EAC
  • Accessories
    • SSRHP02
    • SSRHP05
    • SSRHP07
    • SSRHP10
    • SSRHP25
    • SSRHD10
    • SSRAL1
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 3 056 kg CO2 eq.
    • 3055.5162051694
  • Solid State Output Type
    • DC switching
    • Mosfet output
  • Dielectric Strength
    • 2.5 kV AC for input/output
    • 2.5 kV AC for input or output to case
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0122569588
    • 0 kg CO2 eq.
  • Tightening Torque
    • 1.5...1.7 N.m for input
    • 2...2.2 N.m for output
  • Protection Device Type
    • type 1 - 10 A miniature circuit breaker (MCB) B
    • type 2 - 6 A miniature circuit breaker (MCB) B
    • type 2 - 6 A mi
  • Local Signalling
    • LED, green input
  • Maximum Voltage Drop
    • <2.8 V on-state
  • Surge Current
    • 31 A 10 ms
  • Product Certifications
    • CE
    • UL
    • CSA
    • EAC
  • Output Voltage
    • 1...150 V DC
  • Complementary Attributes
    • Line Rated Current : 12 A
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-02-28
    • ETIM 10 : EC002055
    • Manufacturing Carbon Footprint : 1.0544020619
    • Distribution Carbon Footprint : 0.0122569588
    • Installation Carbon Footprint : 0.0005327247
    • Use Carbon Footprint : 3055.5162051694
    • End Of Life Carbon Footprint : 0.0224905155
    • Legacy WEEE Scope : Out
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1505006EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1930
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Control Type : without test button
    • Device Short Name : SSP1
    • Load Current : 0.001-12 A
    • Mounting Support : panel
    • Overvoltage Category : III
    • Package Weight Lbs : 92.000 g
    • Phase : 1 phase
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : panel mount relay
    • Range Of Product : Harmony Solid State Relays
    • Returnability : No
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 3 057 kg CO2 eq.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 3056.6058874303
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Phase : 1 phase
    • Product Or Component Type : panel mount relay
    • Range Of Product : Harmony Solid State Relays
  • Output Attributes
    • Output Switching Mode : DC switching
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=423419622&lang=en-us
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 3056.6058874303
    • Ambient Air Temperature For Operation : -40-80 °C
    • Ambient Air Temperature For Storage : -40-125 °C
    • Circularity Profile : ENVEOLI1505006EN
    • Environmental Disclosure : ENVPEP1505006EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Input Attributes
    • Input Current Limits : 10-15 mA
  • Specifications
    • Country of Origin : Mexico
  • Overview Attributes
    • Device Presentation : complete product
