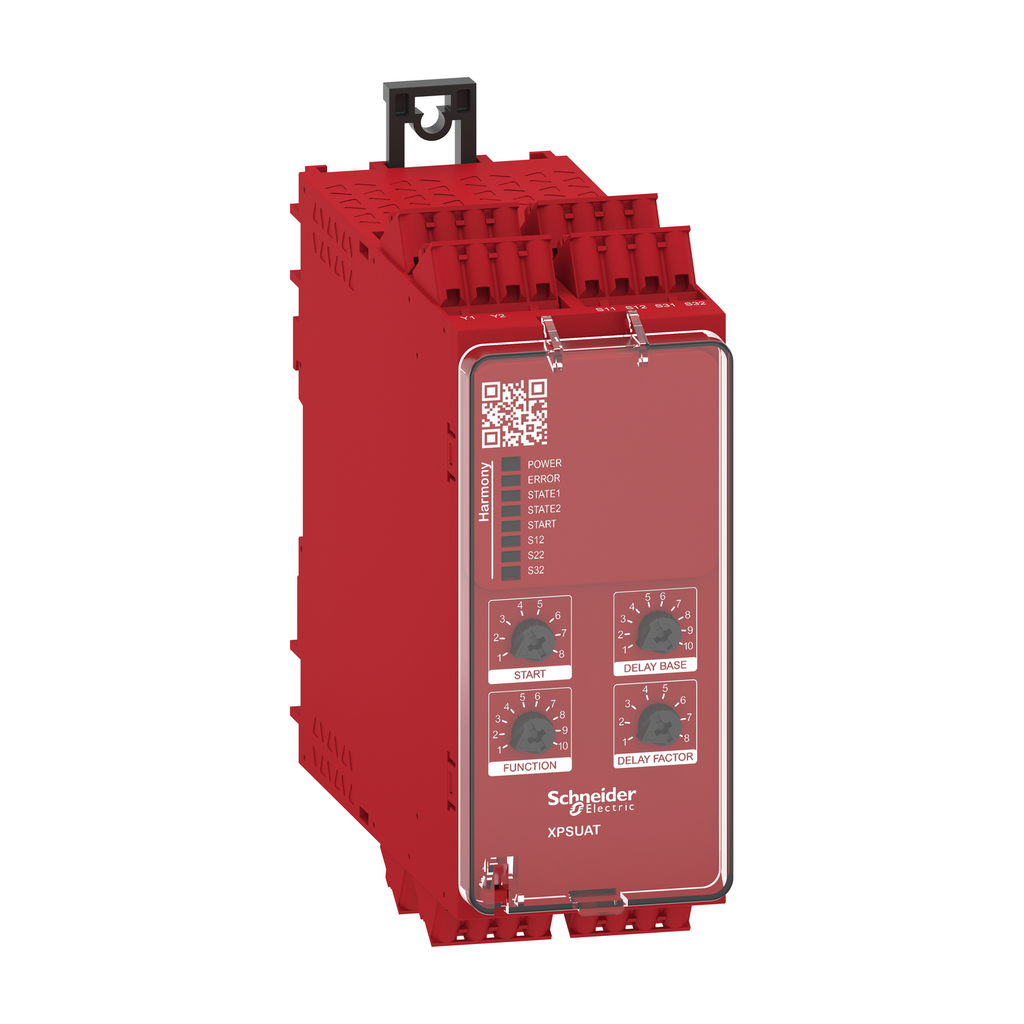

This safety relay is designed for monitoring Emergency stop, Guard switch, Magnetic switch, Proximity safety switch, PNP, NPN sensor, RFID safety switch, Safety light curtain or Sensing mat/edges. The safety relay is powered with 24V AC/DC, and equipped

• Power Consumption In W
• 3 W 24 V DC
• US Rated Supply Voltage
• 24 V AC - 15...10 %
• 24 V DC - 20...20 %
• Minimum Output Current
• 20 mA relay output
• Safety Reliability Data
• MTTFd > 30 years ISO 13849-1
• Dcavg >= 99 % ISO 13849-1
• PFHd = 0.94E-09 for SS0 ISO 13849-1
• PFHd = 0.95E-09 for SS1 ISO 13849-1
• Connections Terminals
• removable spring terminal block, 0.2...2.5 mm² solid or flexible
• removable spring terminal block, 0.25...2.5 mm² flexible wi
• Input Output Type
• pulsed output for diagnostics 24 V DC, 20 mA Z1, not safety-related
• pulsed output for diagnostics 24 V DC, 20 mA Z1, n
• IE Rated Operational Current
• 5 A AC-1 for normally open relay contact
• 3 A AC-15 for normally open relay contact
• 5 A D
• IP Degree Of Protection
• IP20 terminals)IEC 60529
• IP40 housing)IEC 60529
• IP54 mounting area)IEC 60529
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.01605312933311263
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 1 kg CO2 eq.
• 0.9815546724606395
• Standards
• IEC 60947-5-1
• IEC 61508-1 functional safety standard
• IEC 61508-2 functional safety standard
• IEC 61508-3 functional safety standard
• IEC 61
• Safety Module Application
• monitoring antivalent contacts
• for emergency stop, guard and light curtain monitoring
• monitoring of pressure-sensitive 4-wire protective devices
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 8 kg CO2 eq.
• 7.970047091148527
• Time Delay Range
• 0...900 s off
• Input Compatibility
• normally closed circuit ISO 14119
• XC limit switch ISO 14119
• mechanical contact ISO 14119
• normally closed circuit ISO 13850
• antivale
• UI Rated Insulation Voltage
• 250 V 2)IEC 60947-1
• Accessories
• XPSES
• XPSEC
• Safety Level
• can reach PL e/category 4 for normally open relay contact ISO 13849-1
• can reach SILCL 3 for normally open relay co
• Power Consumption In VA
• 6.5 VA 24 V AC 50/60 Hz
• Number Of Inputs
• 2 positive safety input 24 V DC 8
• 1 negative safety input
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 97 kg CO2 eq.
• 96.85324113032115
• Number Of Outputs
• 4 on/off configurable pulsed output
• Relative Humidity
• 5-95 % non-condensing
• Minimum Output Voltage
• 24 V relay output
• Carbon Footprint Of The Distribution Phase A4
• 0.2083804167362207
• 0.2 kg CO2 eq.
• Associated Fuse Rating
• 10 A gG NO relay output circuit IEC 60947-1
• UIMP Rated Impulse Withstand Voltage
• 4 kV II IEC 60947-1

• Assets
• CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001240_3D-CAD
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Manufacturing Carbon Footprint : 7.97004709114853
• Distribution Carbon Footprint : 0.208380416736221
• Installation Carbon Footprint : 1.60531293331126e-02
• Use Carbon Footprint : 96.8532411303212
• End Of Life Carbon Footprint : 0.98155467246064
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1811003EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1915
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Package Weight Lbs : 455.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : safety module
• Range Of Product : Harmony Safety Automation
• Returnability : Yes
• Safety Module Name : XPSUAT
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 106 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 106.02927643999966
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP1811003EN
• Pep Verification Date : 2024-11-01
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 449
• Functional Unit Description : To monitor signals from a variety of different sensors/devices for safety-related interruption of safety-related electrical circuits at 100% for 10 years.
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Reference Lifetime In Y : 10
• Energy Consumption On Product Lifetime In Kwh : 262.8
• Energy Model Manufacturing A1 A3 : Indonesia, ID
• Energy Model Installation A5 : Electricity Mix; Low voltage; 2018; Italy, IT
• Energy Model Use B6 : Electricity Mix; Low voltage; 2018; Italy, IT
• Energy Model End Of Life C1 C4 : Electricity Mix; Low voltage; 2018; Italy, IT
• Recyclability Potential In : 0
• Acidification Ap Mole Of H Equiv Total Life Cycle : 0.5915683231608068
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.06518200974311124
• Acidification Ap Mole Of H Equiv Distribution A4 : 0.0009055002876519073
• Acidification Ap Mole Of H Equiv Installation A5 : 0.00005072637226396992
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.5248087264484919
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.0006213603092878703
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.24926628036249512
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.11717023023406821
• Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
• Climate Change Biogenics Kg Co2 Eq Installation A5 : -0.000002044323806647
• Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
• Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
• Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.07432459247854835
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.05777350197368523
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 105.77997705326644
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 7.852843754543734
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.2083804167362207
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.01605517365691928
• Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 96.7789165378426
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.9237811704869543
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0
• Climate Change Total Kg Co2 Eq Total Life Cycle : 106.02927643999966
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 7.970047091148527
• Climate Change Total Kg Co2 Eq Distribution A4 : 0.2083804167362207
• Climate Change Total Kg Co2 Eq Installation A5 : 0.01605312933311263
• Climate Change Total Kg Co2 Eq Maintenance B2 : 0
• Climate Change Total Kg Co2 Eq Repair B3 : 0
• Climate Change Total Kg Co2 Eq Replacement B4 : 0
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 96.85324113032115
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.9815546724606395
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.005411717084488497
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.005406098438177751
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000000001791171358
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000000017023774279
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.00000562154198443546
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : -0.00000000308382314615
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 2633.3681114441433
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 131.0980390682732
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 2.592759960562799
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.04521932849473505
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 2498.621306416218
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 1.0107866705947974
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 1469.6330199636855
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 141.23717818107093
• Ecotoxicity Fresh Water Ctue Distribution A4 : 0.8545869686180272
• Ecotoxicity Fresh Water Ctue Installation A5 : 0.5611760003756993
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 1054.011912666705
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 272.96816614691585
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : 0
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00000446218587547988
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00000035675770685051
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.00000000245780804812
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000000021102149749
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.00000409884747830988
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000000391186077389
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : 0
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.00000802138735469669
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.00000802138735469669
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.0003092452847025804
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.00002103739466399371
• Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000002439993910242
• Freshwater Eutrophication Kg P Eq Installation A5 : 0.000000017939384707
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.000279551082783351
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.00000861446793142628
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : 0
• Hazardous Waste Disposed Of Kg Total Life Cycle : 19.12634841255685
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 18.875874598491922
• Hazardous Waste Disposed Of Kg Distribution A4 : 0.00017264266031817712
• Hazardous Waste Disposed Of Kg Installation A5 : 0.00002246042295301706
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.25027871098165594
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : 0
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00000204119955667307
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000182424302367074
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000000294002732
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000000074507320667
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000001199846241008
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000020421005735825
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000080131003479255
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000032264982378092
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000000055036564716
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000000025570745619
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000045165070490049
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000002620343300779
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : 0
• Impacts Related To Land Use Soil Quality Total Life Cycle : 1.2815032264451225
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.1093793575747885
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 1.172123868870334
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 184.91984660070636
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 33.04665395715056
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.00046199778234834406
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.00004467245757993326
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 151.8723152228546
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.0003707504612919055
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.06773059115899978
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.006389172896871318
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.00041611414279164156
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.00002351924111672684
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.06058126203960328
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.0003205228386168015
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : 0
• Materials For Energy Recovery Kg Total Life Cycle : 0.00000010501310806952
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0.00000010501310806952
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 0.00000216084995796674
• Materials For Recycling Kg Manufacturing A1 A3 : 0.00000216084995796674
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 0.15790692923424218
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.0768588088549965
• Net Use Of Fresh Water M3 Distribution A4 : 0.00024614406546573993
• Net Use Of Fresh Water M3 Installation A5 : 0.00022462088788694585
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.08009420343368664
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0004831519922063706
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : 0
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 13.403888336258321
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 1.6198113433155017
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.00021208930729336572
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.09874570245483609
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 11.57433268998374
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.11078651119695007
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : 0
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00000173341500060182
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00000114898558068026
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00000018388545225984
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000000015406707262
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.00000039950450765027
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000000088539293883
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.2255126960940567
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.024564180609749683
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.0014784658910354349
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.0000577013830062559
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.1986434737878885
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.0007688744223768313
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : 0
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0024093206872266167
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.001102443641884582
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.00004142949093541497
• Radioactive Waste Disposed Of Kg Installation A5 : 0.00000025254971581482
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.001262537892354387
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00000265711233641791
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : 0
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.9133777887457607
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.0681985521485015
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.004509022628263617
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.00024269973619584544
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.8372586725837028
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.003168841649096878
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2.455082527575396
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.455082527575396
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 3081.890238894737
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 137.08841617895982
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 2.592776911606742
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.04532996185874641
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 2941.151500037309
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 1.012215805003152
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 448.522127450594
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 5.990377110686596
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00001695104394251711
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.00011063336401135659
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 442.5301936210911
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0014291344083545688
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2.455082527575396
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.455082527575396
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2630.9130289165682
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 128.64295654069778
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 2.592759960562799
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.04521932849473505
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 2498.621306416218
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 1.0107866705947974
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3.396689785579937
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.396689785579937
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 445.12543766501403
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.5936873251066577
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00001695104394251711
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.00011063336401135659
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 442.5301936210911
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0014291344083545688
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0.00001376258472727272
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.00001376258472727272
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Water Use M3 Eq Total Life Cycle : 6.765335258897956
• Water Use M3 Eq Manufacturing A1 A3 : 3.2843184886093533
• Water Use M3 Eq Distribution A4 : 0.010571887611753525
• Water Use M3 Eq Installation A5 : 0.009647467134744325
• Water Use M3 Eq Maintenance B2 : 0
• Water Use M3 Eq Repair B3 : 0
• Water Use M3 Eq Replacement B4 : 0
• Water Use M3 Eq Operational Energy Use B6 : 3.440046037476841
• Water Use M3 Eq End Of Life C1 C4 : 0.02075137806526361
• Water Use M3 Eq Benefits Loads Beyond System Boundaries D : 0
• Air Pollution M3 Total Life Cycle : 0
• Air Pollution M3 Manufacturing A1 A3 : 0
• Air Pollution M3 Distribution A4 : 0
• Air Pollution M3 Installation A5 : 0
• Air Pollution M3 Maintenance B2 : 0
• Air Pollution M3 Repair B3 : 0
• Air Pollution M3 Replacement B4 : 0
• Air Pollution M3 Operational Energy Use B6 : 0
• Air Pollution M3 End Of Life C1 C4 : 0
• Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Water Pollution M3 Total Life Cycle : 0
• Water Pollution M3 Manufacturing A1 A3 : 0
• Water Pollution M3 Distribution A4 : 0
• Water Pollution M3 Installation A5 : 0
• Water Pollution M3 Maintenance B2 : 0
• Water Pollution M3 Repair B3 : 0
• Water Pollution M3 Replacement B4 : 0
• Water Pollution M3 Operational Energy Use B6 : 0
• Water Pollution M3 End Of Life C1 C4 : 0
• Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• General Attributes
• Product Or Component Type : safety module
• Range Of Product : Harmony Safety Automation
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=465471233&lang=en-us
• Take Back : No
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 106.02927644
• Circularity Profile : ENVEOLI1811003EN
• Environmental Disclosure : ENVPEP1811003EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1811003EN
• Pep Verification Date : 2024-11-01
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Specifications
• Country of Origin : Indonesia
