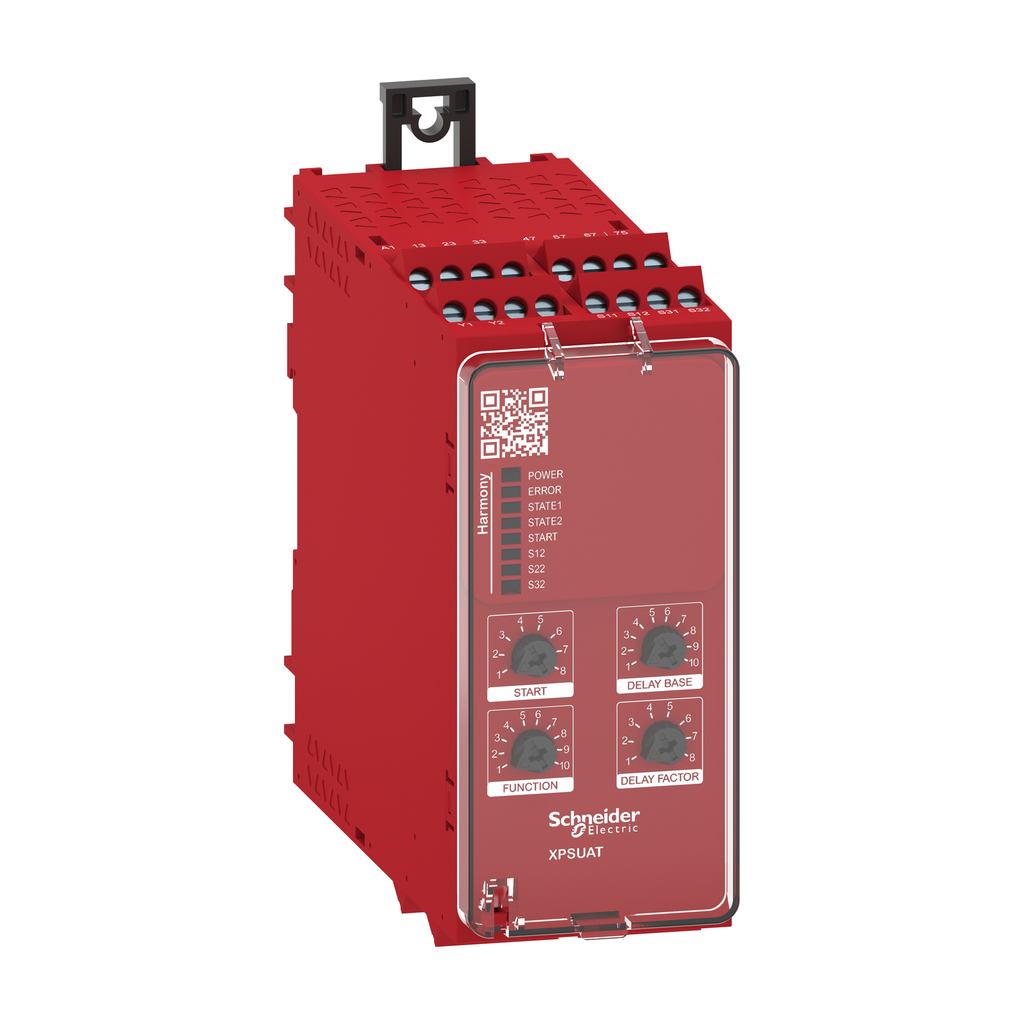

safety module, Harmony XPSU, Cat4, features XPSUAK with delayed outputs, 24V AC or DC, screw

SAFETY MODULE UAT CAT.4 24V SC

SQDXPSUAT13A3AP XPSUAT13A3AP 3606489601690
498.80 / EA
http://schema.org/OutOfStock
Mayer-DDS-safety module, Harmony XPSU, Cat4, features XPSUAK with delayed outputs, 24V AC or DC, screw-1
  • Country of Origin: Indonesia
This safety relay is designed for monitoring Emergency stop, Guard switch, Magnetic switch, Proximity safety switch, PNP, NPN sensor, RFID safety switch, Safety light curtain or Sensing mat/edges. The safety relay is powered with 24V AC/DC, and equipped
QTY
  • Product Description
  • Features
  • Specifications
This safety relay is designed for monitoring Emergency stop, Guard switch, Magnetic switch, Proximity safety switch, PNP, NPN sensor, RFID safety switch, Safety light curtain or Sensing mat/edges. The safety relay is powered with 24V AC/DC, and equipped
  • Power Consumption In W
    • 3 W 24 V DC
  • US Rated Supply Voltage
    • 24 V AC - 15...10 %
    • 24 V DC - 20...20 %
  • Minimum Output Current
    • 20 mA relay output
  • Safety Reliability Data
    • MTTFd > 30 years ISO 13849-1
    • Dcavg >= 99 % ISO 13849-1
    • PFHd = 0.94E-09 for SS0 ISO 13849-1
    • PFHd = 0.95E-09 for SS1 ISO 13849-1
  • Connections Terminals
    • removable screw terminal block, 0.2...2.5 mm² solid or flexible
    • removable screw terminal block, 0.25...2.5 mm² flexible with f
  • Input Output Type
    • semiconductor output 24 V DC, 20 mA Z2, not safety-related
    • semiconductor outp
  • IE Rated Operational Current
    • 5 A AC-1 for normally open relay contact
    • 3 A AC-15 for normally open relay contact
    • 5 A D
  • IP Degree Of Protection
    • IP54 mounting area)IEC 60947-1
    • IP40 housing)IEC 60947-1
    • IP20 terminals)IEC 60947-1
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0 kg CO2 eq.
    • 0.01573135168501015
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.9618798571997358
    • 1 kg CO2 eq.
  • Standards
    • IEC 60947-5-1
    • IEC 61508-1 functional safety standard
    • IEC 61508-2 functional safety standard
    • IEC 61508-3 functional safety standard
    • IEC 61
  • Safety Module Application
    • monitoring antivalent contacts
    • for emergency stop, guard and light curtain monitoring
    • monitoring of pressure-sensitive 4-wire protective devices
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 8 kg CO2 eq.
    • 7.810291136092097
  • Time Delay Range
    • 0...900 s off
  • Input Compatibility
    • normally closed circuit ISO 14119
    • XC limit switch ISO 14119
    • mechanical contact ISO 14119
    • normally closed circuit ISO 13850
    • antivale
  • UI Rated Insulation Voltage
    • 250 V 2)IEC 60947-1
  • Accessories
    • XPSES
    • XPSEC
  • Safety Level
    • can reach PL e/category 4 for normally open relay contact ISO 13849-1
    • can reach SILCL 3 for normally open relay co
  • Power Consumption In VA
    • 6.5 VA 24 V AC 50/60 Hz
  • Number Of Inputs
    • 2 positive safety input 24 V DC 8
    • 1 negative safety input
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 97 kg CO2 eq.
    • 96.85324113032115
  • Number Of Outputs
    • 4 on/off configurable pulsed output
  • Relative Humidity
    • 5-95 % non-condensing
  • Minimum Output Voltage
    • 24 V relay output
  • Carbon Footprint Of The Distribution Phase A4
    • 0.2042035264230225
    • 0.2 kg CO2 eq.
  • Associated Fuse Rating
    • 10 A gG NO relay output circuit IEC 60947-1
  • UIMP Rated Impulse Withstand Voltage
    • 4 kV II IEC 60947-1
  • Assets
    • CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001241_3D-CAD
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-04-03
    • HTML Description : Preventa module Cat.4 features XPSUAK + delayed outputs 24 VAC/DC screw
    • Manufacturer : Schneider Electric
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Manufacturing Carbon Footprint : 7.8102911360921
    • Distribution Carbon Footprint : 0.204203526423023
    • Installation Carbon Footprint : 1.57313516850102e-02
    • Use Carbon Footprint : 96.8532411303212
    • End Of Life Carbon Footprint : 0.961879857199736
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1811003EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1915
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Package Weight Lbs : 440.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : safety module
    • Range Of Product : Harmony Safety Automation
    • Returnability : Yes
    • Safety Module Name : XPSUAT
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 106 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 105.84534700172101
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1811003EN
    • Pep Verification Date : 2024-11-01
    • PCR Version : PCR-4-ed4-EN-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 440
    • Functional Unit Description : To monitor signals from a variety of different sensors/devices for safety-related interruption of safety-related electrical circuits at 100% for 10 years.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : Unit
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 262.8
    • Energy Model Manufacturing A1 A3 : Indonesia, ID
    • Energy Model Installation A5 : Electricity Mix; Low voltage; 2018; Italy, IT
    • Energy Model Use B6 : Electricity Mix; Low voltage; 2018; Italy, IT
    • Energy Model End Of Life C1 C4 : Electricity Mix; Low voltage; 2018; Italy, IT
    • Recyclability Potential In : 0
    • Acidification Ap Mole Of H Equiv Total Life Cycle : 0.590230157525148
    • Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.06387546611797092
    • Acidification Ap Mole Of H Equiv Distribution A4 : 0.0008873499478103323
    • Acidification Ap Mole Of H Equiv Installation A5 : 0.00004970958529208633
    • Acidification Ap Mole Of H Equiv Maintenance B2 : 0
    • Acidification Ap Mole Of H Equiv Repair B3 : 0
    • Acidification Ap Mole Of H Equiv Replacement B4 : 0
    • Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.5248087264484919
    • Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.0006089054255827682
    • Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.24575965410201514
    • Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.1148216064654566
    • Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
    • Climate Change Biogenics Kg Co2 Eq Installation A5 : -0.00000200334626932
    • Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
    • Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
    • Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.07432459247854835
    • Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.05661545850427951
    • Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 105.59955490485036
    • Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 7.695437086858002
    • Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.2042035264230225
    • Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.01573335503127947
    • Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 96.7789165378426
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.9052643986954563
    • Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Total Kg Co2 Eq Total Life Cycle : 105.84534700172101
    • Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 7.810291136092097
    • Climate Change Total Kg Co2 Eq Distribution A4 : 0.2042035264230225
    • Climate Change Total Kg Co2 Eq Installation A5 : 0.01573135168501015
    • Climate Change Total Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Total Kg Co2 Eq Repair B3 : 0
    • Climate Change Total Kg Co2 Eq Replacement B4 : 0
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 96.85324113032115
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.9618798571997358
    • Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Maintenance B2 : 0
    • Components For Re Use Kg Repair B3 : 0
    • Components For Re Use Kg Replacement B4 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.005303354367600888
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.005297735663247685
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000000001755268146
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000000016682540496
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.00000562154198443546
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : -0.00000000302200931917
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 2630.667173258729
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 128.4702387306018
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 2.540789270930137
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.04431292770085394
    • Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 2498.621306416218
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0.9905259132777524
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Ecotoxicity Fresh Water Ctue Total Life Cycle : 1461.3020846281113
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 138.4061434291118
    • Ecotoxicity Fresh Water Ctue Distribution A4 : 0.8374571630109843
    • Ecotoxicity Fresh Water Ctue Installation A5 : 0.5499274836643823
    • Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
    • Ecotoxicity Fresh Water Ctue Repair B3 : 0
    • Ecotoxicity Fresh Water Ctue Replacement B4 : 0
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 1054.011912666705
    • Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 267.4966438856191
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : 0
    • Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00000445490292319808
    • Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00000034960666150161
    • Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.00000000240854240795
    • Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000000020679166792
    • Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
    • Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
    • Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.00000409884747830988
    • Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000000383344931071
    • Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : 0
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0.00000786060230749787
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.00000786060230749787
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0
    • Exported Energy Mj By Energy Vector Maintenance B2 : 0
    • Exported Energy Mj By Energy Vector Repair B3 : 0
    • Exported Energy Mj By Energy Vector Replacement B4 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
    • Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.0003086500779825958
    • Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.00002061570969300052
    • Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000002391085346339
    • Freshwater Eutrophication Kg P Eq Installation A5 : 0.00000001757979793113
    • Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
    • Freshwater Eutrophication Kg P Eq Repair B3 : 0
    • Freshwater Eutrophication Kg P Eq Replacement B4 : 0
    • Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.000279551082783351
    • Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.00000844179485484981
    • Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : 0
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 18.742969491147022
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 18.49751631032616
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0.0001691821170155856
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.00002201021402968264
    • Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.2452619884898187
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : 0
    • Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00000200052514721123
    • Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000178767690515618
    • Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000000288109582
    • Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000000073013855442
    • Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000001199846241008
    • Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000020011675999472
    • Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000079430127316888
    • Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000031618245537551
    • Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000000053933381904
    • Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000000025058191698
    • Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000045165070490049
    • Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000002567819715685
    • Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : 0
    • Impacts Related To Land Use Soil Quality Total Life Cycle : 1.2793107671618862
    • Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.1071868982915522
    • Impacts Related To Land Use Soil Quality Distribution A4 : 0
    • Impacts Related To Land Use Soil Quality Installation A5 : 0
    • Impacts Related To Land Use Soil Quality Maintenance B2 : 0
    • Impacts Related To Land Use Soil Quality Repair B3 : 0
    • Impacts Related To Land Use Soil Quality Replacement B4 : 0
    • Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 1.172123868870334
    • Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0
    • Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 184.2574239227539
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 32.38424886669542
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.000452737247735571
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.00004377701856385442
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 151.8723152228546
    • Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.0003633189375689051
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.06758728612097178
    • Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.006261104843259198
    • Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.0004077733247846821
    • Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.00002304780866672564
    • Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.06058126203960328
    • Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.0003140981046578901
    • Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : 0
    • Materials For Energy Recovery Kg Total Life Cycle : 0.00000010290816826412
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0.00000010290816826412
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Maintenance B2 : 0
    • Materials For Energy Recovery Kg Repair B3 : 0
    • Materials For Energy Recovery Kg Replacement B4 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0
    • Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
    • Materials For Recycling Kg Total Life Cycle : 0.0000021175367071389
    • Materials For Recycling Kg Manufacturing A1 A3 : 0.0000021175367071389
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0
    • Materials For Recycling Kg Maintenance B2 : 0
    • Materials For Recycling Kg Repair B3 : 0
    • Materials For Recycling Kg Replacement B4 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0
    • Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
    • Net Use Of Fresh Water M3 Total Life Cycle : 0.1563472086725384
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.07531820912293644
    • Net Use Of Fresh Water M3 Distribution A4 : 0.0002412102200555135
    • Net Use Of Fresh Water M3 Installation A5 : 0.0002201184647444458
    • Net Use Of Fresh Water M3 Maintenance B2 : 0
    • Net Use Of Fresh Water M3 Repair B3 : 0
    • Net Use Of Fresh Water M3 Replacement B4 : 0
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.08009420343368664
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0004734674311153743
    • Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : 0
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 13.367215728649253
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 1.58734296449626
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0002078380739623183
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.09676638993346966
    • Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Non Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 11.57433268998374
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.1085658461618219
    • Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00000170667737379433
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00000112595468930805
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00000018019955232591
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000000015097886849
    • Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.00000039950450765027
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000000086764564162
    • Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.22497411480061458
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.02407180282469902
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.001448830717273032
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.00005654478512862493
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.1986434737878885
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.0007534626856254026
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : 0
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0023863339496902024
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.001080345662425871
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.00004059905570508371
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.00000024748747206798
    • Radioactive Waste Disposed Of Kg Maintenance B2 : 0
    • Radioactive Waste Disposed Of Kg Repair B3 : 0
    • Radioactive Waste Disposed Of Kg Replacement B4 : 0
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.001262537892354387
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0000026038517327926
    • Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : 0
    • Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.9118520158160089
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.06683154330810837
    • Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.004418641328365237
    • Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.0002378349307932561
    • Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.8372586725837028
    • Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.003105323665039257
    • Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2.405871519227559
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.405871519227559
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 3079.069195131448
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 134.3405414671321
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 2.540805882198143
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.04442134346959559
    • Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 2941.151500037309
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0.9919264013393916
    • Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 448.40202187271973
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 5.870302736530294
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00001661126800603013
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0001084157687416412
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 442.5301936210911
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.001400488061639221
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2.405871519227559
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.405871519227559
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2628.261301739501
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 126.0643672113742
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 2.540789270930137
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.04431292770085394
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 2498.621306416218
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.9905259132777524
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3.328604689655172
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.328604689655172
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 445.0734171830646
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.541698046875121
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00001661126800603013
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0001084157687416412
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 442.5301936210911
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.001400488061639221
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0.00001348671999999999
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.00001348671999999999
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Maintenance B2 : 0
    • Use Of Secondary Materials Kg Repair B3 : 0
    • Use Of Secondary Materials Kg Replacement B4 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
    • Water Use M3 Eq Total Life Cycle : 6.698681354682388
    • Water Use M3 Eq Manufacturing A1 A3 : 3.218485824026983
    • Water Use M3 Eq Distribution A4 : 0.0103599789513843
    • Water Use M3 Eq Installation A5 : 0.009454088060773948
    • Water Use M3 Eq Maintenance B2 : 0
    • Water Use M3 Eq Repair B3 : 0
    • Water Use M3 Eq Replacement B4 : 0
    • Water Use M3 Eq Operational Energy Use B6 : 3.440046037476841
    • Water Use M3 Eq End Of Life C1 C4 : 0.02033542616640532
    • Water Use M3 Eq Benefits Loads Beyond System Boundaries D : 0
    • Packaging Weight In G : 96.3
  • General Attributes
    • Product Or Component Type : safety module
    • Range Of Product : Harmony Safety Automation
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=465471234&lang=en-us
    • Take Back : No
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 105.845347001721
    • Circularity Profile : ENVEOLI1811003EN
    • Environmental Disclosure : ENVPEP1811003EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1811003EN
    • Pep Verification Date : 2024-11-01
    • PCR Version : PCR-4-ed4-EN-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • Specifications
    • Country of Origin : Indonesia
