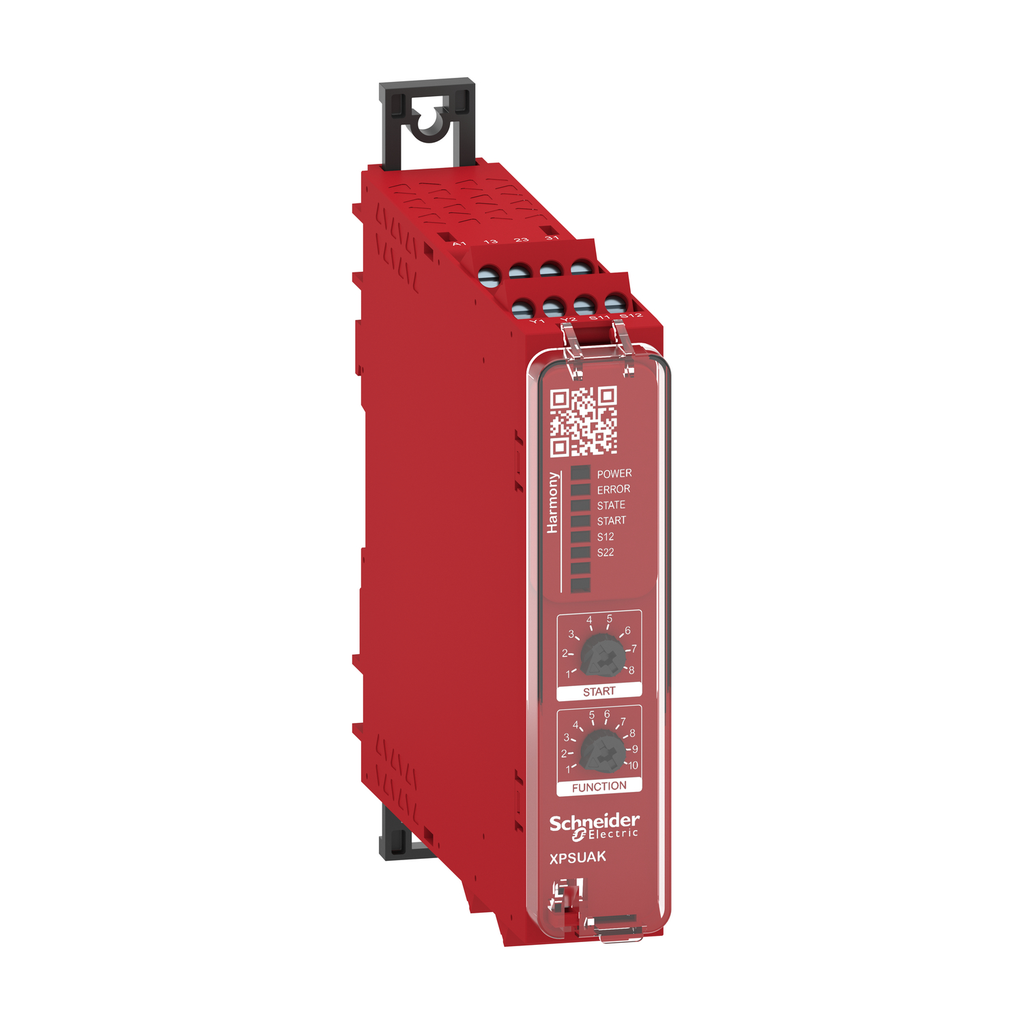

Safety module, Harmony XPSU, Cat 4, features XPSUAF with PNP or NPN, safety mat, 48 to 240V AC or DC, screw

SAFETY MODULE, HARMONY SAFETY

SQDXPSUAK32AP XPSUAK32AP 3606489601676
295.86 / EA
http://schema.org/OutOfStock
Mayer-DDS-Safety module, Harmony XPSU, Cat 4, features XPSUAF with PNP or NPN, safety mat, 48 to 240V AC or DC, screw-1
  • Country of Origin: Indonesia
This safety relay is designed for monitoring Emergency stop, Guard switch, Magnetic switch, Proximity safety switch, PNP, NPN sensors, RFID safety switch, Safety light curtain or Sensing mat/edges. The safety relay is powered with 48-240V AC/DC, and equi
QTY
  • Product Description
  • Features
  • Specifications
This safety relay is designed for monitoring Emergency stop, Guard switch, Magnetic switch, Proximity safety switch, PNP, NPN sensors, RFID safety switch, Safety light curtain or Sensing mat/edges. The safety relay is powered with 48-240V AC/DC, and equi
  • Power Consumption In W
    • 3.0 W 48 V DC
  • US Rated Supply Voltage
    • 48...240 V AC/DC - 10...10 %
  • Minimum Output Current
    • 10 mA relay output
  • Safety Reliability Data
    • MTTFd > 30 years ISO 13849-1
    • Dcavg >= 99 % ISO 13849-1
    • PFHd = 1.61E-09 ISO 13849-1
    • HFT = 1 IEC 62061
    • PFHd = 1.61E-09 IEC 62061
  • Connections Terminals
    • removable screw terminal block, 0.2...2.5 mm² solid or flexible
    • removable screw terminal block, 0.25...2.5 mm² flexible with f
  • Input Output Type
    • semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related
    • semiconductor pulsed di
  • IE Rated Operational Current
    • 5 A AC-1 for normally open relay contact
    • 3 A AC-15 for normally open relay contact
    • 5 A D
  • IP Degree Of Protection
    • IP20 terminals)IEC 60529
    • IP40 housing)IEC 60529
    • IP54 mounting area)IEC 60529
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.01040414395531353
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.6 kg CO2 eq.
    • 0.6361523601025525
  • Standards
    • IEC 60947-5-1
    • IEC 61508-1 functional safety standard
    • IEC 61508-2 functional safety standard
    • IEC 61508-3 functional safety standard
    • IEC 61
  • Safety Module Application
    • monitoring antivalent contacts
    • for emergency stop, guard and light curtain monitoring
    • monitoring of pressure-sensitive 4-wire protective devices
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 5 kg CO2 eq.
    • 5.165442546824546
  • Input Compatibility
    • normally closed circuit ISO 14119
    • XC limit switch ISO 14119
    • mechanical contact ISO 14119
    • normally closed circuit ISO 13850
    • antivale
  • UI Rated Insulation Voltage
    • 250 V 2)IEC 60947-1
  • Accessories
    • XPSES
    • XPSEC
  • Safety Level
    • can reach PL e/category 4 for normally open relay contact ISO 13849-1
    • can reach SILCL 3 for normally open relay co
  • Power Consumption In VA
    • 6.5 VA 240 V AC 50/60 Hz
  • Number Of Inputs
    • 2 safety input 24 V DC 5
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 97 kg CO2 eq.
    • 96.85324113032115
  • Number Of Outputs
    • 3 on/off configurable pulsed output
  • Relative Humidity
    • 5-95 % non-condensing
  • Minimum Output Voltage
    • 12 V relay output
  • Carbon Footprint Of The Distribution Phase A4
    • 0.13505278679340807
    • 0.1 kg CO2 eq.
  • Associated Fuse Rating
    • 10 A gG NO relay output circuit IEC 60947-1
  • UIMP Rated Impulse Withstand Voltage
    • 4 kV II IEC 60947-1
  • Assets
    • CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001239_3D-CAD
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-04-03
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Manufacturing Carbon Footprint : 5.16544254682455
    • Distribution Carbon Footprint : 0.135052786793408
    • Installation Carbon Footprint : 1.04041439553135e-02
    • Use Carbon Footprint : 96.8532411303212
    • End Of Life Carbon Footprint : 0.636152360102552
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1811003EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1915
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Package Weight Lbs : 291.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : safety module
    • Range Of Product : Harmony Safety Automation
    • Returnability : Yes
    • Safety Module Name : XPSUAK
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 103 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 102.80029296799698
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1811003EN
    • Pep Verification Date : 2024-11-01
    • PCR Version : PCR-4-ed4-EN-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 291
    • Functional Unit Description : To monitor signals from a variety of different sensors/devices for safety-related interruption of safety-related electrical circuits at 100% for 10 years.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : Unit
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 262.8
    • Energy Model Manufacturing A1 A3 : Indonesia, ID
    • Energy Model Installation A5 : Electricity Mix; Low voltage; 2018; Italy, IT
    • Energy Model Use B6 : Electricity Mix; Low voltage; 2018; Italy, IT
    • Energy Model End Of Life C1 C4 : Electricity Mix; Low voltage; 2018; Italy, IT
    • Recyclability Potential In : 0
    • Acidification Ap Mole Of H Equiv Total Life Cycle : 0.5680760820014622
    • Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.042244910546203496
    • Acidification Ap Mole Of H Equiv Distribution A4 : 0.0005868609882109244
    • Acidification Ap Mole Of H Equiv Installation A5 : 0.00003287611209090255
    • Acidification Ap Mole Of H Equiv Maintenance B2 : 0
    • Acidification Ap Mole Of H Equiv Repair B3 : 0
    • Acidification Ap Mole Of H Equiv Replacement B4 : 0
    • Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.5248087264484919
    • Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.0004027079064649672
    • Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.18770550823406845
    • Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.0759388351851088
    • Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
    • Climate Change Biogenics Kg Co2 Eq Installation A5 : -0.000001324940373573
    • Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
    • Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
    • Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.07432459247854835
    • Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.03744340551078486
    • Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 102.61256600329547
    • Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 5.089482255171997
    • Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.13505278679340807
    • Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.010405468895687104
    • Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 96.7789165378426
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.5987089545917677
    • Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Total Kg Co2 Eq Total Life Cycle : 102.80029296799698
    • Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 5.165442546824546
    • Climate Change Total Kg Co2 Eq Distribution A4 : 0.13505278679340807
    • Climate Change Total Kg Co2 Eq Installation A5 : 0.01040414395531353
    • Climate Change Total Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Total Kg Co2 Eq Repair B3 : 0
    • Climate Change Total Kg Co2 Eq Replacement B4 : 0
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 96.85324113032115
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.6361523601025525
    • Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Maintenance B2 : 0
    • Components For Re Use Kg Repair B3 : 0
    • Components For Re Use Kg Replacement B4 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0035093493880171346
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.00350372972273881
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000000001160870524
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000000011033225646
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.00000562154198443546
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : -0.00000000199864707245
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 2585.9516410779693
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 84.96554425137529
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 1.6803856314560681
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.029306959002155675
    • Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 2498.621306416218
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0.6550978199177863
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Ecotoxicity Fresh Water Ctue Total Life Cycle : 1323.3788218502714
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 91.5367903133444
    • Ecotoxicity Fresh Water Ctue Distribution A4 : 0.5538637146277191
    • Ecotoxicity Fresh Water Ctue Installation A5 : 0.3637020403325801
    • Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
    • Ecotoxicity Fresh Water Ctue Repair B3 : 0
    • Ecotoxicity Fresh Water Ctue Replacement B4 : 0
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 1054.011912666705
    • Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 176.91255311526174
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : 0
    • Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00000433432960208821
    • Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00000023121713294766
    • Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.00000000159292236526
    • Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000000013676448946
    • Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
    • Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
    • Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.00000409884747830988
    • Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000000253530397595
    • Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : 0
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0.00000519871652609518
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.00000519871652609518
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0
    • Exported Energy Mj By Energy Vector Maintenance B2 : 0
    • Exported Energy Mj By Energy Vector Repair B3 : 0
    • Exported Energy Mj By Energy Vector Replacement B4 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
    • Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.00029879610006285155
    • Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.00001363448072877989
    • Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000001581376899511
    • Freshwater Eutrophication Kg P Eq Installation A5 : 0.00000001162663908627
    • Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
    • Freshwater Eutrophication Kg P Eq Repair B3 : 0
    • Freshwater Eutrophication Kg P Eq Replacement B4 : 0
    • Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.000279551082783351
    • Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.0000055830961426393
    • Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : 0
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 12.39591845891769
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 12.233584650692983
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0.00011189090011712594
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.00001455675518781284
    • Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.16220736056940283
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : 0
    • Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.0000013271377016763
    • Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000118230449863739
    • Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000000190545201
    • Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.0000000004828870894
    • Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000001199846241008
    • Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000013234994808742
    • Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000067826733073254
    • Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000020911157844153
    • Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000000035669577578
    • Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000000016572576782
    • Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000045165070490049
    • Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000001698262584692
    • Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : 0
    • Impacts Related To Land Use Soil Quality Total Life Cycle : 1.243013385694974
    • Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.0708895168246402
    • Impacts Related To Land Use Soil Quality Distribution A4 : 0
    • Impacts Related To Land Use Soil Quality Installation A5 : 0
    • Impacts Related To Land Use Soil Quality Maintenance B2 : 0
    • Impacts Related To Land Use Soil Quality Repair B3 : 0
    • Impacts Related To Land Use Soil Quality Replacement B4 : 0
    • Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 1.172123868870334
    • Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0
    • Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 173.29064847665163
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 21.417764591382653
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.0002994239524796617
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.00002895252818654917
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 151.8723152228546
    • Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.00024028593371034406
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.06521479160250836
    • Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.004140867066791879
    • Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.0002696864488916875
    • Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.000015242982550039
    • Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.06058126203960328
    • Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.00020773306467146825
    • Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : 0
    • Materials For Energy Recovery Kg Total Life Cycle : 0.00000006805972037468
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0.00000006805972037468
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Maintenance B2 : 0
    • Materials For Energy Recovery Kg Repair B3 : 0
    • Materials For Energy Recovery Kg Replacement B4 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0
    • Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
    • Materials For Recycling Kg Total Life Cycle : 0.00000140046177676686
    • Materials For Recycling Kg Manufacturing A1 A3 : 0.00000140046177676686
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0
    • Materials For Recycling Kg Maintenance B2 : 0
    • Materials For Recycling Kg Repair B3 : 0
    • Materials For Recycling Kg Replacement B4 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0
    • Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
    • Net Use Of Fresh Water M3 Total Life Cycle : 0.13052516826210905
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.049812724669942056
    • Net Use Of Fresh Water M3 Distribution A4 : 0.00015952766826398735
    • Net Use Of Fresh Water M3 Installation A5 : 0.00014557834827416756
    • Net Use Of Fresh Water M3 Maintenance B2 : 0
    • Net Use Of Fresh Water M3 Repair B3 : 0
    • Net Use Of Fresh Water M3 Replacement B4 : 0
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.08009420343368664
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0003131341419422135
    • Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : 0
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 12.76008033601025
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 1.049810915155481
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.00013745654437053324
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.06399777152418107
    • Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Non Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 11.57433268998374
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.07180150280247767
    • Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00000126402110775918
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00000074466548770146
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00000011917743119736
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000000009985193348
    • Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.00000039950450765027
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000000057382927662
    • Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.2160576022758505
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.015920215049971397
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.000958203951651028
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.00003739666471006785
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.1986434737878885
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.0004983128216295276
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : 0
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0020057757393651195
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0007145013358316557
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.000026850739114044
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.00000016367921448132
    • Radioactive Waste Disposed Of Kg Maintenance B2 : 0
    • Radioactive Waste Disposed Of Kg Repair B3 : 0
    • Radioactive Waste Disposed Of Kg Replacement B4 : 0
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.001262537892354387
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00000172209285055147
    • Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : 0
    • Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.8865919973123416
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.044199952506044395
    • Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.002922328696714282
    • Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.00015729537468372166
    • Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.8372586725837028
    • Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.0020537481511964176
    • Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1.5911559365800447
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.5911559365800447
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 3032.36524838366
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 88.84794901576238
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 1.6803966175446812
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.02937866124920981
    • Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 2941.151500037309
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0.6560240517949159
    • Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 446.41360730569096
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.882404764387081
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00001098608861307902
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.00007170224705413088
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 442.5301936210911
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0009262318771295757
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1.5911559365800447
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.5911559365800447
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2584.3604851413893
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 83.37438831479521
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 1.6803856314560681
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.029306959002155675
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 2498.621306416218
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.6550978199177863
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2.201418101567398
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.201418101567398
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 444.2121892041236
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.6809866628196823
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00001098608861307902
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.00007170224705413088
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 442.5301936210911
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0009262318771295757
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0.00000891962618181818
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.00000891962618181818
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Maintenance B2 : 0
    • Use Of Secondary Materials Kg Repair B3 : 0
    • Use Of Secondary Materials Kg Replacement B4 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
    • Water Use M3 Eq Total Life Cycle : 5.595188940446873
    • Water Use M3 Eq Manufacturing A1 A3 : 2.1285894881633003
    • Water Use M3 Eq Distribution A4 : 0.0068517133519382534
    • Water Use M3 Eq Installation A5 : 0.006252590058375498
    • Water Use M3 Eq Maintenance B2 : 0
    • Water Use M3 Eq Repair B3 : 0
    • Water Use M3 Eq Replacement B4 : 0
    • Water Use M3 Eq Operational Energy Use B6 : 3.440046037476841
    • Water Use M3 Eq End Of Life C1 C4 : 0.013449111396418065
    • Water Use M3 Eq Benefits Loads Beyond System Boundaries D : 0
    • Air Pollution M3 Total Life Cycle : 0
    • Air Pollution M3 Manufacturing A1 A3 : 0
    • Air Pollution M3 Distribution A4 : 0
    • Air Pollution M3 Installation A5 : 0
    • Air Pollution M3 Maintenance B2 : 0
    • Air Pollution M3 Repair B3 : 0
    • Air Pollution M3 Replacement B4 : 0
    • Air Pollution M3 Operational Energy Use B6 : 0
    • Air Pollution M3 End Of Life C1 C4 : 0
    • Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
    • Water Pollution M3 Total Life Cycle : 0
    • Water Pollution M3 Manufacturing A1 A3 : 0
    • Water Pollution M3 Distribution A4 : 0
    • Water Pollution M3 Installation A5 : 0
    • Water Pollution M3 Maintenance B2 : 0
    • Water Pollution M3 Repair B3 : 0
    • Water Pollution M3 Replacement B4 : 0
    • Water Pollution M3 Operational Energy Use B6 : 0
    • Water Pollution M3 End Of Life C1 C4 : 0
    • Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
  • General Attributes
    • Product Or Component Type : safety module
    • Range Of Product : Harmony Safety Automation
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=465471232&lang=en-us
    • Take Back : No
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 102.800292967997
    • Circularity Profile : ENVEOLI1811003EN
    • Environmental Disclosure : ENVPEP1811003EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1811003EN
    • Pep Verification Date : 2024-11-01
    • PCR Version : PCR-4-ed4-EN-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • Specifications
    • Country of Origin : Indonesia
