SQUARE D

safety module, Harmony XPSU, Cat 4, features 6 x XPSUAF, 24V AC or DC, screw

safety module, Harmony XPSU, Cat 4, features 6 x XPSUAF, 24V AC or DC, screw

SQDXPSUDN13AP XPSUDN13AP SQDXPSUDN13AP
0.00 / EA
http://schema.org/OutOfStock

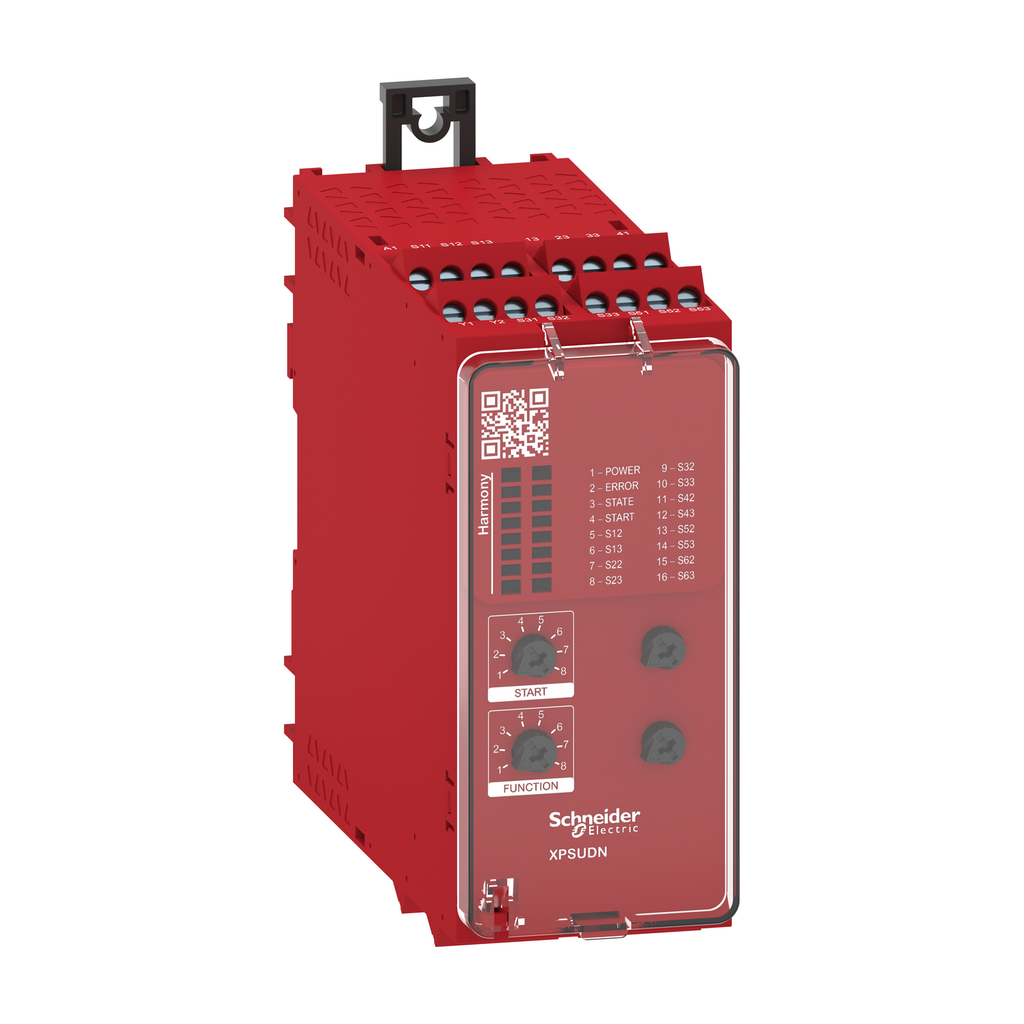

Mayer-DDS-safety module, Harmony XPSU, Cat 4, features 6 x XPSUAF, 24V AC or DC, screw-1
  • Depth: 120 mm
  • Number of Outputs: 7 On/off Configurable Pulsed Output
This safety relay is designed for monitoring Emergency stop, Guard switch, Magnetic switch, Proximity safety switch, PNP sensor, RFID safety switch or safety light curtain. The safety relay is powered with 24V AC/DC, and equipped with a screw removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. This safety relay embeds 6 safety inputs, 7 ON/OFF configurable pulsed outputs, 3 NO, 1 NC safety outputs, and 1 solid-state diagnostic output with complete status information. The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO 13849-1, SILCL 3 conforming to IEC 62061, SIL 3 conforming to IEC 61508. This safety relay weighs 0,350kg. Its dimensions are 45mm (Width) x 120mm (Depth) x 100mm (Height). This safety relay weighs 0,350kg. Its dimensions are 45mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC60947-5-1, IEC61508-1/2/3, ISO13849-1, IEC62061 functional safety standards, is certified by cULus, TÜV, EAC, CCC and KC marking. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Universal is the first choice for a broad range of simple to mid-complex machines.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001243_3D-CAD
  • Conformance Attributes
    • Product Certifications : TÜV, cULus
    • Standards : IEC 60947-5-1, IEC 61508-1 functional safety standard, IEC 61508-2 functional safety standard, IEC 61508-3 functional safety standard, IEC 61508-4 functional safety standard, IEC 61508-5 functional safety standard, IEC 61508-6 functional safety standard, IEC 61508-7 functional safety standard, ISO 13849-1 functional safety standard, IEC 62061 functional safety standard
  • Complementary Attributes
    • Ie Rated Operational Current : 3 A DC-1 for normally closed relay contact, 1 A DC-13 for normally closed relay contact, 5 A AC-1 for normally open relay contact, 3 A AC-15 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A DC-13 for normally open relay contact, 3 A AC-1 for normally closed relay contact, 1 A AC-15 for normally closed relay contact
    • Us Rated Supply Voltage : 24 V AC - 15...10 %, 24 V DC - 20...20 %
    • Maximum Line Resistance : 500 Ohm
    • Maximum Response Time On Input Open : 20 ms
    • Minimum Output Current : 10 mA relay output
    • Minimum Output Voltage : 12 V relay output
    • Ui Rated Insulation Voltage : 250 V 2)IEC 60947-1
    • Uimp Rated Impulse Withstand Voltage : 4 kV II IEC 60947-1
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Associated Fuse Rating : 10 A gG NO relay output circuit IEC 60947-1, 4 A gG NC relay output circuit IEC 60947-1
    • Electrical Circuit Type : NC pair, PNP pair, antivalent pair, OSSD pair
    • Function Of Module : emergency stop button with 2 NC contacts, guard monitoring with 1 or 2 limit switches, monitoring 2 PNP sensors, magnetic switch monitoring, light curtain monitoring, RFID switch, monitoring of electro-sensitive protection equipment (ESPE), proximity sensor monitoring
    • Local Signalling : LED (green) for power ON, LED (red) for error, LED (yellow) for start, LED (yellow) for safety status, LED (yellow) for safety input S12, LED (yellow) for safety input S13, LED (yellow) for safety input S22, LED (yellow) for safety input S23, LED (yellow) for safety input S32, LED (yellow) for safety input S33, LED (yellow) for safety input S42, LED (yellow) for safety input S43, LED (yellow) for safety input S52, LED (yellow) for safety input S53, LED (yellow) for safety input S62, LED (yellow) for safety input S73
    • Safety Level : can reach PL e/category 4 for normally open relay contact ISO 13849-1, can reach SILCL 3 for normally open relay contact IEC 62061, can reach SIL 3 for normally open relay contact IEC 61508, can reach PL c/category 1 for normally closed relay contact ISO 13849-1, can reach SILCL 1 for normally closed relay contact IEC 62061, can reach SIL 1 for normally closed relay contact IEC 61508
    • Safety Module Application : monitoring antivalent contacts, for emergency stop, guard and light curtain monitoring
    • Safety Reliability Data : PFHd = 0.88E-09 IEC 62061, PFHd = 0.88E-09 IEC 61508-1, SFF > 99% IEC 61508-1, MTTFd > 30 years ISO 13849-1, Dcavg >= 99 % ISO 13849-1, PFHd = 0.88E-09 ISO 13849-1, HFT = 1 IEC 62061, SFF > 99% IEC 62061, HFT = 1 IEC 61508-1, type = B IEC 61508-1
    • Connections Terminals : removable screw terminal block, 0.2...2.5 mm² solid or flexible, removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor, removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor, removable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel, removable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel
    • Ie Rated Operational Current : 3 A DC-1 for normally closed relay contact, 1 A DC-13 for normally closed relay contact, 5 A AC-1 for normally open relay contact, 3 A AC-15 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A DC-13 for normally open relay contact, 3 A AC-1 for normally closed relay contact, 1 A AC-15 for normally closed relay contact
    • Carbon Footprint Of The Distribution Phase A4 : 0.20884451565990939, 0.2 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.9837407630451843, 1 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.016088882405124016
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 8 kg CO2 eq., 7.9877977528214625
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 145 kg CO2 eq., 145.2798616954817
    • Medium Desc : safety module, Harmony XPSU, Cat 4, features 6 x XPSUAF, 24V AC or DC, screw
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Return Indicator : N
    • Stocking Flag : Y
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Legacy Weee Scope : In
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1811003EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Mounting Support : 35 mm symmetrical DIN rail
    • Power Consumption In Va : 10.5 VA 24 V AC 50/60 Hz
    • Power Consumption In W : 4.5 W 24 V DC
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : safety module
    • Range Of Product : Harmony Safety Automation
    • Returnability : No
    • Safety Module Name : XPSUDN
    • Software Version : v6.2.2
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 154 kg CO2 eq.
    • Type Of Start : automatic/manual/monitored
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Ith Conventional Free Air Thermal Current : 16 A
    • Pep Code : ENVPEP1811003EN
    • Database Version : 2023-02
    • Pep Verification Date : 2024-11-01
    • Pcr Version : PCR-4-ed4-EN-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : To monitor signals from a variety of different sensors/devices for safety-related interruption of safety-related electrical circuits at 100% for 10 years.
    • Functional Unit Unit : Unit
    • Energy Model Manufacturing A1 A3 2 : Indonesia, ID
    • Energy Model Installation A5 2 : Electricity Mix; Low voltage; 2018; Italy, IT
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2018; Italy, IT
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Low voltage; 2018; Italy, IT
    • Height Nominal : 100 mm
    • Width Nominal : 45 mm
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -25-50 °C at 24 V AC, -25-50 °C at 24 V AC, -25-55 °C at 24 V DC, -25-55 °C at 24 V DC, -25-50 °C at 24 V AC, -25-50 °C at 24 V AC, -25-55 °C at 24 V DC, -25-50 °C at 24 V AC, -25-50 °C at 24 V AC, -25-55 °C at 24 V DC, -25-55 °C at 24 V DC, -25-50 °C at 24 V AC, -25-50 °C at 24 V AC, -25-55 °C at 24 V DC
    • Ambient Air Temperature For Storage : -25-85 °C, -25-85 °C
    • Ip Degree Of Protection : IP20 terminals)IEC 60947-1, IP40 housing)IEC 60947-1, IP54 mounting area)IEC 60947-1
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 154.4763336094134
    • Circularity Profile : ENVEOLI1811003EN
    • Environmental Disclosure : ENVPEP1811003EN
    • Eu Rohs Directive : Compliant By Exemption
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 5-95 % non-condensing
    • Pep Code : ENVPEP1811003EN
    • Pep Verification Date : 2024-11-01
    • Pcr Version : PCR-4-ed4-EN-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : safety module
    • Range Of Product : Harmony Safety Automation
  • ETIM
    • ETIM 8 : EC001449
    • ETIM 9 : EC001449
  • Output Attributes
    • Minimum Output Current : 10 mA relay output
    • Minimum Output Voltage : 12 V relay output
    • Number Of Outputs : 7 on/off configurable pulsed output
  • Input Attributes
    • Input Compatibility : normally closed circuit ISO 14119, XC limit switch ISO 14119, mechanical contact ISO 14119, normally closed circuit ISO 13850, antivalent pair ISO 14119, OSSD pair IEC 61496-1-2, 3-wire proximity sensors PNP
    • Synchronisation Time Between Inputs : 0.5 s, 2 s, 2.2 s, 4 s
    • Input Output Type : semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related
    • Input Protection Type : internal, electronic
    • Maximum Response Time On Input Open : 20 ms
    • Number Of Inputs : 6 safety input 24 V DC 5
  • Specifications
    • Depth : 120 mm
