Safety module, Harmony Safety Automation, Cat.4, Expansion use with Universal range, 48-240v AC/DC, spring

SAFETY MODULE, HARMONY SAFETY

SQDXPSUEP34AC XPSUEP34AC SQDXPSUEP34AC
0.00 / EA
http://schema.org/OutOfStock

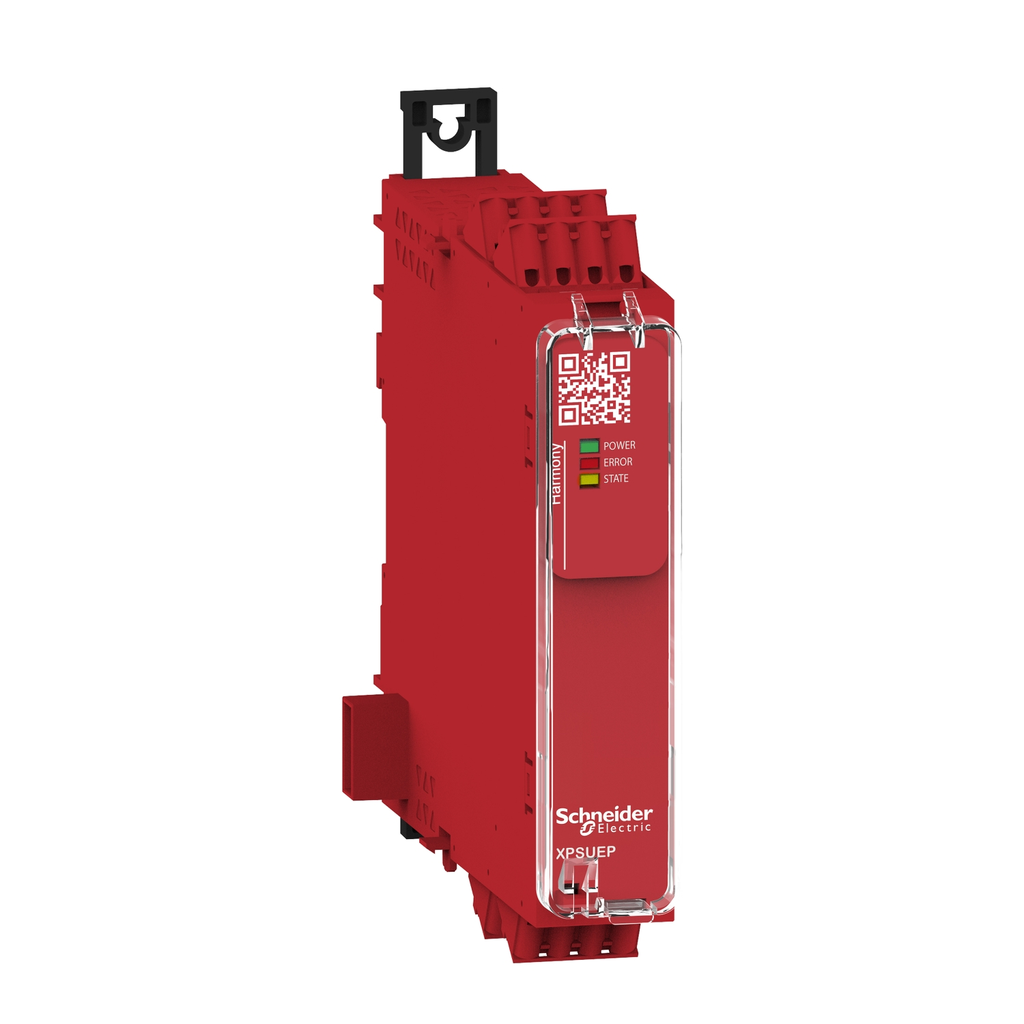

Mayer-DDS-Safety module, Harmony Safety Automation, Cat.4, Expansion use with Universal range, 48-240v AC/DC, spring-1
  • Country of Origin: Indonesia
  • Depth: 120 mm
This safety relay is designed for extending the number of safety contacts. The safety relay is powered with 48-240V AC/DC and equipped with a spring removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. This safety relay embeds a safety extension bus, 4 NO and 2 single NC safety outputs. The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO 13849-1, SILCL 3 conforming to IEC 62061, SIL 3 conforming to IEC 61508. This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC60947-5-1, IEC61508-1/2/3, ISO13849-1, IEC62061 functional safety standards, is certified by cULus, TÜV, EAC, CCC and KC marking. XPSUEP can be only used with XPSUAF, XPSUAK, XPSUAT, XPSUDN and XPSUS safety modules. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Universal is the first choice for a broad range of simple to mid-complex machines.
QTY
  • Features
  • Specifications
  • Features
    • More than 40 different diagnostic messages, without additional fieldbus interface
    • Reduced down time of the machine due to messages
    • Status information about upcoming test intervals and amount of remaining cycles before reaching end of life time
    • ECODESIGN: Optimized Energy Efficiency: Reduction of 24 per cent of CO2 on the whole product life cycle
    • Reduce risk to an acceptable level
    • IP40 housing, IP20 terminals
    • DIN-rail and direct wall mounting possibility
    • More than 40 different diagnostic messages without additional fieldbus interface
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : TÜV, cULus
    • Standards : IEC 60947-5-1, IEC 61508-1 functional safety standard, IEC 61508-2 functional safety standard, IEC 61508-3 functional safety standard, IEC 61508-4 functional safety standard, IEC 61508-5 functional safety standard, IEC 61508-6 functional safety standard, IEC 61508-7 functional safety standard, ISO 13849-1 functional safety standard, IEC 62061 functional safety standard
  • Complementary Attributes
    • Maximum Line Resistance : 60 Ohm
    • Maximum Response Time On Input Open : 20 ms
    • Minimum Output Current : 10 mA relay output
    • Minimum Output Voltage : 12 V relay output
  • Important Information Attributes
    • Associated Fuse Rating : 10 A gG NO relay output circuit IEC 60947-1, 4 A gG NC relay output circuit IEC 60947-1
    • Local Signalling : LED (green) for power ON, LED (red) for error, LED (yellow) for safety output status
    • Safety Level : can reach PL e/category 4 for normally open relay contact ISO 13849-1, can reach SILCL 3 for normally open relay contact IEC 62061, can reach SIL 3 for normally open relay contact IEC 61508, can reach PL c/category 1 for normally closed relay contact ISO 13849-1, can reach SILCL 1 for normally closed relay contact IEC 62061, can reach SIL 1 for normally closed relay contact IEC 61508
    • Ie Rated Operational Current2 : 5 A AC-1 for normally open relay contact, 3 A AC-15 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A DC-13 for normally open relay contact
    • Carbon Footprint Of The Distribution Phase A4 : 0.1406219738776723, 0.1 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.7 kg CO2 eq., 0.6623854471170908
    • Carbon Footprint Of The Installation Phase A5 : 0.01083318081945017, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 5 kg CO2 eq., 5.378450486899784
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 65 kg CO2 eq., 64.56882742021409
    • Connections Terminals : removable spring terminal block, 0.2...2.5 mm² solid or flexible, removable spring terminal block, 0.25...2.5 mm² flexible with ferrule single conductor, removable spring terminal block, 0.2...1.5 mm² solid or flexible twin conductor, removable spring terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel, removable spring terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel
    • Safety Reliability Data : PFHd = 1.61E-09 IEC 62061, PFHd = 1.61E-09 IEC 61508-1, SFF > 99% IEC 61508-1, MTTFd > 30 years ISO 13849-1, Dcavg >= 99 % ISO 13849-1, PFHd = 1.61E-09 ISO 13849-1, HFT = 1 IEC 62061, SFF > 99% IEC 62061, HFT = 1 IEC 61508-1, type = B IEC 61508-1
    • Connections Terminals3 : removable spring terminal block, 0.2...2.5 mm² solid or flexible, removable spring terminal block, 0.25...2.5 mm² flexible with ferrule single conductor, removable spring terminal block, 0.2...1.5 mm² solid or flexible twin conductor, removable spring terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel, removable spring terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel
    • Ie Rated Operational Current5 : 5 A AC-1 for normally open relay contact, 3 A AC-15 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A DC-13 for normally open relay contact
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1811003EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • Electrical Circuit Type : addition to Preventa XPSU base module
    • Function Of Module : safety output extension
    • Mounting Support : 35 mm symmetrical DIN rail
    • Package Weight Lbs : 303.000 g
    • Power Consumption In VA : 6.5 VA 240 V AC 50/60 Hz
    • Power Consumption In W : 2 W 48 V DC
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : safety module
    • Range Of Product : Harmony Safety Automation
    • Returnability : No
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 71 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Ith Conventional Free Air Thermal Current2 : 8 A
    • Ui Rated Insulation Voltage2 : 250 V 2)IEC 60947-1
    • Uimp Rated Impulse Withstand Voltage2 : 4 kV II IEC 60947-1
    • Us Rated Supply Voltage2 : 48...240 V AC/DC - 10...10 %
    • Medium Desc : Safety module, Harmony Safety Automation, Cat.4, Expansion use with Universal range, 48-240v AC/DC, spring
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP1811003EN
    • Database Version : 2023-02
    • Pep Verification Date : 2024-11-01
    • Pcr Version : PCR-4-ed4-EN-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : To monitor signals from a variety of different sensors/devices for safety-related interruption of safety-related electrical circuits at 100% for 10 years.
    • Functional Unit Unit : Unit
    • Energy Model Manufacturing A1 A3 2 : Indonesia, ID
    • Energy Model Installation A5 2 : Electricity Mix; Low voltage; 2018; Italy, IT
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2018; Italy, IT
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Low voltage; 2018; Italy, IT
    • Safety Module Application : for extending number of safety contacts
    • Safety Module Name : XPSUEP
    • Global Commercial Status : Commercialised
    • Ui Rated Insulation Voltage5 : 250 V 2)IEC 60947-1
    • Uimp Rated Impulse Withstand Voltage5 : 4 kV II IEC 60947-1
    • Us Rated Supply Voltage5 : 48...240 V AC/DC - 10...10 %
  • Environment Attributes Main
    • Take Back : No, Nej
    • EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP20 terminals)IEC 60529, IP40 housing)IEC 60529, IP54 mounting area)IEC 60529
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 70.76111850892809
    • Ambient Air Temperature For Storage : -25-85 °C
    • Circularity Profile : ENVEOLI1811003EN
    • Environmental Disclosure : ENVPEP1811003EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 5-95 % non-condensing
    • Pep Code : ENVPEP1811003EN
    • Pep Verification Date : 2024-11-01
    • Pcr Version : PCR-4-ed4-EN-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : safety module
    • Range Of Product : Harmony Safety Automation
  • Output Attributes
    • Minimum Output Current : 10 mA relay output
    • Minimum Output Voltage : 12 V relay output
  • Input Attributes
    • Input Compatibility : normally closed circuit ISO 14119, XC limit switch ISO 14119, mechanical contact ISO 14119, normally closed circuit ISO 13850, antivalent pair ISO 14119, OSSD pair IEC 61496-1-2, 3-wire proximity sensors PNP
    • Input Protection Type : internal, electronic
    • Number Of Inputs : 0 extension bus 24 V DC 5
    • Maximum Response Time On Input Open : 20 ms
  • Specifications
    • Country of Origin : Indonesia
    • Depth : 120 mm
