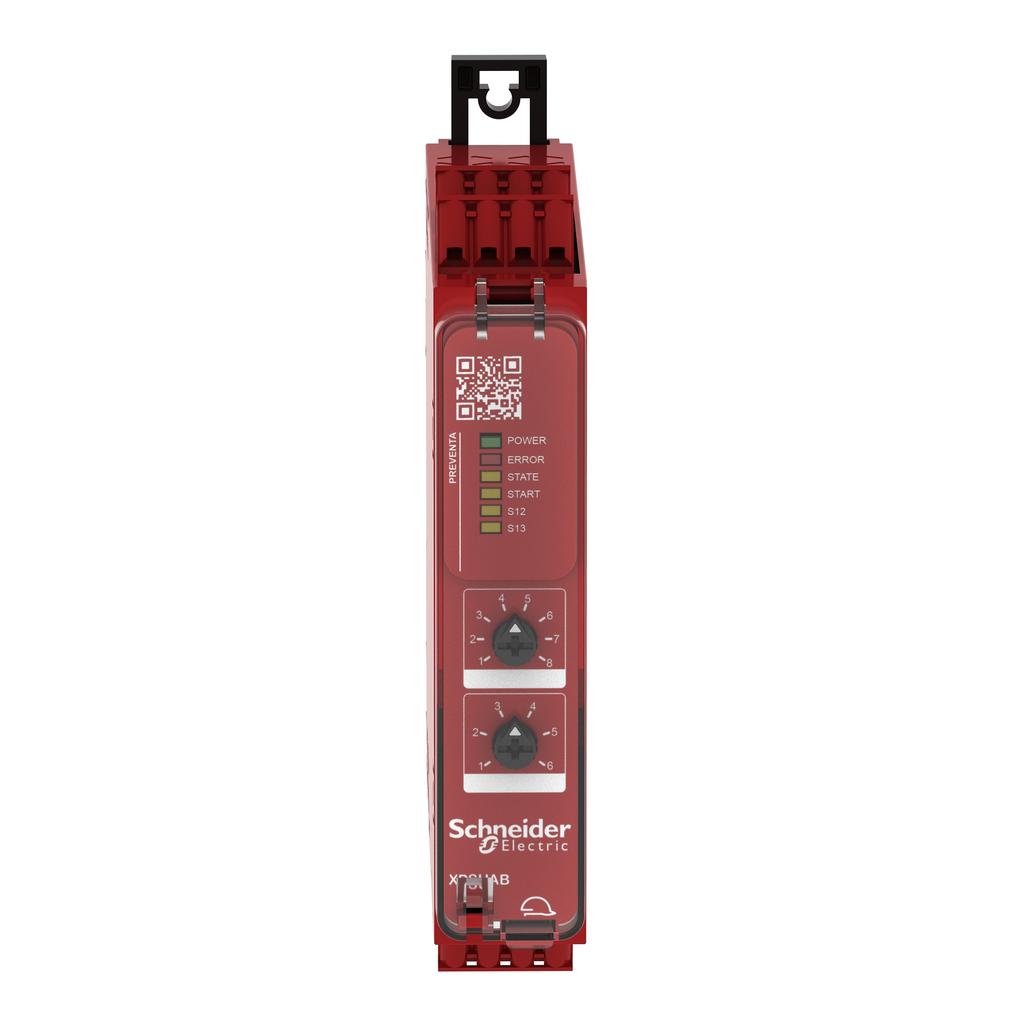

This safety relay is designed for monitoring Emergency stop, Antivalent contacts, Guard switch, Magnetic switch, Proximity safety switch, PNP sensor, RFID safety switch, Safety light curtain or Two-hand control stations. The safety relay is powered with

• Power Consumption In W
• 2.0 W 48 V DC
• US Rated Supply Voltage
• 48...240 V AC/DC - 10...10 %
• Minimum Output Current
• 10 mA relay output
• Safety Reliability Data
• MTTFd >= 30 years ISO 13849-1
• Dcavg < 60 % ISO 13849-1
• PFHd = 1177E-09 1/h ISO 13849-1
• HFT = 0 IEC 62061
• PFHd = 1177E-09 1/h IEC 62061
• PFHd = 1177E-0
• Connections Terminals
• removable spring terminal block, 0.2...2.5 mm² solid or flexible
• removable spring terminal block, 0.25...2.5 mm² flexible wi
• Input Output Type
• semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related
• semiconductor pulsed di
• IE Rated Operational Current
• 5 A AC-1 for normally open relay contact
• 3 A AC-15 for normally open relay contact
• 5 A D
• IP Degree Of Protection
• IP20 terminals)IEC 60529
• IP40 housing)IEC 60529
• IP54 mounting area)IEC 60529
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0 kg CO2 eq.
• 0.009617576371063023
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.5880583672425657
• 0.6 kg CO2 eq.
• Standards
• IEC 60947-5-1
• IEC 61508-1 functional safety standard
• IEC 61508-2 functional safety standard
• IEC 61508-3 functional safety standard
• IEC 61
• Safety Module Application
• for electrical monitoring of two-hand control stations
• for application with safety switchover contact
• for emergency stop, guard and light curtain monitoring
• monitoring antivalent contacts
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 5 kg CO2 eq.
• 4.774927990019941
• Input Compatibility
• normally closed circuit ISO 14119
• XC limit switch ISO 14119
• mechanical contact ISO 14119
• normally closed circuit ISO 13850
• antivale
• UI Rated Insulation Voltage
• 250 V 2)IEC 60947-1
• Accessories
• XPSES
• XPSEC
• Safety Level
• can reach PL = c ISO 13849-1
• can reach SILCL 1 IEC 62061
• can reach SIL 1 IEC 61508
• Power Consumption In VA
• 6.5 VA 240 V AC 50/60 Hz
• Number Of Inputs
• 1 safety input 24 V DC 5
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 65 kg CO2 eq.
• 64.56882742021409
• Number Of Outputs
• 2 on/off configurable pulsed output
• Relative Humidity
• 5-95 % non-condensing
• Minimum Output Voltage
• 15 V relay output
• Carbon Footprint Of The Distribution Phase A4
• 0.12484261047225693
• 0.1 kg CO2 eq.
• Associated Fuse Rating
• 6 A gG relay output IEC 60947-1
• Local Signalling
• LED (green) for power ON
• LED (red) for error
• LED (yellow) for start
• LED (yellow) for safety status
• LED (yellow) for sa
• UIMP Rated Impulse Withstand Voltage
• 4 kV II IEC 60947-1

• Assets
• CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001238_3D-CAD
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Manufacturing Carbon Footprint : 4.77492799001994
• Distribution Carbon Footprint : 0.124842610472257
• Installation Carbon Footprint : 9.61757637106302e-03
• Use Carbon Footprint : 64.5688274202141
• End Of Life Carbon Footprint : 0.588058367242566
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1811003EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1915
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Package Weight Lbs : 269.0 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : safety module
• Range Of Product : Harmony Safety Automation
• Returnability : Yes
• Safety Module Name : XPSUAB
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 70 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 70.06627396431992
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP1811003EN
• Pep Verification Date : 2024-11-01
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 269
• Functional Unit Description : To monitor signals from a variety of different sensors/devices for safety-related interruption of safety-related electrical circuits at 100% for 10 years.
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Reference Lifetime In Y : 10
• Energy Consumption On Product Lifetime In Kwh : 175.2
• Energy Model Manufacturing A1 A3 : Indonesia, ID
• Energy Model Installation A5 : Electricity Mix; Low voltage; 2018; Italy, IT
• Energy Model Use B6 : Electricity Mix; Low voltage; 2018; Italy, IT
• Energy Model End Of Life C1 C4 : Electricity Mix; Low voltage; 2018; Italy, IT
• Recyclability Potential In : 0
• Acidification Ap Mole Of H Equiv Total Life Cycle : 0.389868768298132
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.03905113724030494
• Acidification Ap Mole Of H Equiv Distribution A4 : 0.0005424934908204077
• Acidification Ap Mole Of H Equiv Installation A5 : 0.00003039063282629823
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.34987248429899453
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.00037226263518582873
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.15435889099337896
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.07019775486183596
• Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
• Climate Change Biogenics Kg Co2 Eq Installation A5 : -0.000001224773060107
• Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
• Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
• Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.04954972831903223
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.03461263258557088
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 69.91189523899753
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 4.7047104008290965
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.12484261047225693
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.00961880114412313
• Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 64.51927769189507
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.5534457346569949
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0
• Climate Change Total Kg Co2 Eq Total Life Cycle : 70.06627396431992
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 4.774927990019941
• Climate Change Total Kg Co2 Eq Distribution A4 : 0.12484261047225693
• Climate Change Total Kg Co2 Eq Installation A5 : 0.009617576371063023
• Climate Change Total Kg Co2 Eq Maintenance B2 : 0
• Climate Change Total Kg Co2 Eq Repair B3 : 0
• Climate Change Total Kg Co2 Eq Replacement B4 : 0
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 64.56882742021409
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.5880583672425657
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0032425888994081667
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0032388429395764254
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000000001073107117
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000000010199098622
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0000037476946562903
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : -0.00000000184754660649
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 1746.4755789304377
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 78.54203231484519
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 1.553346167909561
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.027091312617112975
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 1665.7475376108118
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0.6055715242538986
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 951.677009029966
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 84.6164831418888
• Ecotoxicity Fresh Water Ctue Distribution A4 : 0.5119908564771699
• Ecotoxicity Fresh Water Ctue Installation A5 : 0.336205666149361
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 702.67460844447
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 163.53772092098077
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : 0
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00000295024433707384
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00000021373679987258
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.00000000147249524486
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000000012642490607
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.00000273256498553992
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000000234363151041
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : 0
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.00000480568641072029
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.00000480568641072029
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.0002041574560417723
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.00001260369524412986
• Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000001461822632194
• Freshwater Eutrophication Kg P Eq Installation A5 : 0.00000001074764918972
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.00018636738852223397
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.00000516100639989681
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : 0
• Hazardous Waste Disposed Of Kg Total Life Cycle : 11.45876998436034
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 11.308708835176674
• Hazardous Waste Disposed Of Kg Distribution A4 : 0.00010343179426634664
• Hazardous Waste Disposed Of Kg Installation A5 : 0.0000134562444863287
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.14994426114491188
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : 0
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00000122371187996621
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000109292065337958
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000000176139721
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000000044638016168
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000000799897494006
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000012234411008768
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000051058456735229
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000019330245567276
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000000032972908482
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000000015319667197
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000030110046993366
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000001569871598908
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : 0
• Impacts Related To Land Use Soil Quality Total Life Cycle : 0.8469460844902852
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.06553017191006259
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0.7814159125802226
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 121.0472879673718
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 19.798552148047882
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.00027678709009288315
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.00002676367725835645
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 101.24821014856974
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.0002221199868318988
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.04467073638523883
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.0038278118246289185
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.00024929778265245337
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.00001409059211670272
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.04038750802640219
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.0001920281594385737
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : 0
• Materials For Energy Recovery Kg Total Life Cycle : 0.00000006291431196147
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0.00000006291431196147
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 0.00000129458494140992
• Materials For Recycling Kg Manufacturing A1 A3 : 0.00000129458494140992
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 0.10001445018893759
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.04604681421379523
• Net Use Of Fresh Water M3 Distribution A4 : 0.00014746715726121165
• Net Use Of Fresh Water M3 Installation A5 : 0.00013457242503694527
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.05339613562245776
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0002894607703864447
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : 0
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 8.812325287415728
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.970443766930668
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.00012706464067241733
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.05915945202750758
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 7.716221793322493
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.06637321049438656
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : 0
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00000106549429523522
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00000068836775323606
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00000011016745358106
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000000009230299005
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.00000026633633843351
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000000053044699453
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.14852657896258467
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.014716624908736447
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.0008857624157873763
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.0000345694254536366
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.13242898252525898
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.00046063968734825746
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : 0
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0015287399723801995
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.000660484052710362
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.00002482078632878981
• Radioactive Waste Disposed Of Kg Installation A5 : 0.00000015130484087792
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.0008416919282362579
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00000159190026391184
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : 0
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.6037761059561587
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.04085837534063898
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.00270139663029602
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.00014540362814405885
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.5581724483891352
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.0018984819679444547
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1.4708623606186666
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.4708623606186666
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 2045.0855302831833
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 82.13092194240576
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 1.5533563234347738
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.027157594075730027
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 1960.767666691539
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0.6064277317279462
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 298.60995135274584
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.588889627560566
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00001015552521277751
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.00006628145861704882
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 295.0201290807274
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0008562074740476145
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1.4708623606186666
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.4708623606186666
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1745.004716569819
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 77.07116995422649
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 1.553346167909561
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.027091312617112975
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1665.7475376108118
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.6055715242538986
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2.0349878670846393
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.0349878670846393
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 296.57496348566116
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.5539017604759262
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00001015552521277751
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.00006628145861704882
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 295.0201290807274
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0008562074740476145
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0.00000824529018181817
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.00000824529018181817
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Water Use M3 Eq Total Life Cycle : 4.285575162094315
• Water Use M3 Eq Manufacturing A1 A3 : 1.9676651969619507
• Water Use M3 Eq Distribution A4 : 0.006333714404369037
• Water Use M3 Eq Installation A5 : 0.0057798856553368
• Water Use M3 Eq Maintenance B2 : 0
• Water Use M3 Eq Repair B3 : 0
• Water Use M3 Eq Replacement B4 : 0
• Water Use M3 Eq Operational Energy Use B6 : 2.2933640249845606
• Water Use M3 Eq End Of Life C1 C4 : 0.012432340088097798
• Water Use M3 Eq Benefits Loads Beyond System Boundaries D : 0
• Air Pollution M3 Total Life Cycle : 0
• Air Pollution M3 Manufacturing A1 A3 : 0
• Air Pollution M3 Distribution A4 : 0
• Air Pollution M3 Installation A5 : 0
• Air Pollution M3 Maintenance B2 : 0
• Air Pollution M3 Repair B3 : 0
• Air Pollution M3 Replacement B4 : 0
• Air Pollution M3 Operational Energy Use B6 : 0
• Air Pollution M3 End Of Life C1 C4 : 0
• Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Water Pollution M3 Total Life Cycle : 0
• Water Pollution M3 Manufacturing A1 A3 : 0
• Water Pollution M3 Distribution A4 : 0
• Water Pollution M3 Installation A5 : 0
• Water Pollution M3 Maintenance B2 : 0
• Water Pollution M3 Repair B3 : 0
• Water Pollution M3 Replacement B4 : 0
• Water Pollution M3 Operational Energy Use B6 : 0
• Water Pollution M3 End Of Life C1 C4 : 0
• Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• General Attributes
• Product Or Component Type : safety module
• Range Of Product : Harmony Safety Automation
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=465471223&lang=en-us
• Take Back : No
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 70.0662739643199
• Circularity Profile : ENVEOLI1811003EN
• Environmental Disclosure : ENVPEP1811003EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1811003EN
• Pep Verification Date : 2024-11-01
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Specifications
• Country of Origin : Indonesia
